Front Hood Damper Stay

When performing inspection or general maintenance, install the damper stay to the normal position.
CAUTION: When performing inspection or general maintenance, do not remove the damper stay.

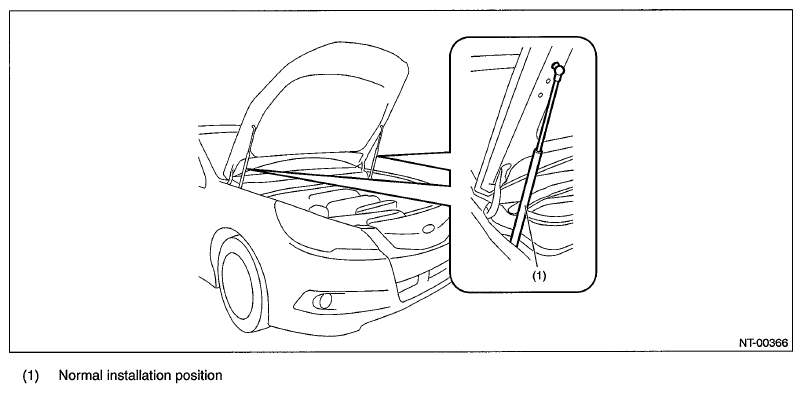

Fig 1: Identifying Front Hood Damper Stay
Courtesy of SUBARU OF AMERICA, INC.
When front hood needs to open wider, set the damper stay into the hole of lower hood as shown in the figure below.
Tightening torque:

Ref. to FRONT HOOD , COMPONENT, General Description.
CAUTION:
- Always perform inspection and general maintenance works with both damper stays attached.
- Do not keep detaching the damper stay on one side.
- The hood cannot be closed with the hood dumper at the full open position. When closing the hood, tie the hood striker and radiator panel and secure them.
- After work, make sure to return the damper stay to normal installation position and tighten the bolt to the specified torque.

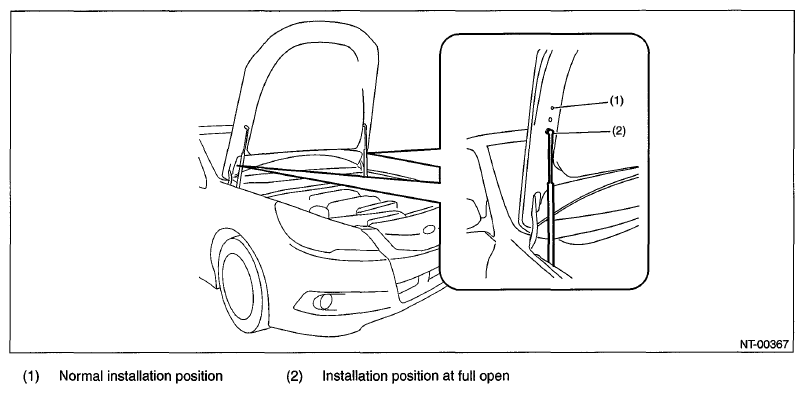

  Fig 2: Identifying Front Hood Damper Stay (Normal And Full Open)
  Courtesy of SUBARU OF AMERICA, INC.
