Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

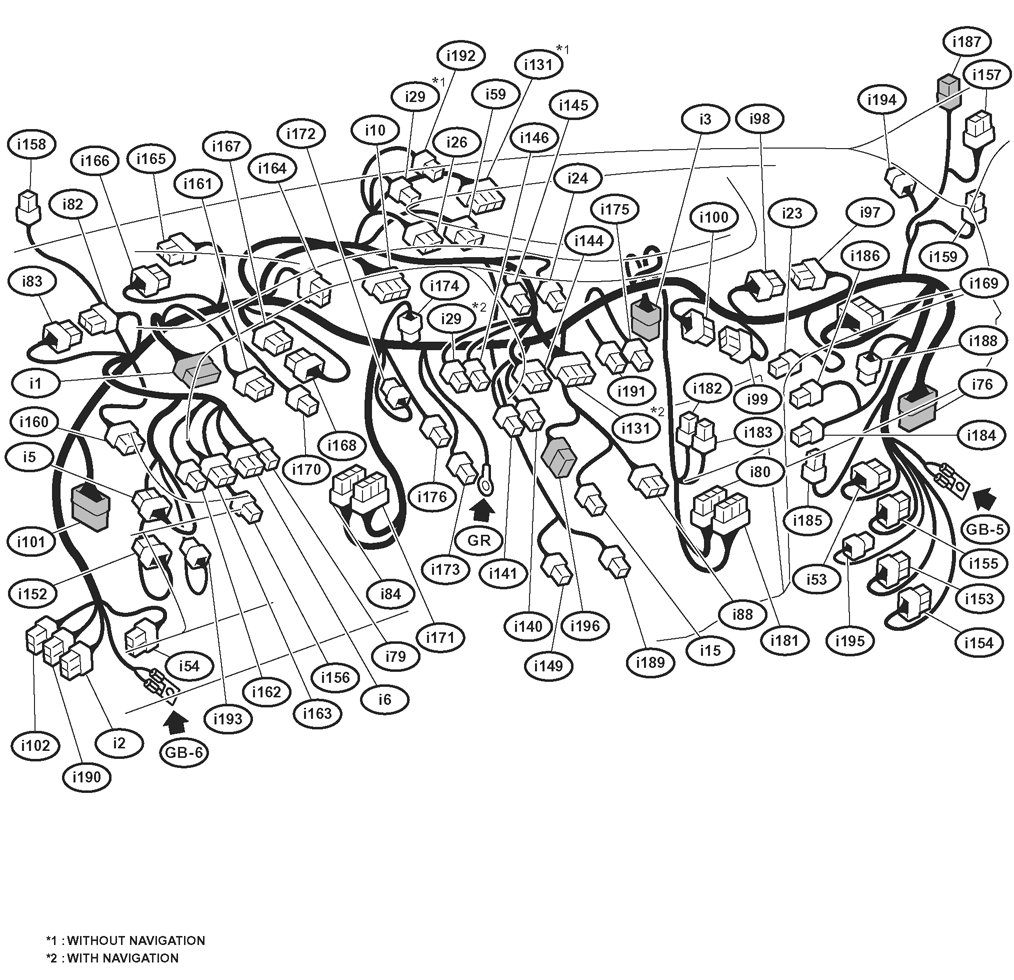

| A/C Control Module (i80) | Behind right side of dash. See Figure. |
| Airbag Control Module (AB6) | Under center console. See Figure. |
| Airbag Control Module LH (Sedan) (AB17) | Under rear of center console. See Figure. |
| Airbag Control Module RH (Sedan) (AB18) | Under rear of center console. See Figure. |
| Airbag Control Module (Wagon) (AB17) | Under rear of center console. See Figure. |
| Airbag Control Module (Wagon) (AB18) | Under rear of center console. See Figure. |

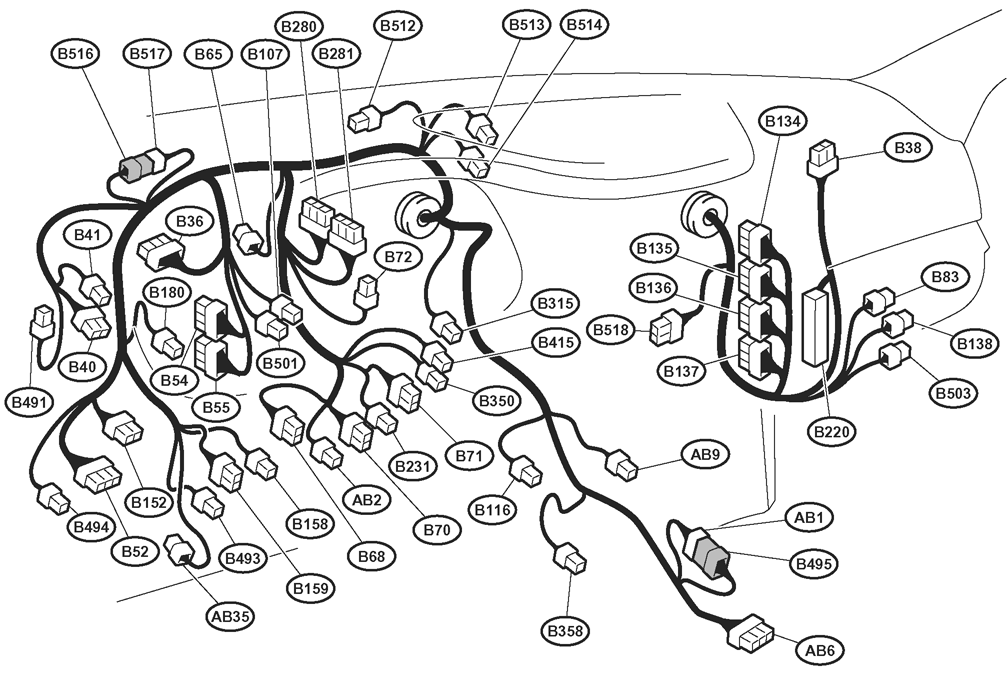

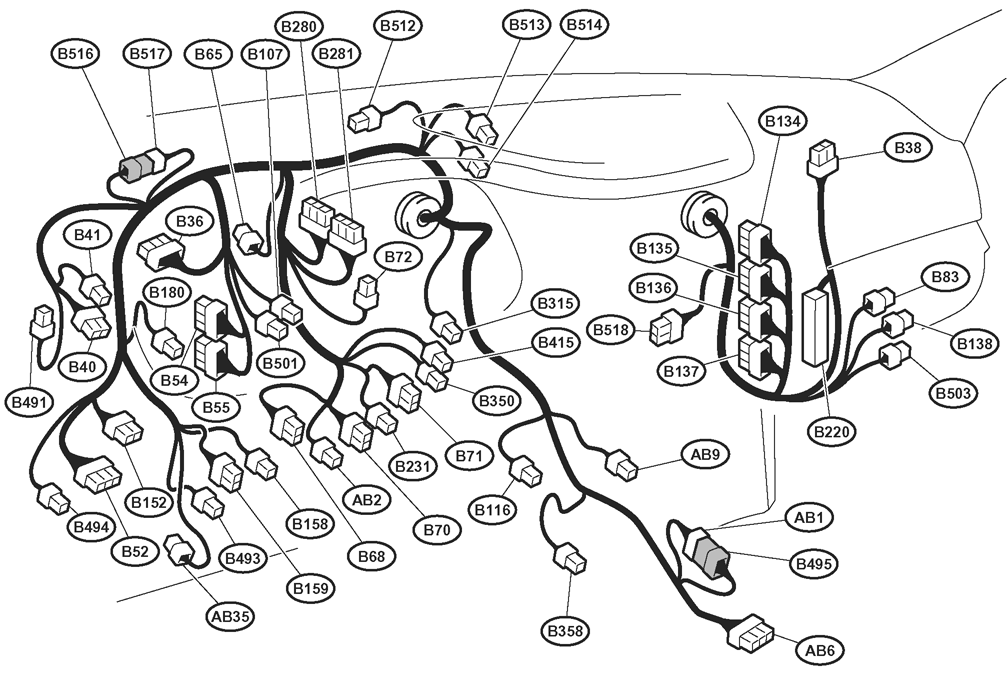

| Body Integrated Unit (B280 & B281) | Center of dash. See Figure. |
| ECM (B134, B135, B136 & B137) | Behind Glove Box Lid Assembly See Figure. |

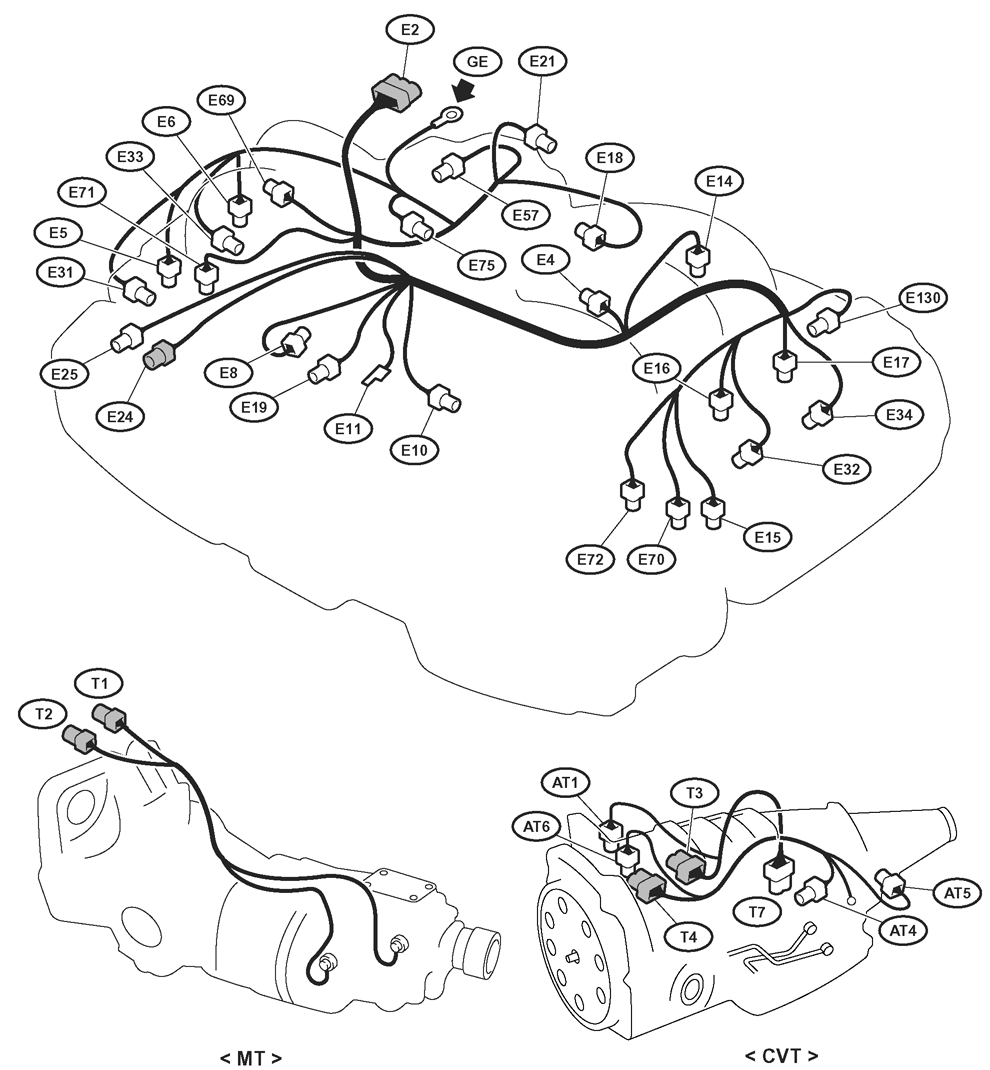

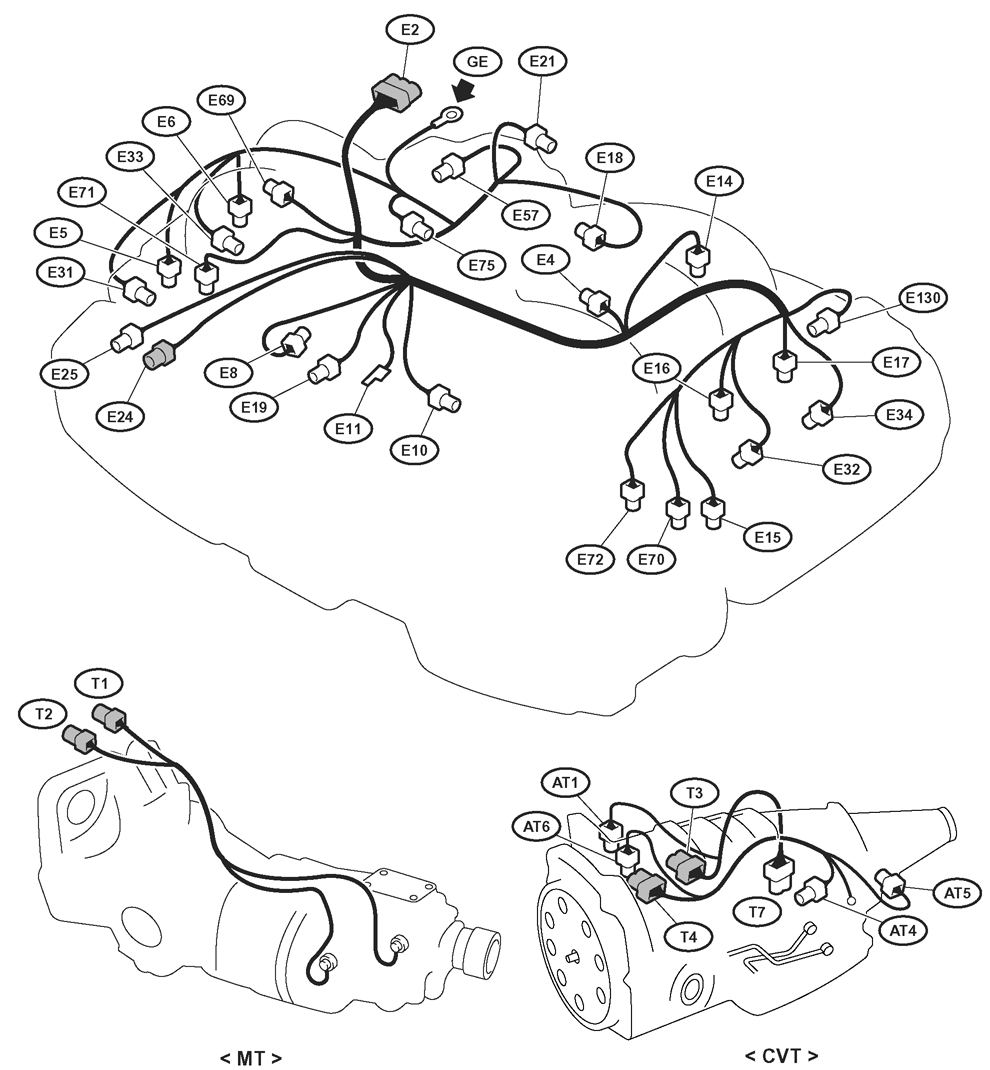

| Electronic Throttle Control (2.5L Non-Turbo) (E57) | Rear of engine. See Figure. |

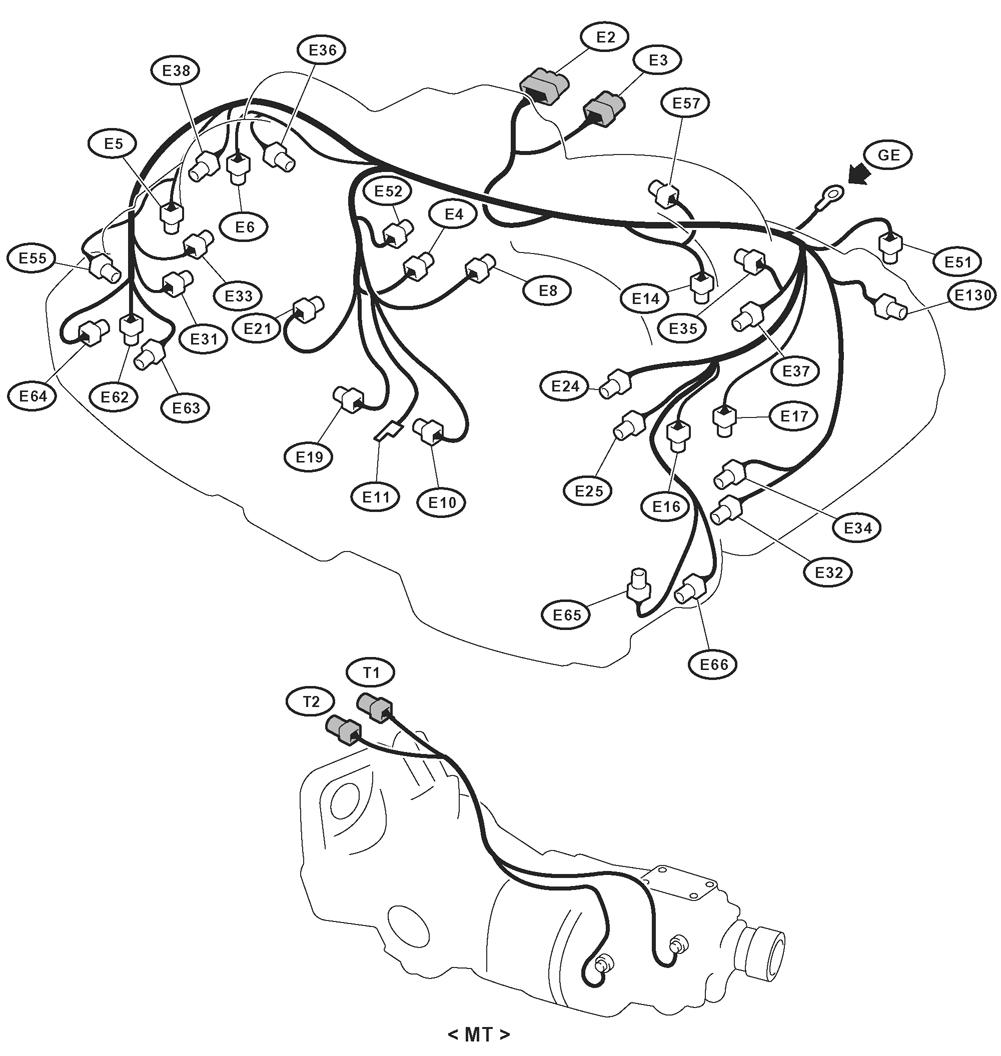

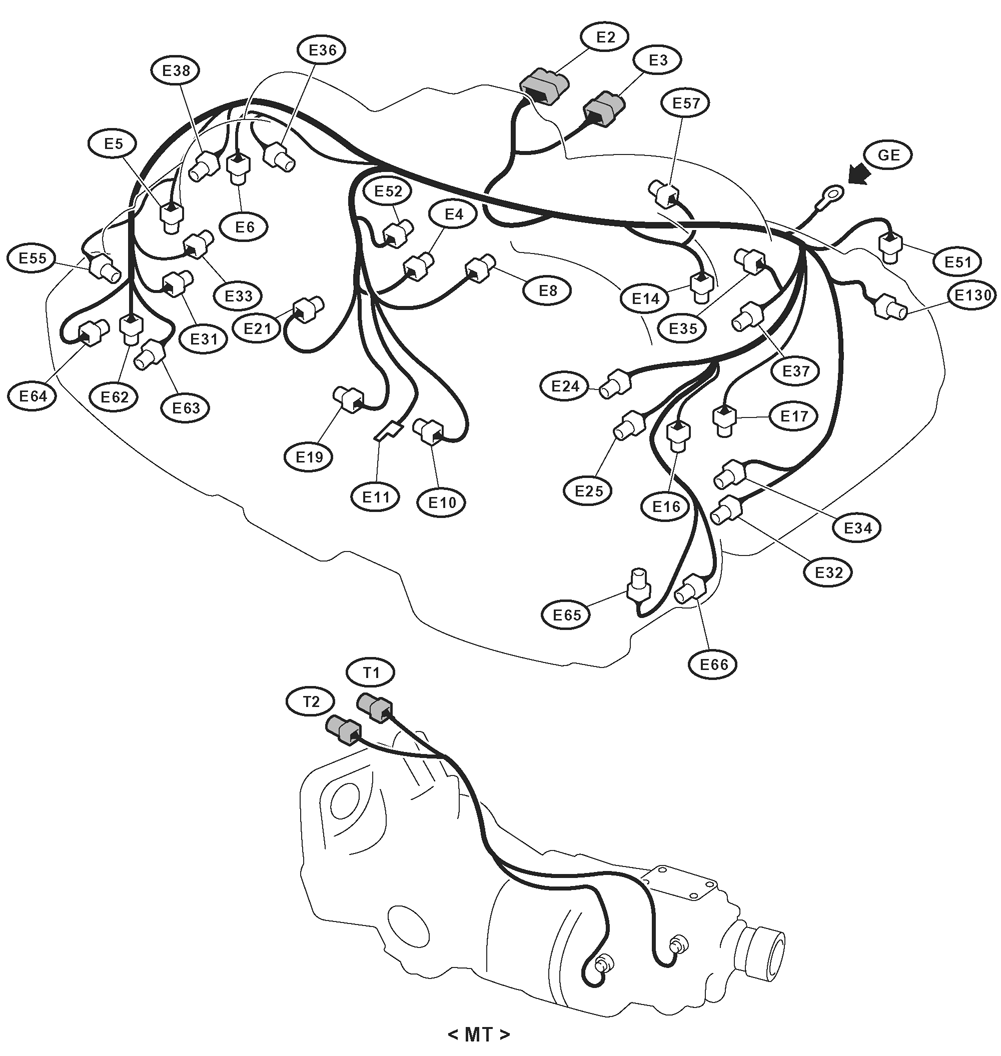

| Electronic Throttle Control (2.5L Turbo) (E57) | Rear of engine. See Figure. |

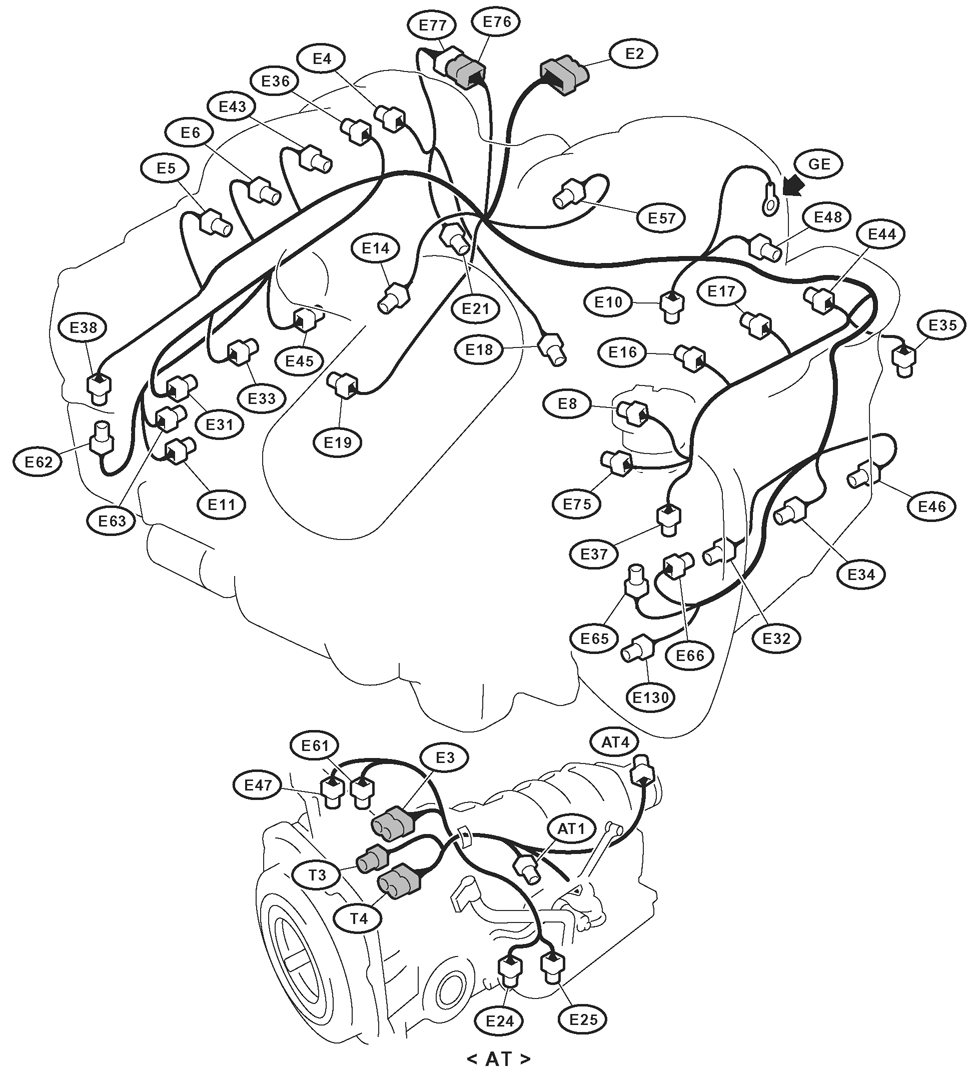

| Electronic Throttle Control (3.6L) (E57) | Rear of engine. See Figure. |

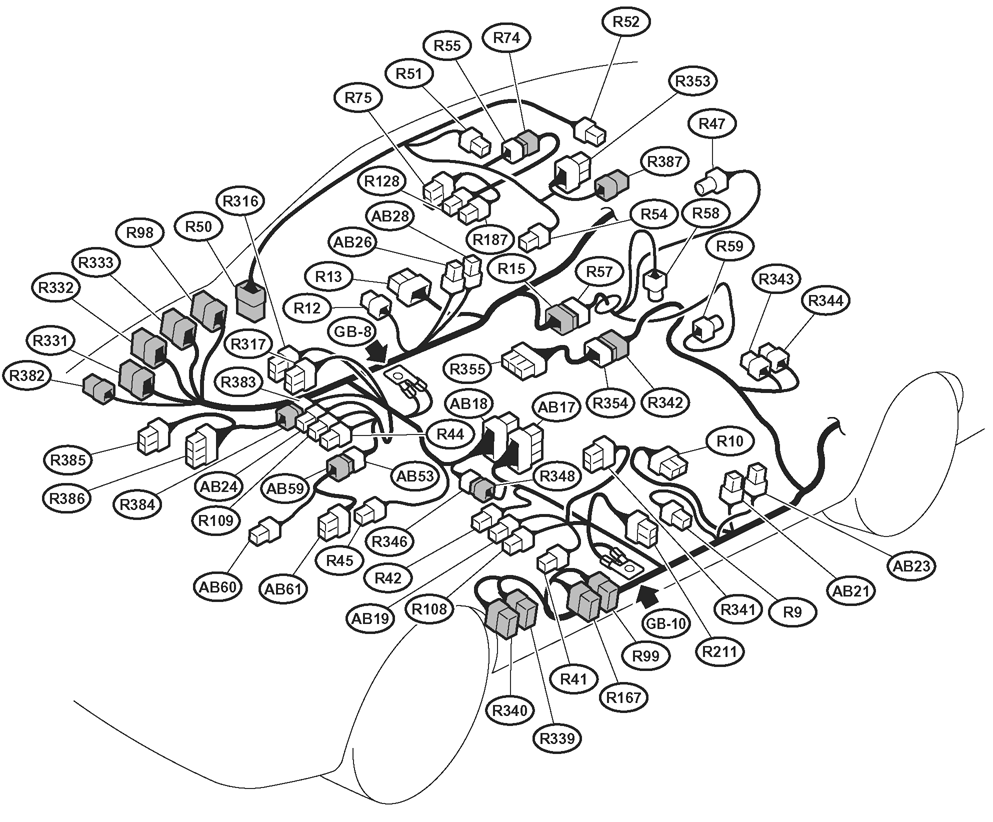

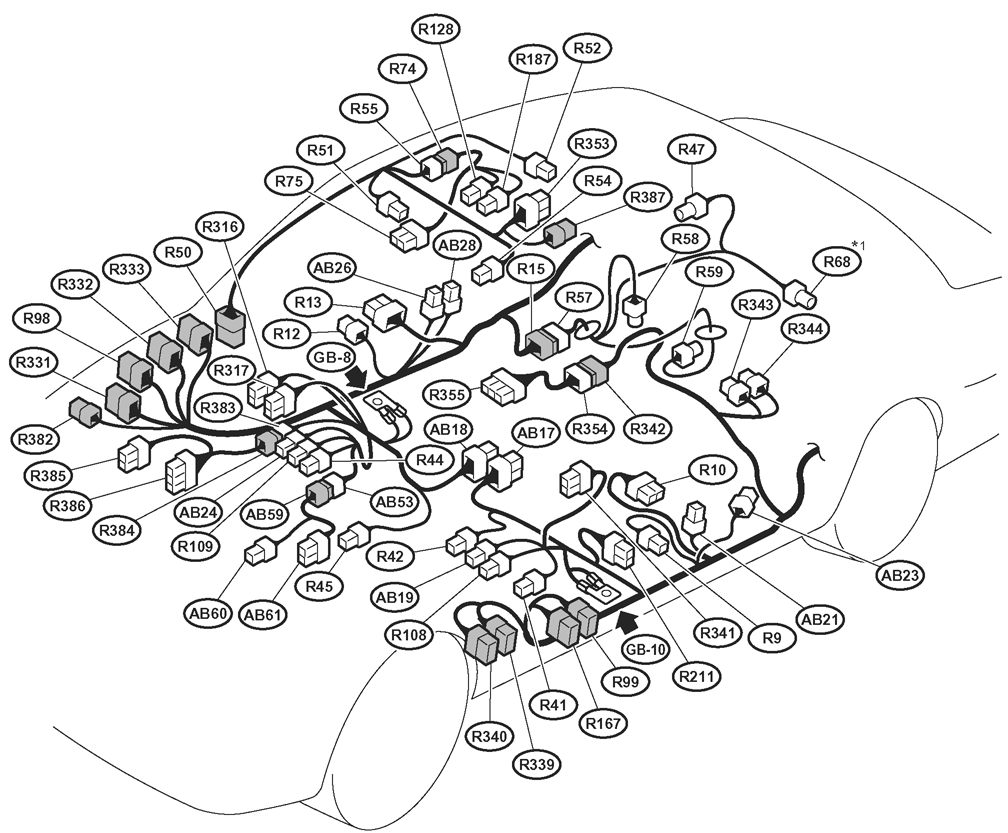

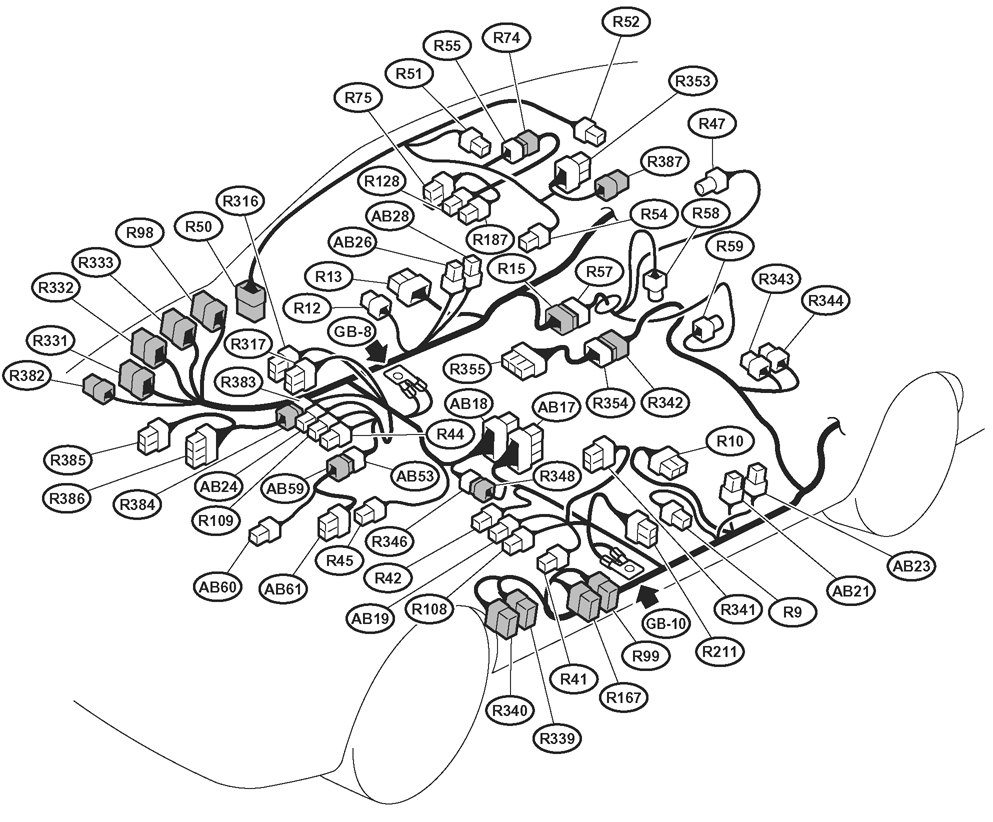

| EPB Control Module (Sedan) (R355) | Under rear seat. See Figure. |
| EPB Control Module (Wagon) (R355) | Under rear seat. See Figure. |

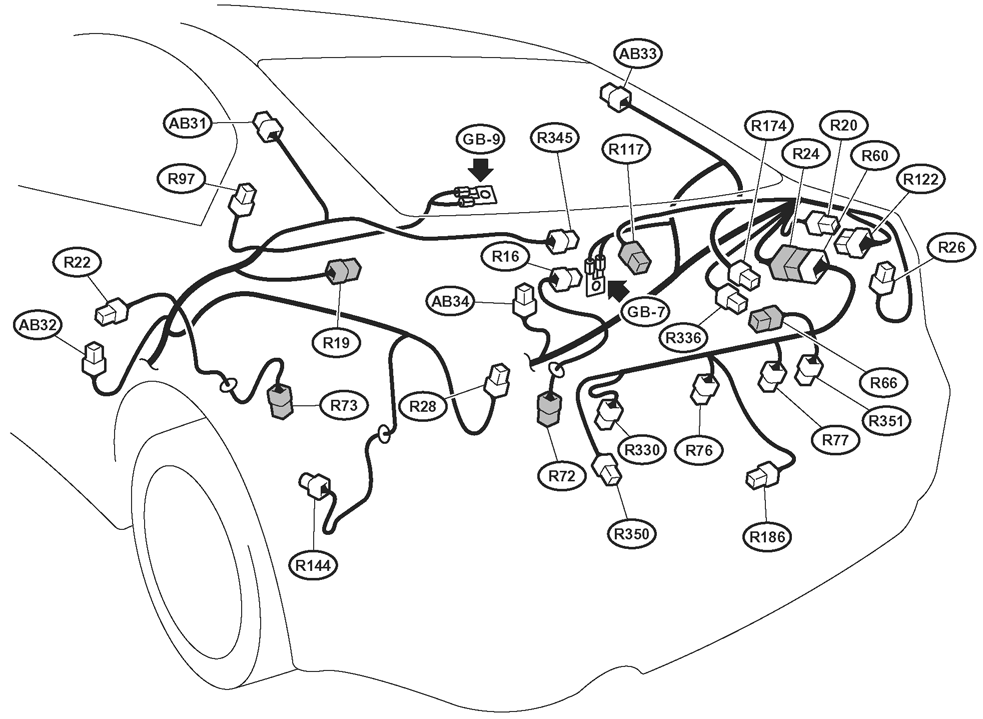

| Fuel Pump Control Unit (Sedan) (R122) | Right side of luggage compartment. See Figure. |
| Fuel Pump Control Unit (Wagon) (R122) | Right quarterpanel. See Figure. |

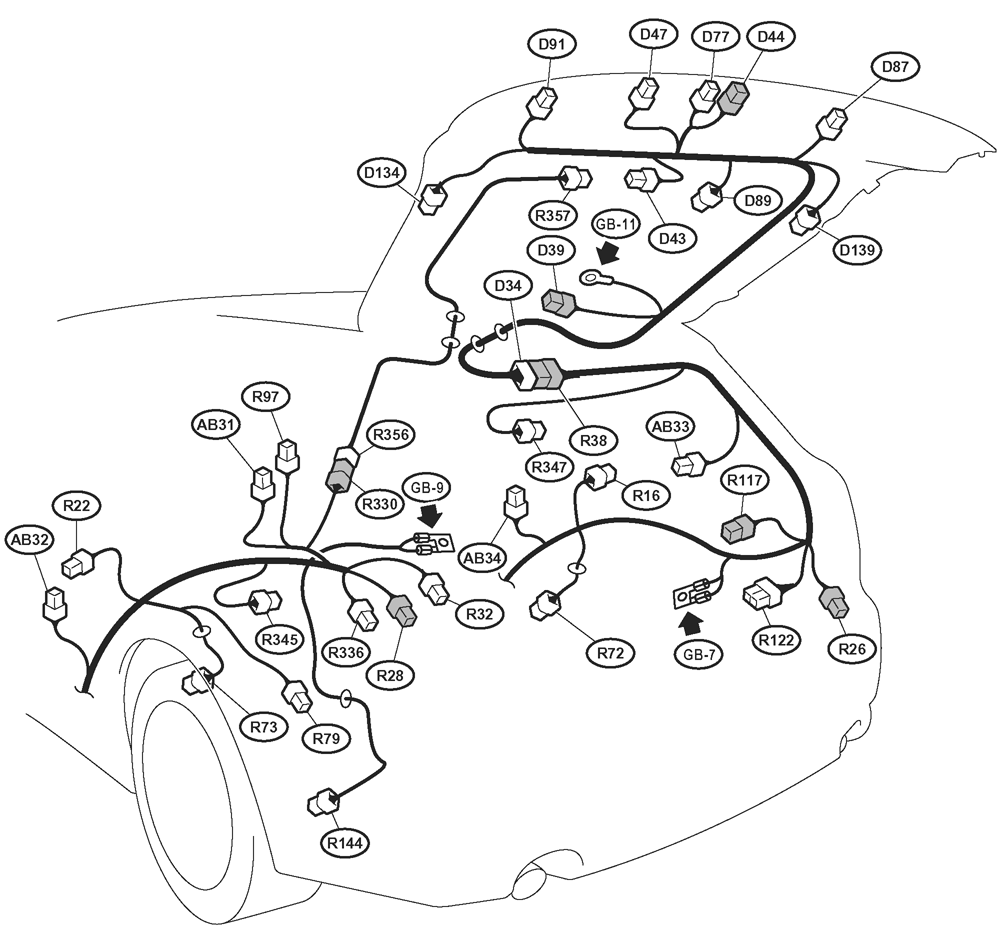

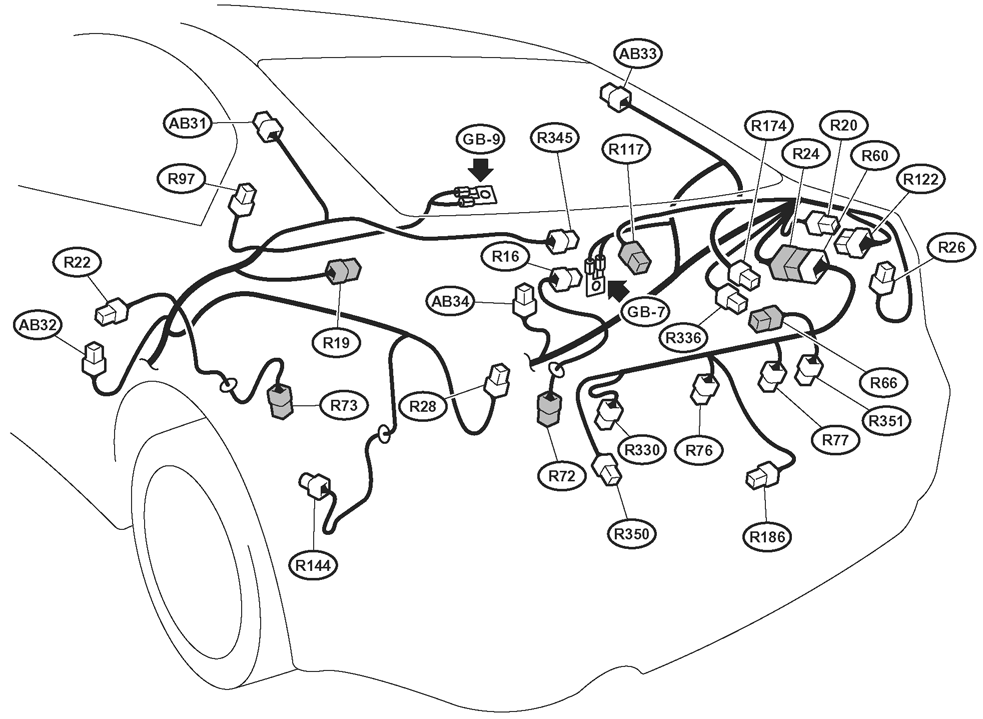

| Keyless Entry Control Module (Sedan) (R345) | Center front of luggage compartment. See Figure. |
| Keyless Entry Control Module (Wagon) (R345) | Left "D" pillar. See Figure. |
| Occupant Detection Control Module (Sedan) (AB61) | Under front passenger's seat. See Figure. |
| Occupant Detection Control Module (Wagon) (AB61) | Under front passenger's seat. See Figure. |

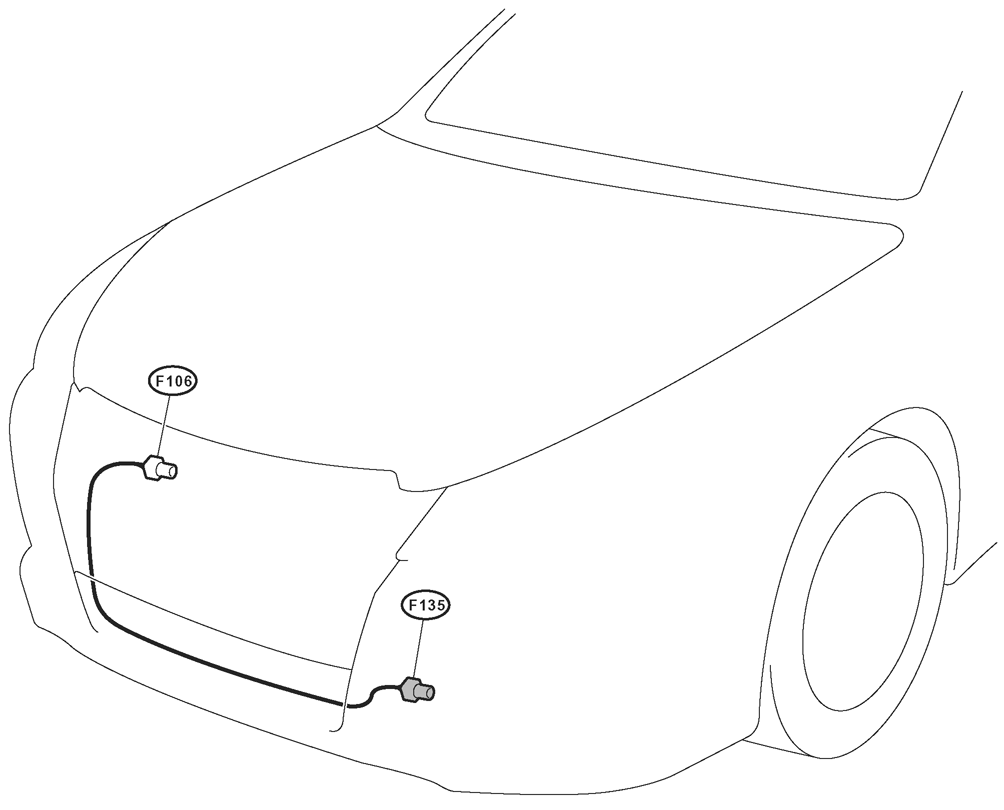

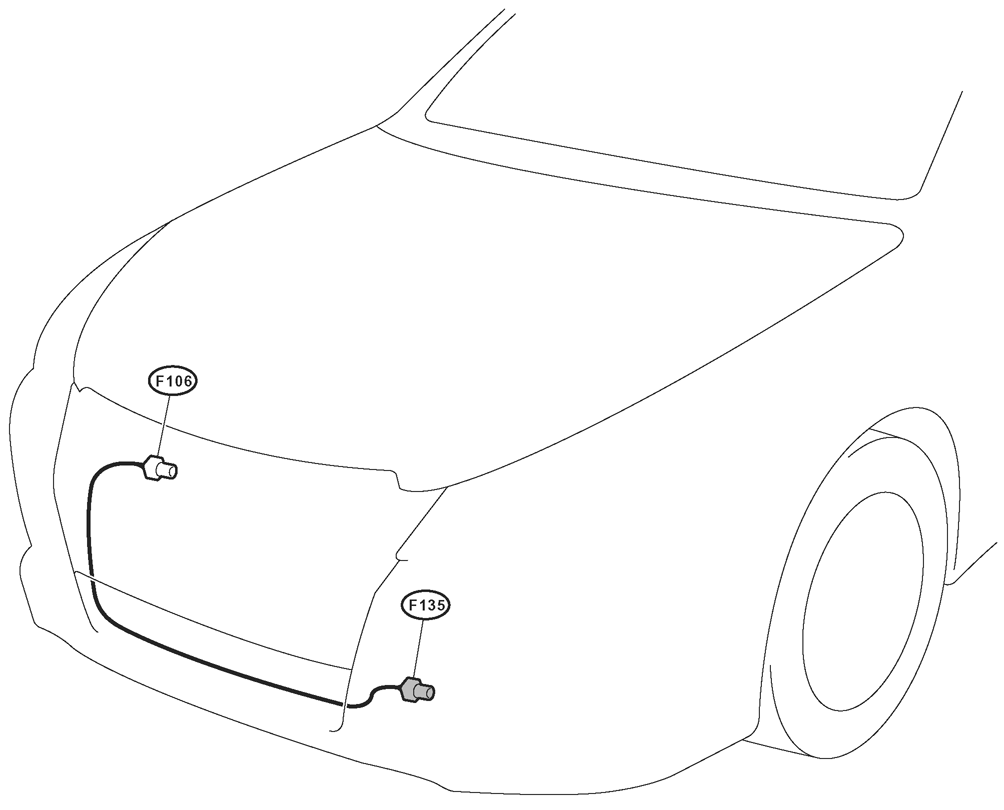

| Radiator Fan Control Module (F106) | Right front of engine compartment. See Figure. |
| Remote Engine Start Control Module (B180) | Left side of dash. See Figure. |
| Security Control Module (B518) | Right kick panel. See Figure. |
| TCM (B54 & B55) | Left side of dash. See Figure. |
| TPMS Control Module (Sedan) (R211) | Under driver's seat. See Figure. |
| TPMS Control Module (Wagon) (R211) | Under driver's seat. See Figure. |
| Turn Signal & Hazard Unit (i170) | Left side of dash. See Figure. |

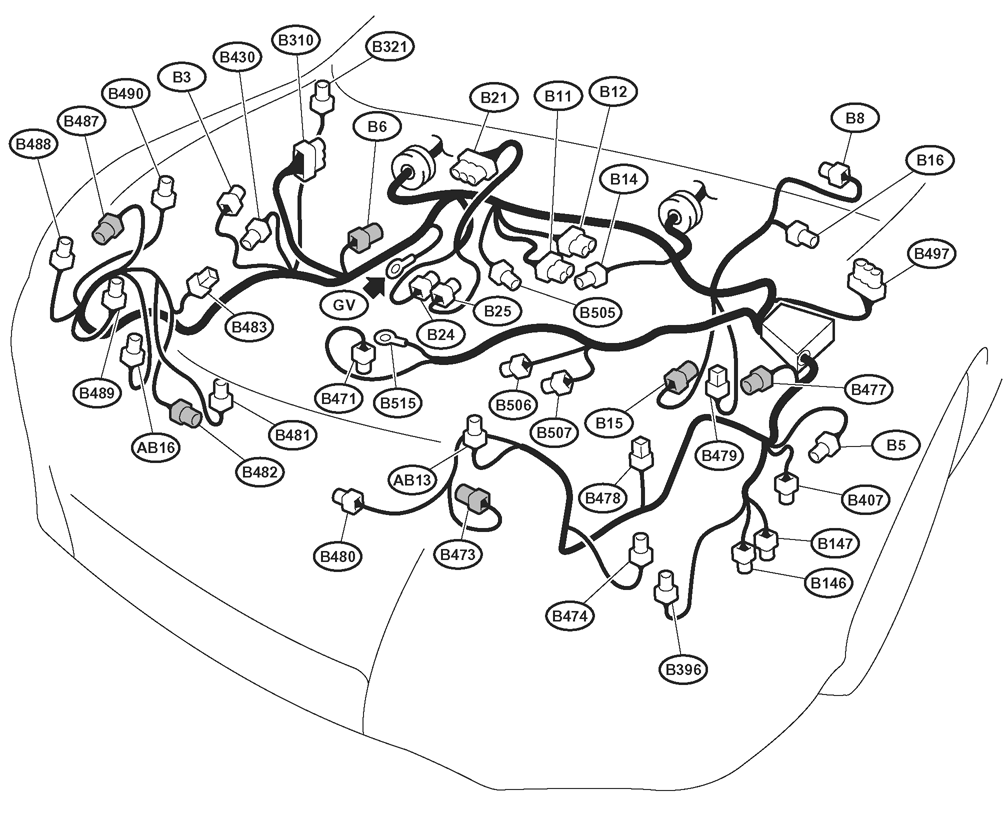

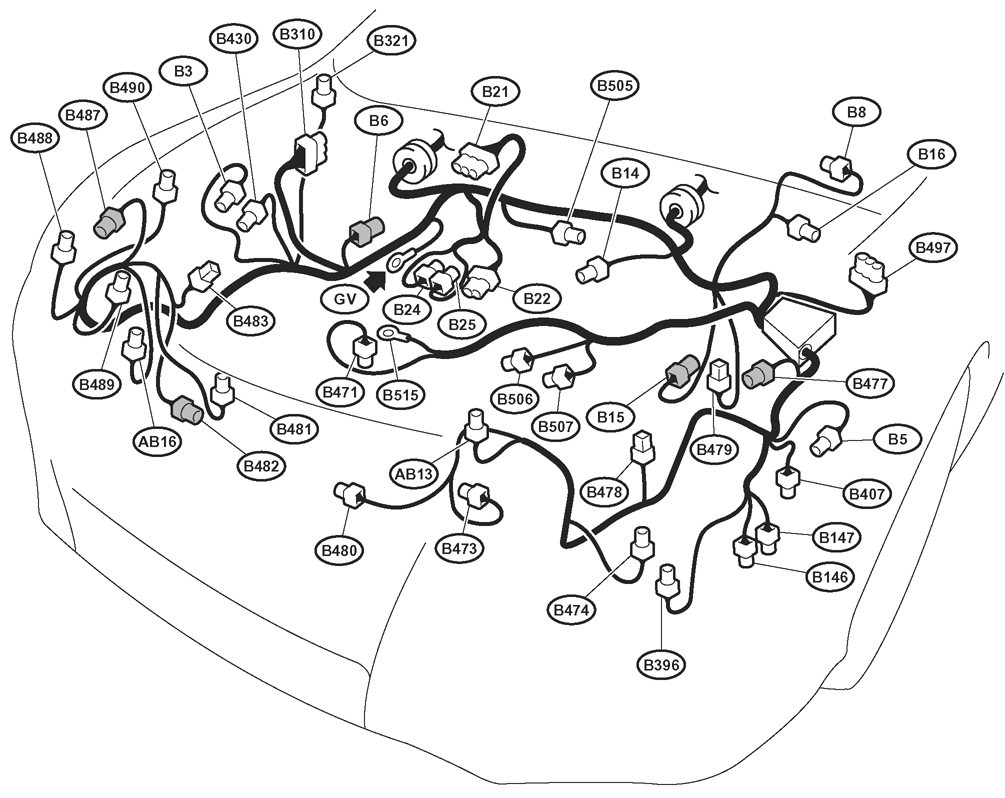

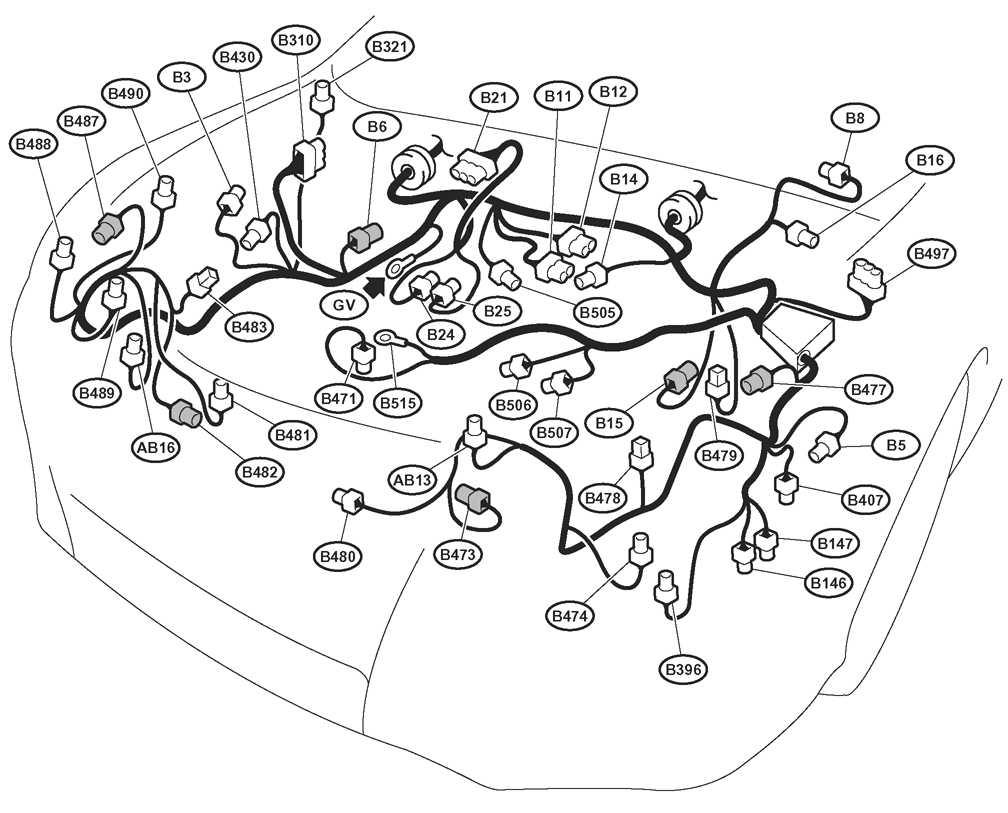

| VDC Control Module (2.5L) (B310) | Right rear corner of engine compartment. See Figure. |

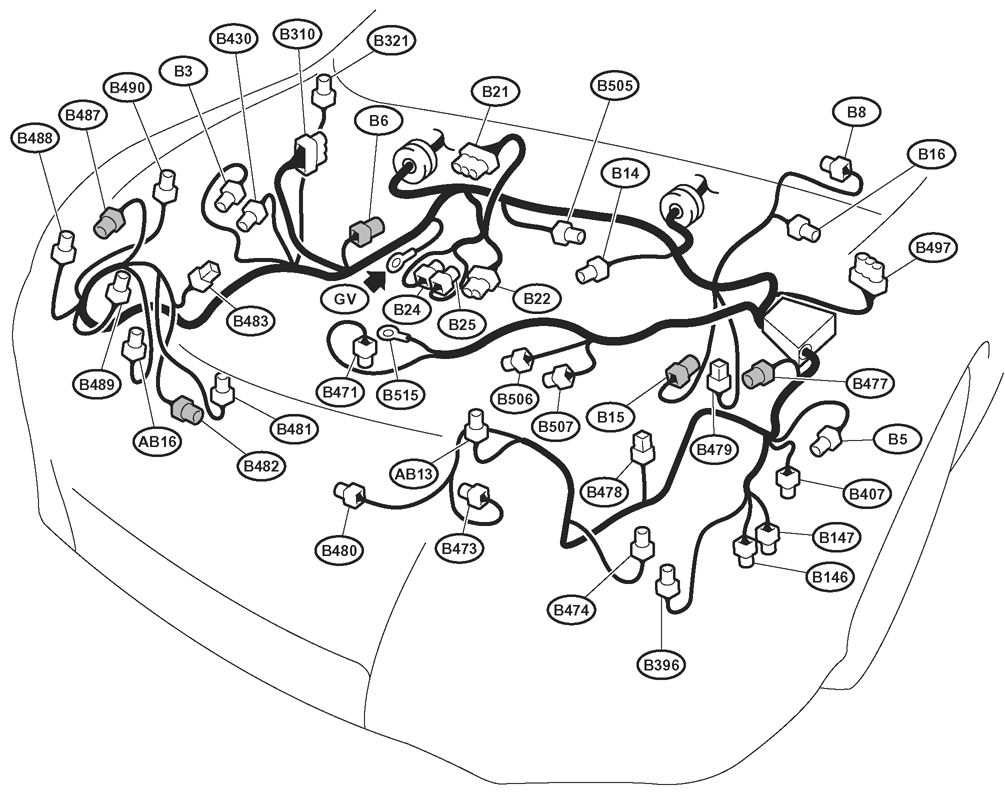

| VDC Control Module (3.6L) (B310) | Right rear corner of engine compartment. See Figure. |
