Components With Torque Specifications

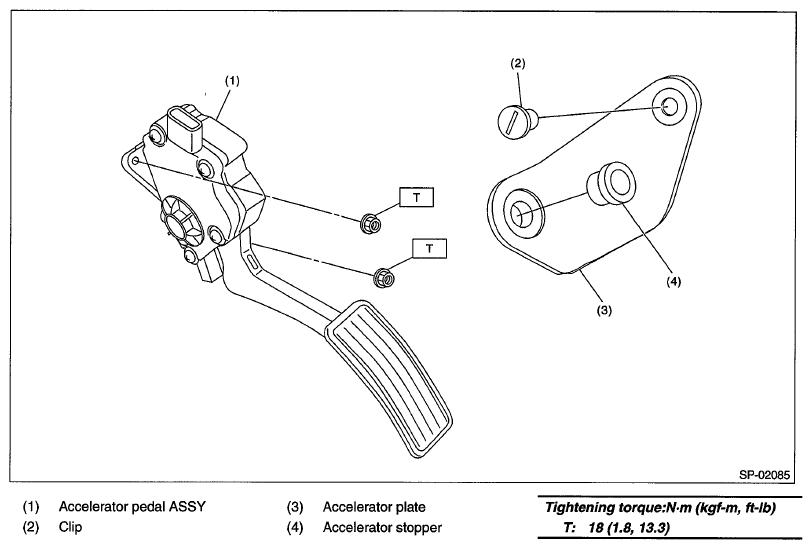

Fig 1: Accelerator Pedal Assembly, Accelerator Plate And Accelerator Stopper With Torque Specifications
G06648601Courtesy of SUBARU OF AMERICA, INC.
