Differential Case Assembly

Remove the taper roller bearing using the ST and the press.
ST 498077000 REMOVER

Fig 1: Identifying Taper Roller Bearing
Courtesy of SUBARU OF AMERICA, INC.
Secure the case in a vise, remove the hypoid driven gear tightening bolts, and then separate the hypoid driven gear into case (RH) and case (LH).

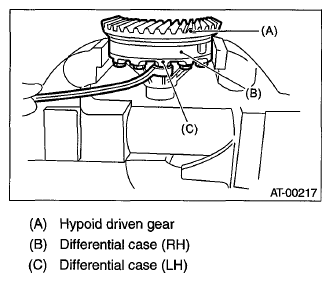

Fig 2: Securing Case In Vise
Courtesy of SUBARU OF AMERICA, INC.
Pull out the straight pin and shaft, and then remove the differential bevel gear, washer and differential bevel pinion.

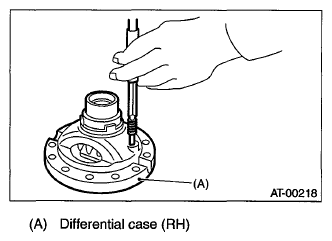

Fig 3: Pulling Out Straight Pin And Shaft
Courtesy of SUBARU OF AMERICA, INC.
