Front Differential Assembly: Installation

  1. When installing the front differential assembly to the case, be careful not to damage the inside of case (particularly, the differential side retainer mating surface).

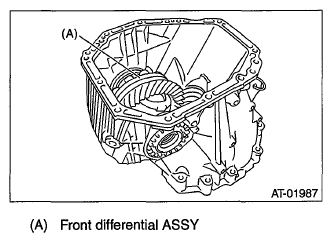

    Fig 1: Identifying Front Differential Assembly
    G06652126Courtesy of SUBARU OF AMERICA, INC.
  2. Install the O-ring to left and right side retainers.
  3. Using the ST, install the side retainer. Ref. to ADJUSTMENT , Front Differential Assembly.

    ST 18630AA010 WRENCH COMPL RETAINER

  4. Adjust the backlash of the front differential. Ref. to ADJUSTMENT , Front Differential Assembly.
  5. Install the lock plate.

    Tightening torque:

    25 N.m (2.5 kgf-m, 18.4 ft-lb)

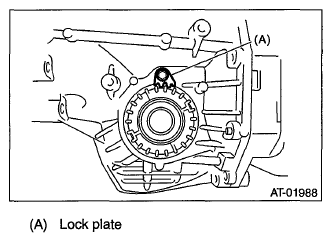

    Fig 2: Identifying Lock Plate
    G06652127Courtesy of SUBARU OF AMERICA, INC.
  6. Install the converter case to the transmission case. Ref. to INSTALLATION , Converter Case.
  7. Install the transmission harness connector to the stay.
  8. Install the ATF cooler pipe. Ref. to INSTALLATION , ATF Cooler Pipe and Hose.
  9. Install the torque converter assembly. Ref. to INSTALLATION , Torque Converter Assembly.
  10. Install the transmission assembly to the vehicle. Ref. to INSTALLATION , Automatic Transmission Assembly.
