Oil Charge Pipe: Installation

Install the oil charge pipe.
NOTE: Use new gaskets and O-rings.

Tightening torque:

38 N.m (3.9 kgf-m, 28.0 It-lb)

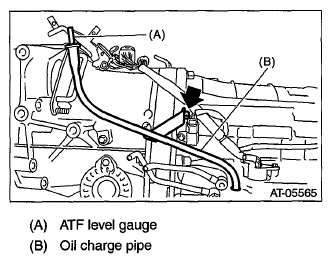

Fig 1: Identifying Oil Charge Pipe
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the turbine speed sensor 1.
Install the front exhaust pipe. Ref. to INSTALLATION , Front Exhaust Pipe.
Install the under cover. Ref. to INSTALLATION , Front Under Cover.
Lower the vehicle.
Connect the ground cable to battery.
