Reduction Driven Gear: Disassembly

Remove the ball bearing from reduction driven gear using ST.
ST 498077300 REMOVER

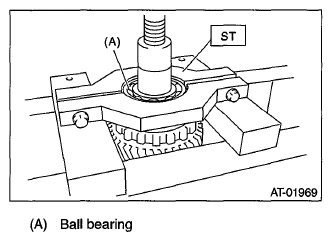

Fig 1: Identifying ST 498077300 Remover
Courtesy of SUBARU OF AMERICA, INC.
Remove the ball bearing on the reverse side with the same procedure as step 1).
ST 498077300 REMOVER

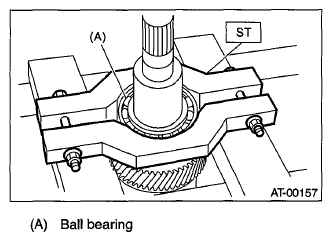

Fig 2: Identifying ST 498077300 Remover
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring of the parking gear.

Fig 3: Identifying Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the parking gear.
ST 18767AA000 REMOVER

Fig 4: Identifying ST 18767AA000 Remover
Courtesy of SUBARU OF AMERICA, INC.
