Transmission Control Module (TCM): Removal

  1. Disconnect the ground cable from battery.
  2. Remove the instrument panel lower cover. Ref. to REMOVAL , Instrument Panel Lower Cover.
  3. Disconnect the connector from TCM.

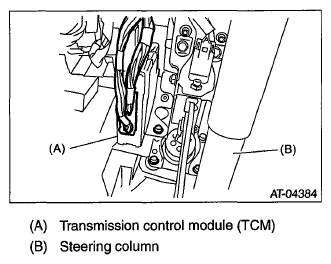

    Fig 1: Identifying TCM And Steering Column
    G06652021Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the TCM.
    NOTE: Replace the TCM and bracket as a set.
