MT Gear Shift Lever: Removal

Set the vehicle on a lift.
Disconnect the ground cable from battery.
Lift up the vehicle.
Remove the center exhaust pipe and rear exhaust pipe, (non-turbo model) Ref. to REMOVAL , Center Exhaust Pipe. Ref. to REMOVAL , Rear Exhaust Pipe.
Remove the center exhaust pipe (rear) and rear exhaust pipe, (turbo model) Ref. to REMOVAL , Center Exhaust Pipe. Ref. to REMOVAL , Rear Exhaust Pipe.
Remove the heat shield cover.

Fig 1: Identifying Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate cable assembly.

Fig 2: Locating Plate Cable Bolts
Courtesy of SUBARU OF AMERICA, INC.

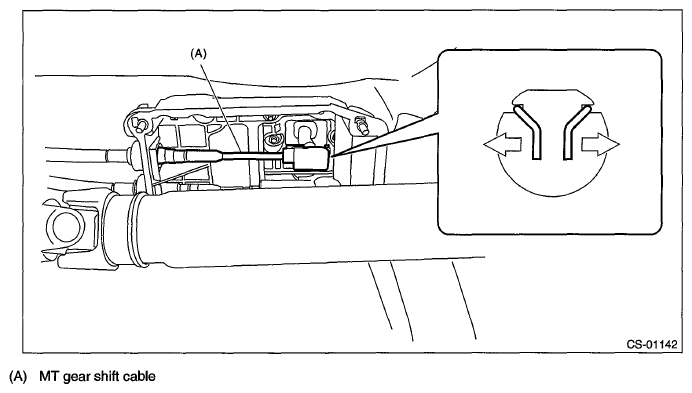

Remove the spring at the MT gear shift cable by expanding it and pulling down, and remove the MT gear shift cable from the gear shift lever assembly.
CAUTION: Be careful not to deform the cable inner.

Fig 3: Identifying MT Gear Shift Cable
Courtesy of SUBARU OF AMERICA, INC.

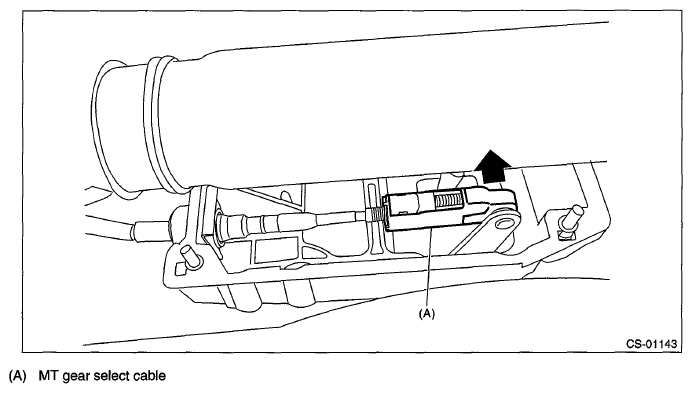

Remove the MT gear select cable from the gear shift lever assembly by pulling it in the direction of arrow in the figure.
CAUTION: Be careful not to deform the cable inner.

Fig 4: Identifying MT Gear Shift Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the cover cable assembly.

Fig 5: Locating Cover Cable Assembly Bolts
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove the gear shift knob.
Remove the console front cover assembly and console box. Ref. to REMOVAL , Console Box.
Remove the bolts, and then remove the gear shift lever assembly from the vehicle.
NOTE: The MT gear shift lever cannot be disassembled.

Fig 6: Locating Gear Shift Lever Assembly Bolts
Courtesy of SUBARU OF AMERICA, INC.
