Indicator ASSY

  1. Disconnect the harness connector from the console front cover assembly.
    Fig 1: Locating Harness Connector
    G06651741Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the four screws and remove the indicator assembly from the console front cover assembly.

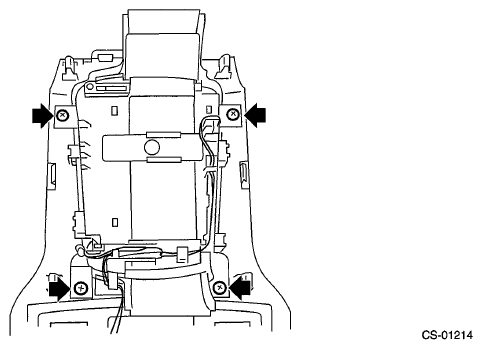

    Fig 2: Locating Console Front Cover Assembly Screws
    G06651742Courtesy of SUBARU OF AMERICA, INC.
