Select Lever: Removal

Set the vehicle on a lift.
Shift the select lever to "N" range.
Disconnect the ground cable from battery.
Lift up the vehicle.
Remove the rear exhaust pipe.
- 2.5 L non-turbo model
  Ref. to REMOVAL , Rear Exhaust Pipe.
- 3.6 L model
  Ref. to REMOVAL , Rear Exhaust Pipe.
Remove the heat shield cover.

Fig 1: Identifying Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the cable from arm assembly.

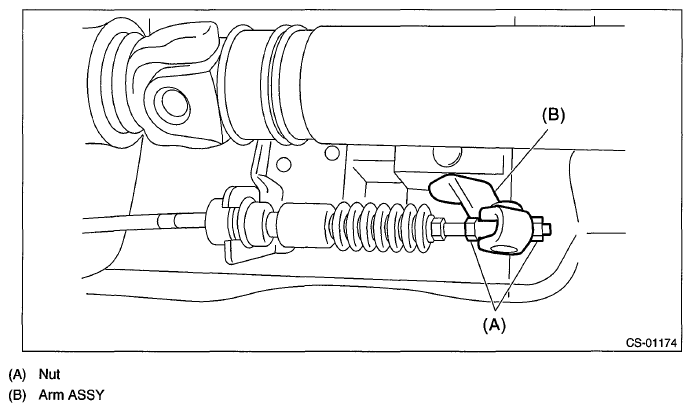

Fig 2: Identifying Cable And Arm Assembly
Courtesy of SUBARU OF AMERICA, INC.
Raise the claw of the clamp and remove the cable.

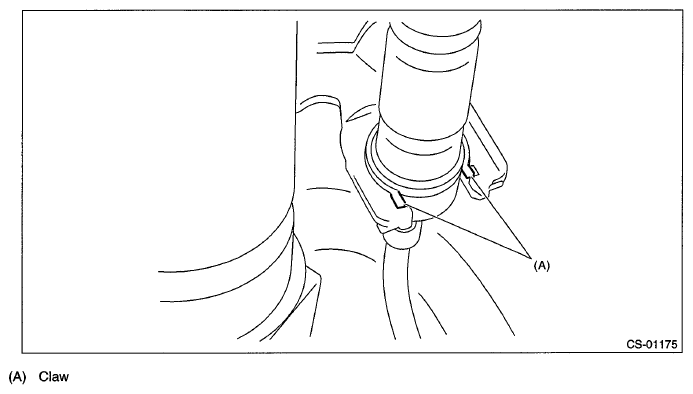

Fig 3: Identifying Cable Claw
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Lower the cover grip AT vertically toward the lever.

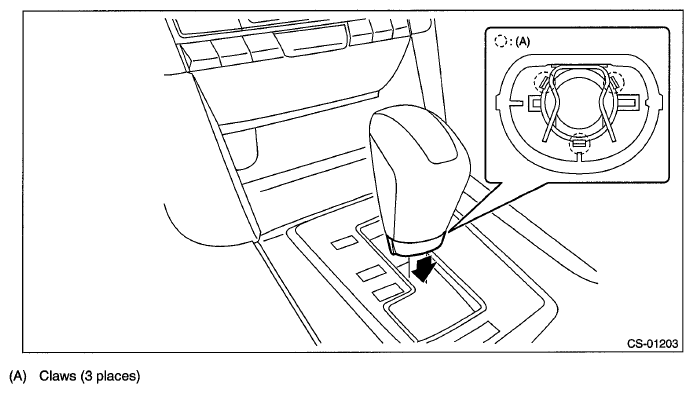

Fig 4: Identifying Cover Claws
Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp grip pin.

Fig 5: Removing Clamp Grip Pin
Courtesy of SUBARU OF AMERICA, INC.
Remove the grip assembly.

Fig 6: Removing Grip Assembly
Courtesy of SUBARU OF AMERICA, INC.
Turn over the rubber and remove the console front cover assembly.

Fig 7: Removing Console Front Cover Assembly
Courtesy of SUBARU OF AMERICA, INC.

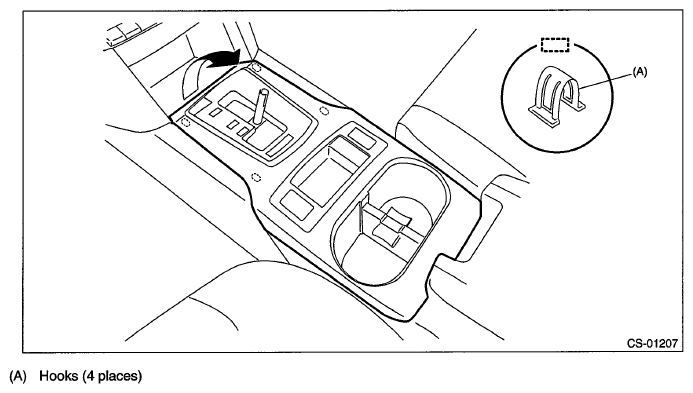

Fig 8: Identifying Hooks
Courtesy of SUBARU OF AMERICA, INC.
Remove the console box. Ref. to REMOVAL , Console Box.
Remove the harness clip from the select lever.

Fig 9: Locating Harness Clip
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the harness connector.

Fig 10: Identifying Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the four bolts to remove the select lever assembly.

Fig 11: Locating Select Lever Bolts
Courtesy of SUBARU OF AMERICA, INC.
