Fuel Pump: Removal

WARNING: Place "NO OPEN FLAMES" signs near the working area.

CAUTION:

Be careful not to spill fuel.
If the fuel gauge indicates that two thirds or more of the fuel is remaining, be sure to drain fuel before starting work to avoid the fuel to spill.

NOTE: Fuel pump assembly consists of fuel pump, fuel filter and fuel level sensor.

Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE. >
Drain fuel. < Ref. to DRAINING FUEL (WITH SUBARU SELECT MONITOR) , PROCEDURE. >
Disconnect the ground cable from battery.

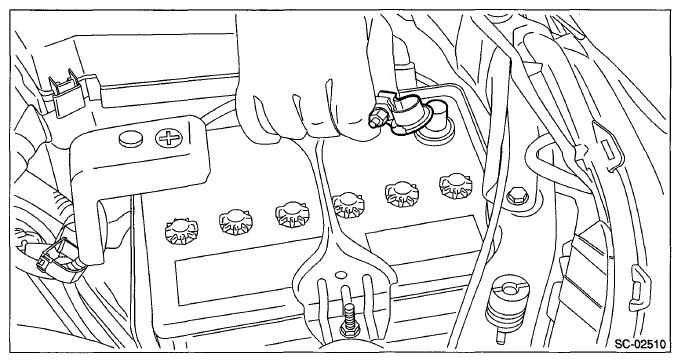

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the rear seat cushion. < Ref. to REMOVAL , Rear Seat. >
Remove the service hole cover of fuel pump.
1. Disconnect fuel pump connector (A), and remove clip (B).
2. Remove the screw (C).
3. Push the grommet (D) down and remove the service hole cover.

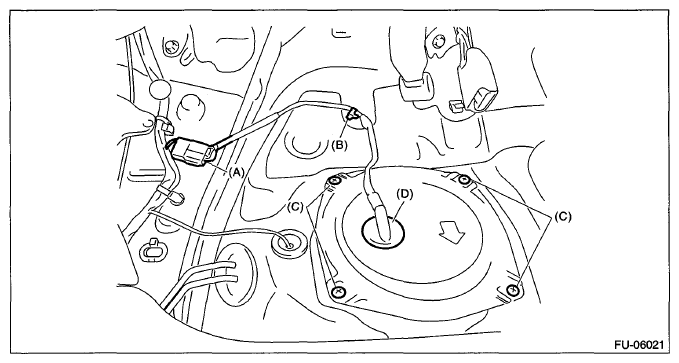

  Fig 2: Fuel Pump Connector, Clip, Screw And Grommet
  Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from fuel pump.

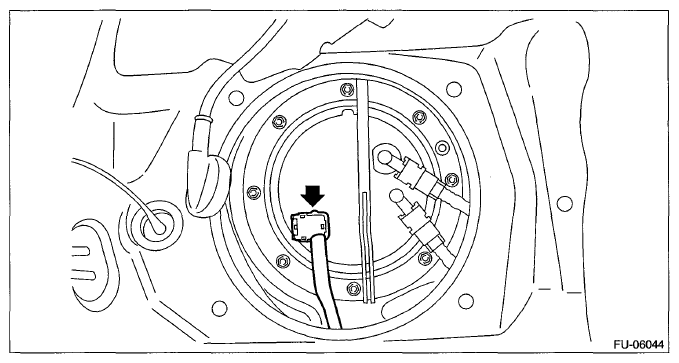

Fig 3: Locating Fuel Pump Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the quick connector of fuel delivery tube (A) and jet pump tube (B). < Ref. to REMOVAL , Fuel Delivery and Evaporation Lines. >

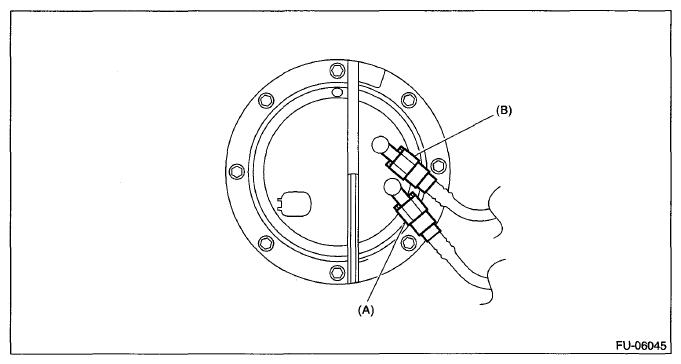

Fig 4: Quick Connector Of Fuel Delivery Tube And Jet Pump Tube
Courtesy of SUBARU OF AMERICA, INC.
Remove the nuts which hold the fuel pump upper plate to the fuel tank.

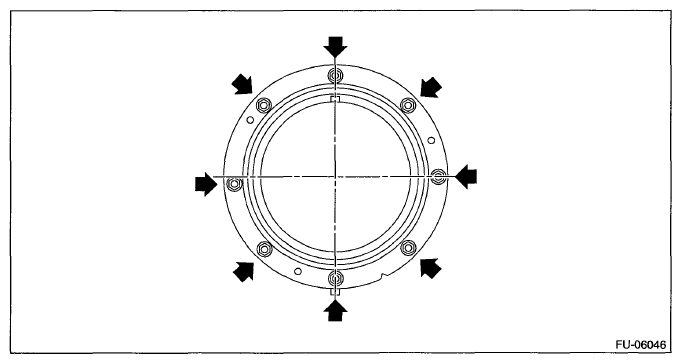

Fig 5: Locating Fuel Pump Upper Plate Mounting Nuts
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel pump assembly from the fuel tank.
