Tumble Generator Valve Assembly: Removal

Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE. >
Disconnect the ground cable from battery.

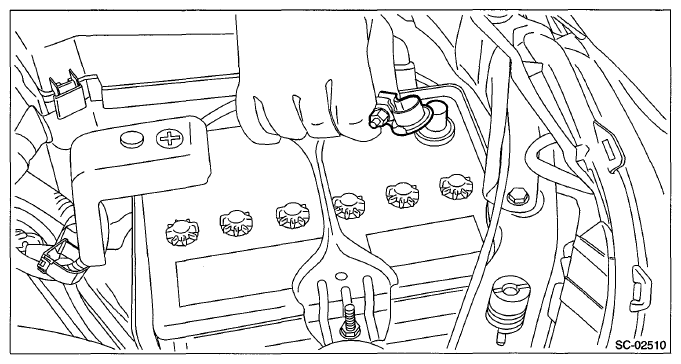

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Open the fuel filler lid and remove the fuel filler cap.
Remove the intake manifold. < Ref. to REMOVAL , Intake Manifold. >
Disconnect the connectors (A) from fuel injector.
Disconnect the connector (B) from the tumble generator valve assembly.
Remove the tumble generator valve assembly from the cylinder head.

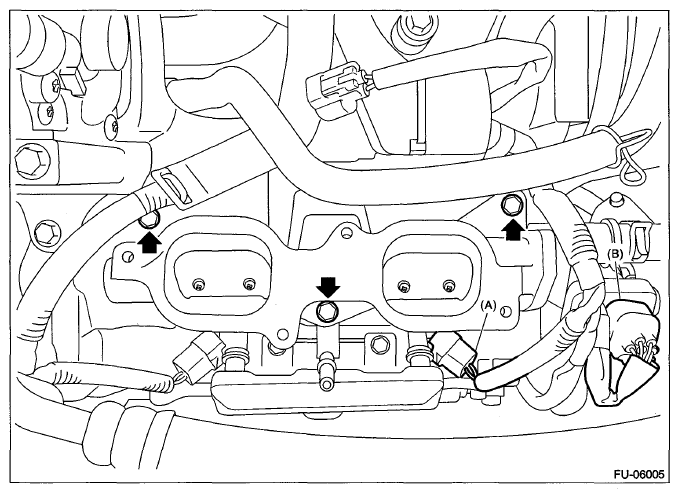

- LH side

  Fig 2: Locating Tumble Generator Valve Assembly Mounting Bolts
  Courtesy of SUBARU OF AMERICA, INC.

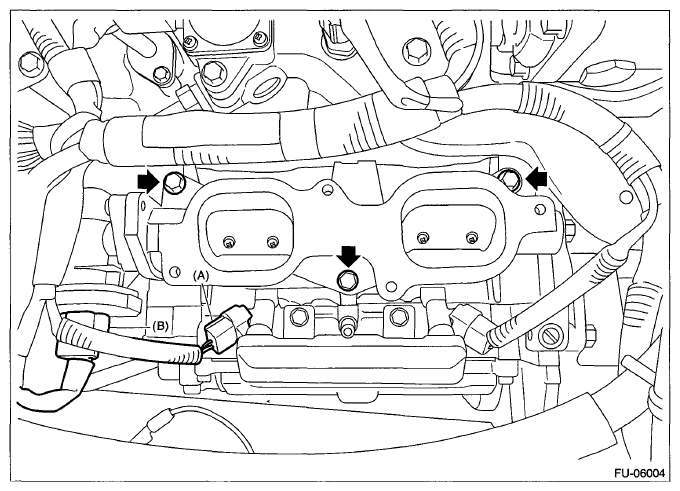

- RH side

  Fig 3: Locating Tumble Generator Valve Assembly Mounting Bolts
  Courtesy of SUBARU OF AMERICA, INC.
Remove the cylinder head plate from cylinder head.

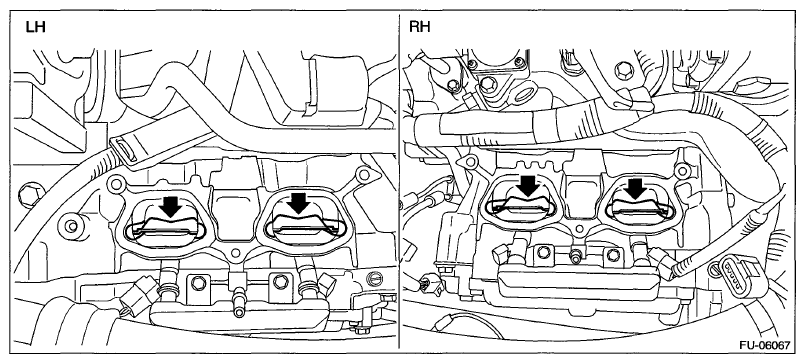

Fig 4: Locating Cylinder Head Plate
Courtesy of SUBARU OF AMERICA, INC.
