Select Lever: Installation

  1. Set the select lever to vehicle body.
  2. Tighten the four bolts to install the select lever to vehicle body, and then connect the connector.
    1. Temporarily tighten the bolt A.
    2. Tighten the bolt B.
    3. Tighten the bolt A.
    4. Tighten the bolts C and D.

      Tightening torque:

      18 N.m (1.8 kgf-m, 13.3 ft-lb)

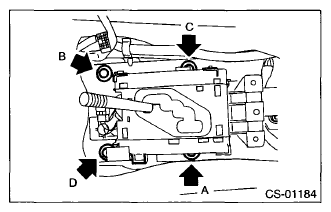

      Fig 1: Identifying Select Lever Bolts Tightening Sequence
      G07680001Courtesy of SUBARU OF AMERICA, INC.
  3. Install the harness clips to the bracket.
  4. Shift the select lever to "N" range.
  5. Install the blind.
    CAUTION: The blind should be installed so that it is securely caught by tabs of the plate guide COM-PL.

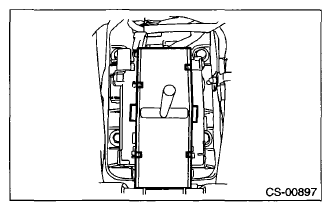

    Fig 2: Identifying Blind
    G07680002Courtesy of SUBARU OF AMERICA, INC.
  6. Install the indicator assembly.
  7. Install the console side panel and console front panel. < Ref. to INSTALLATION , Center Console. >
  8. Install the console box. < Ref. to INSTALLATION , Console Box. >
  9. Install the parking brake lever boot.
  10. Install the grip.
  11. Lift up the vehicle.
  12. Shift the range select lever to "N" range.
  13. Secure the select cable to the bracket. < Ref. to INSTALLATION , Select Cable. >
  14. Adjust the select cable position. < Ref. to ADJUSTMENT , Select Cable. >
  15. After the completion of adjustment, confirm that the select lever operates properly at all range positions.
  16. Install the heat shield cover. < Ref. to INSTALLATION , Heat Shield Cover. >
  17. Install the rear exhaust pipe, (non-turbo model) < Ref. to INSTALLATION , Rear Exhaust Pipe. >
  18. Remove the center exhaust pipe (rear), (turbo model) < Ref. to INSTALLATION , Center Exhaust Pipe. >
  19. Lower the vehicle.
  20. Connect the battery ground terminal.
  21. Inspect the following items. When a malfunction is found in the inspection, adjust the select cable and inhibitor switch. < Ref. to ADJUSTMENT , Select Cable. > < Ref. to ADJUSTMENT , Inhibitor Switch. >
    1. Engine starts when the select lever is in "P" and "N" range, but not in other ranges.
    2. Back-up light illuminates when the select lever is in the "R" range, but not in other ranges.
    3. Select lever and indicator positions are matched.
