Brake Line

Check for scratches, swelling, corrosion, traces of fluid leakage on the brake hoses or pipe joints.
Check the possibility of adjacent parts interfering with brake pipes/hoses during driving, and loose connections/clamps.
Check any trace of fluid leakage, scratches, etc. on master cylinder and wheel cylinder.
NOTE:
- When the brake fluid level in the reservoir tank is lower than specified limit, the brake warning light on the combination meter will come on.
- Visually check the brake hose for damage. (Use a mirror where it is difficult to see)

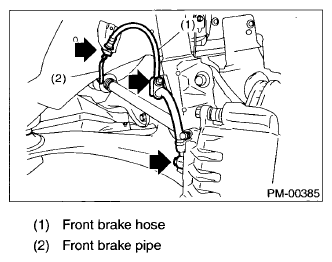

  Fig 1: Locating Front Brake Hose And Front Brake Pipe
  Courtesy of SUBARU OF AMERICA, INC.

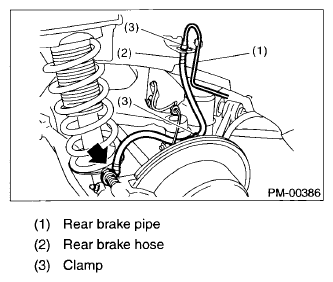

  Fig 2: Rear Brake Pipe, Rear Brake Hose And Clamp
  Courtesy of SUBARU OF AMERICA, INC.
