Body and Frame: Locations

Panel Components

COMPONENTS

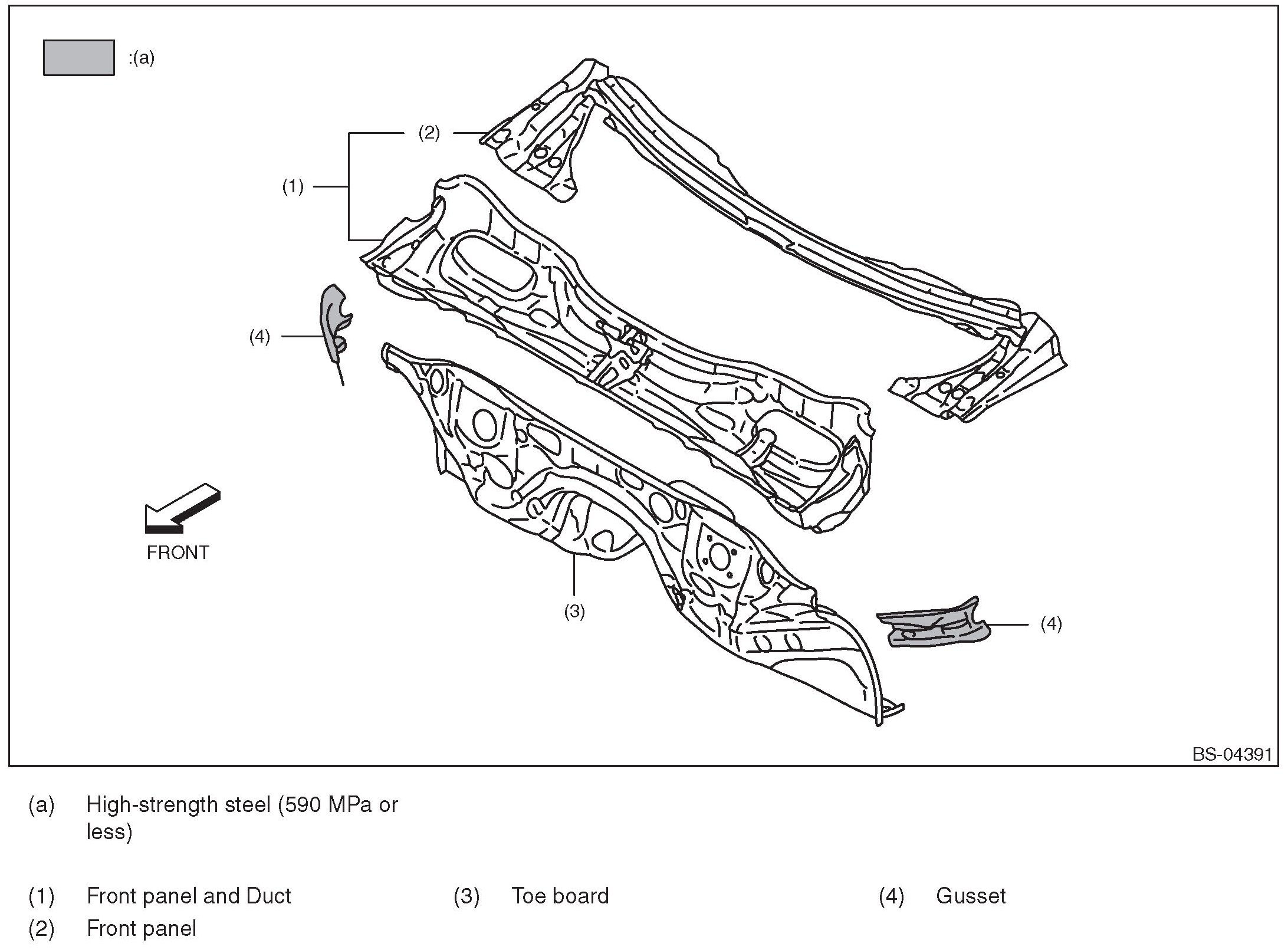

1. TOE BOARD & FRONT PANEL

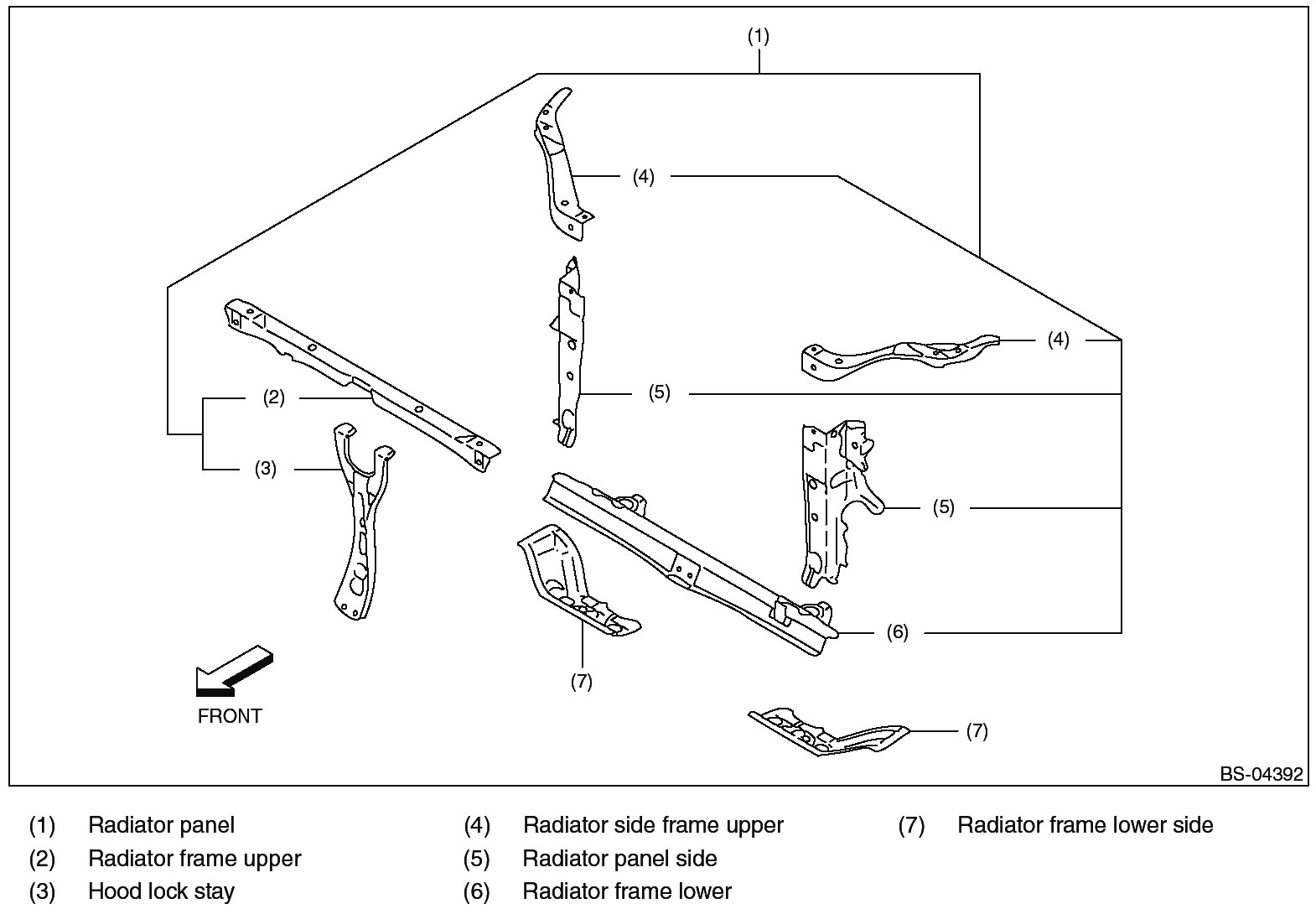

2. RADIATOR PANEL

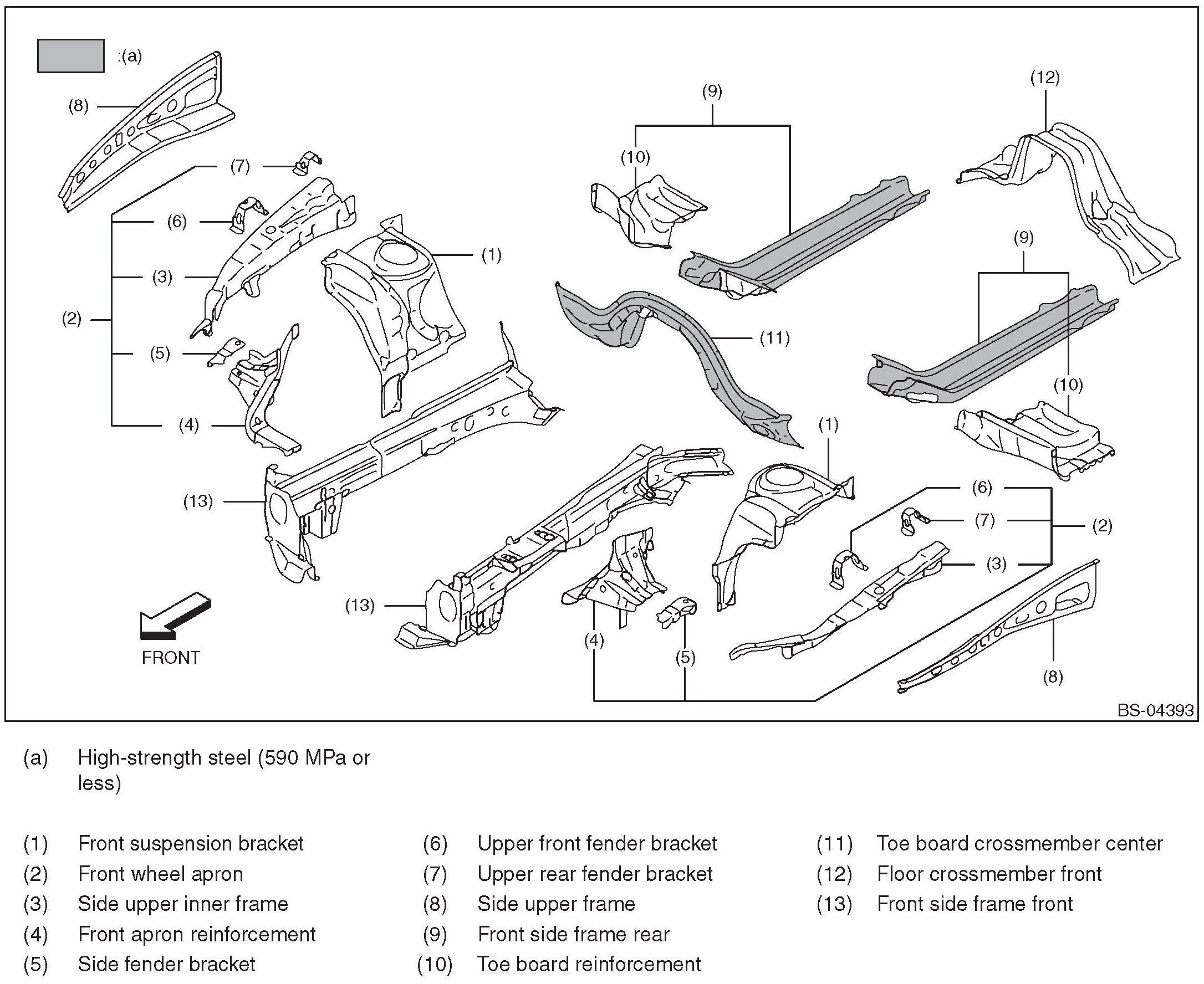

3. FRONT WHEEL APRON







NOTE: Refer to next image for (13) Front side frame front.

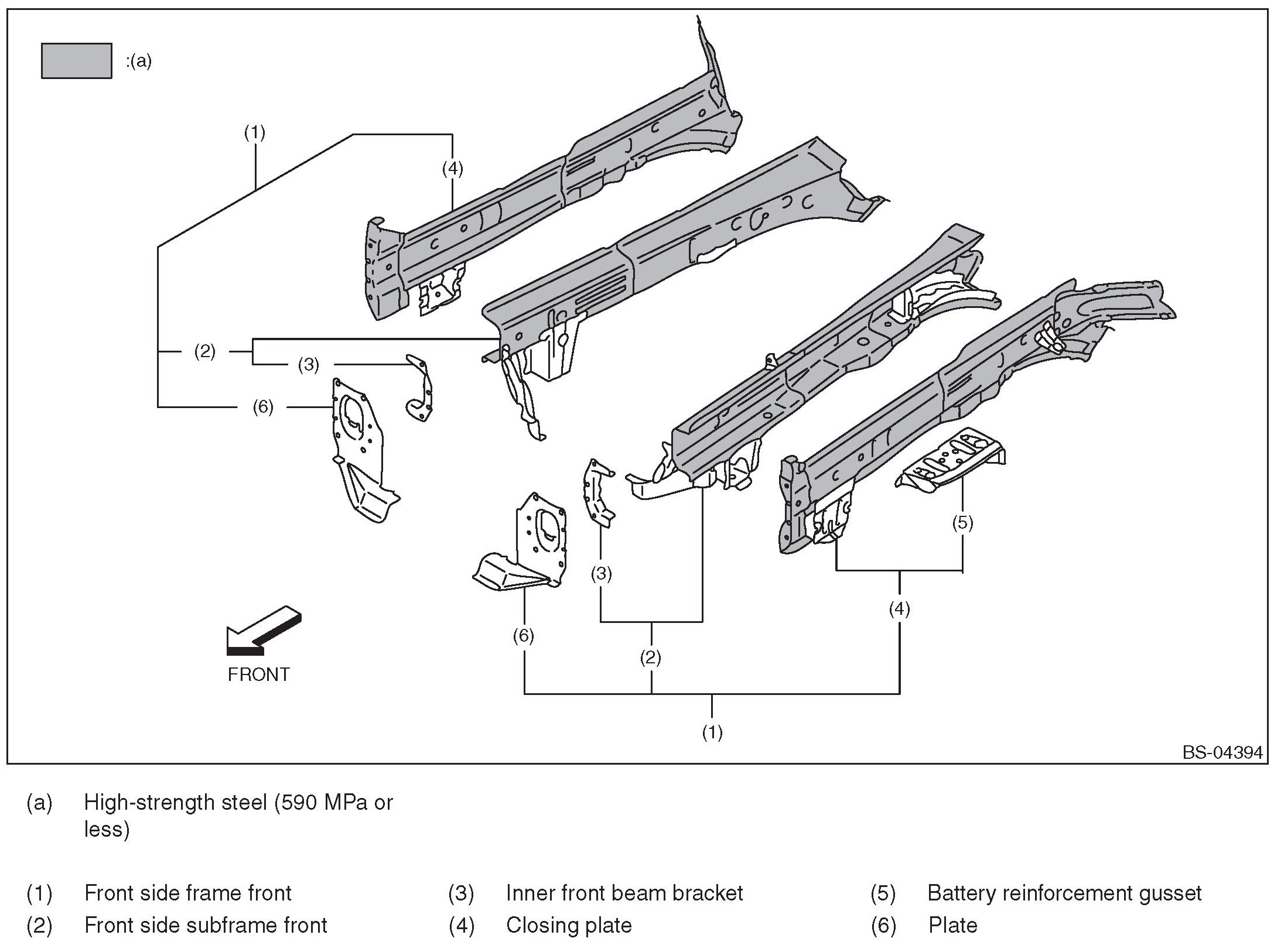

4. FRONT SIDE FRAME

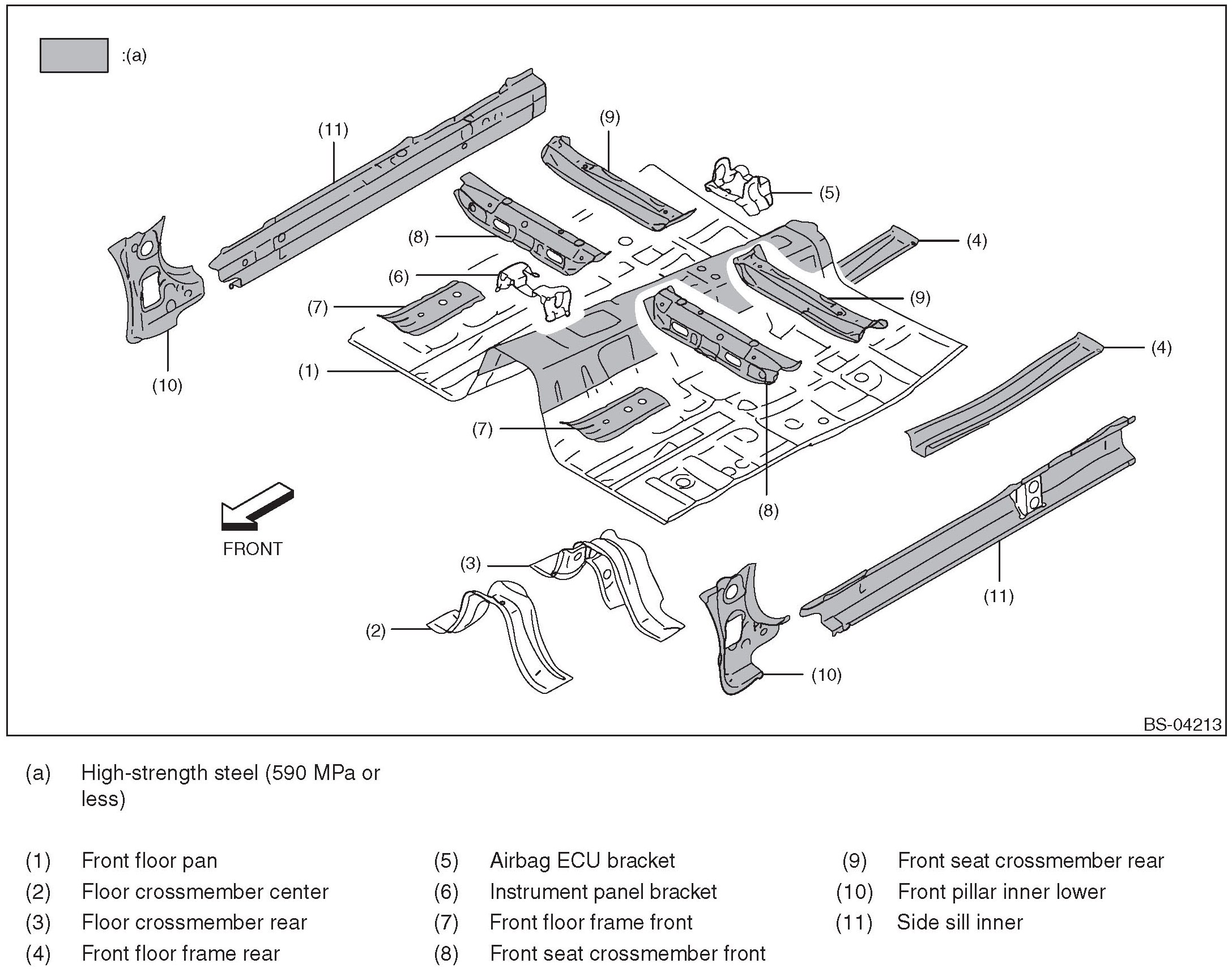

5. FRONT FLOOR PANEL

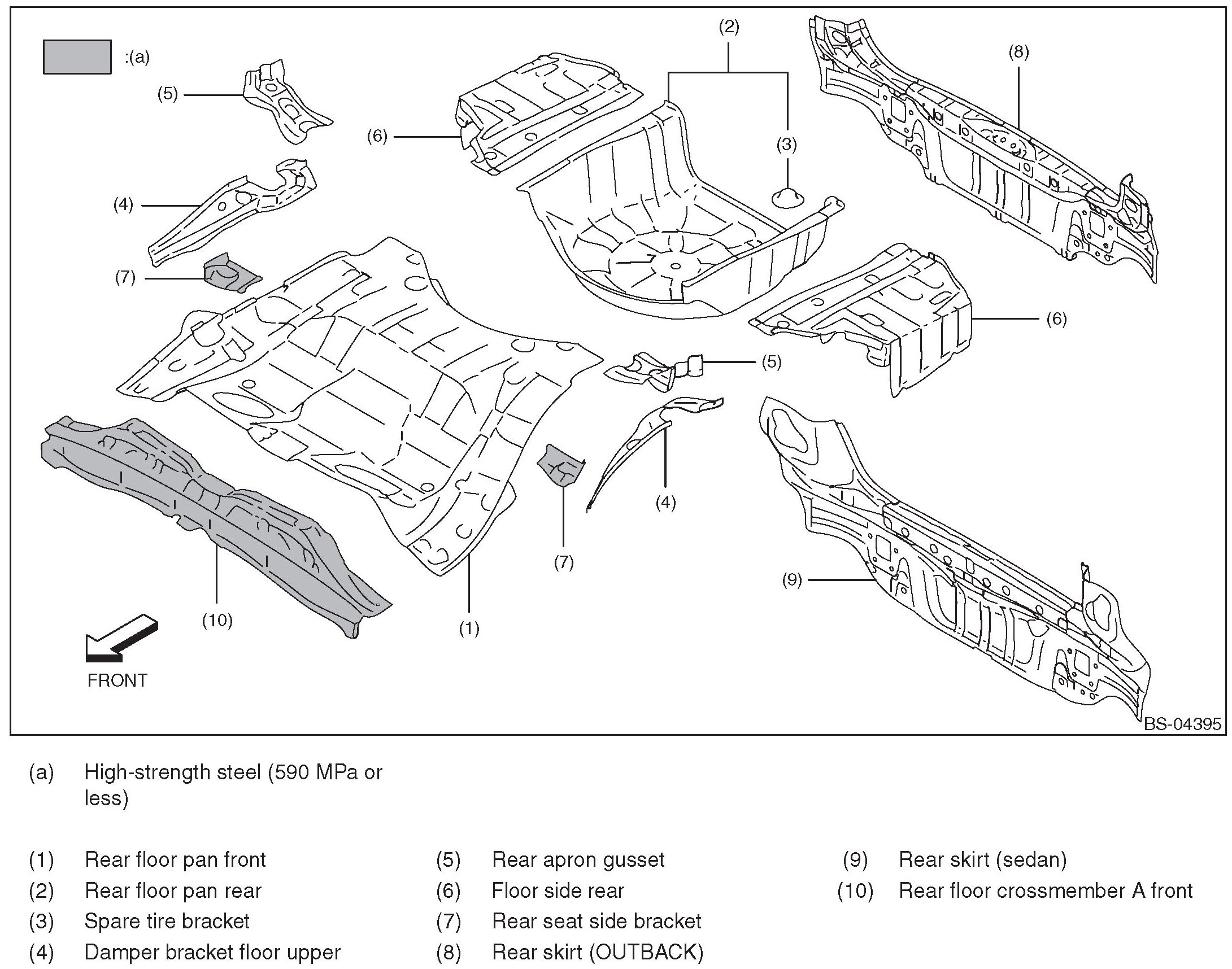

6. REAR FLOOR PANEL & REAR SKIRT

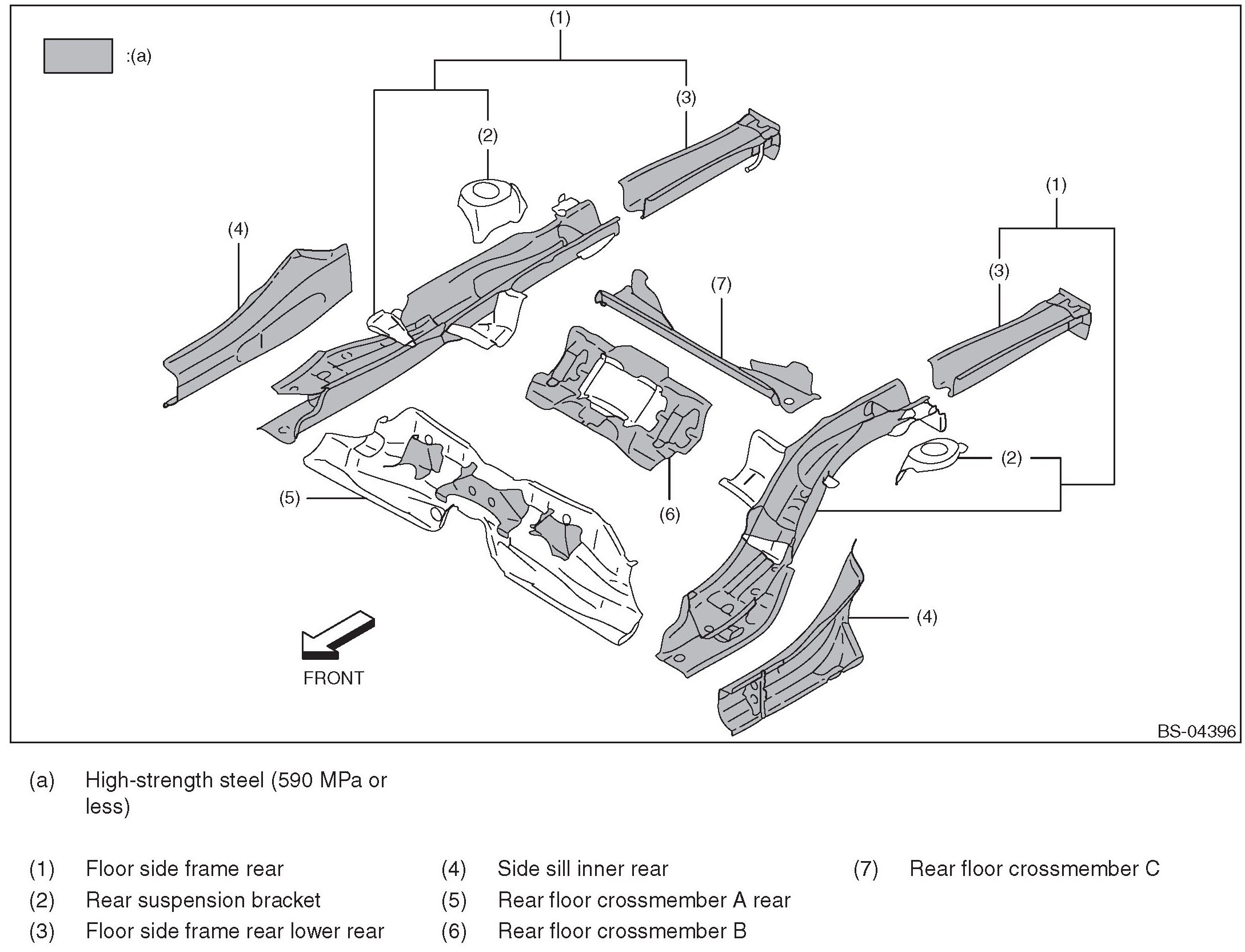

7. REAR FLOOR SIDE FRAME

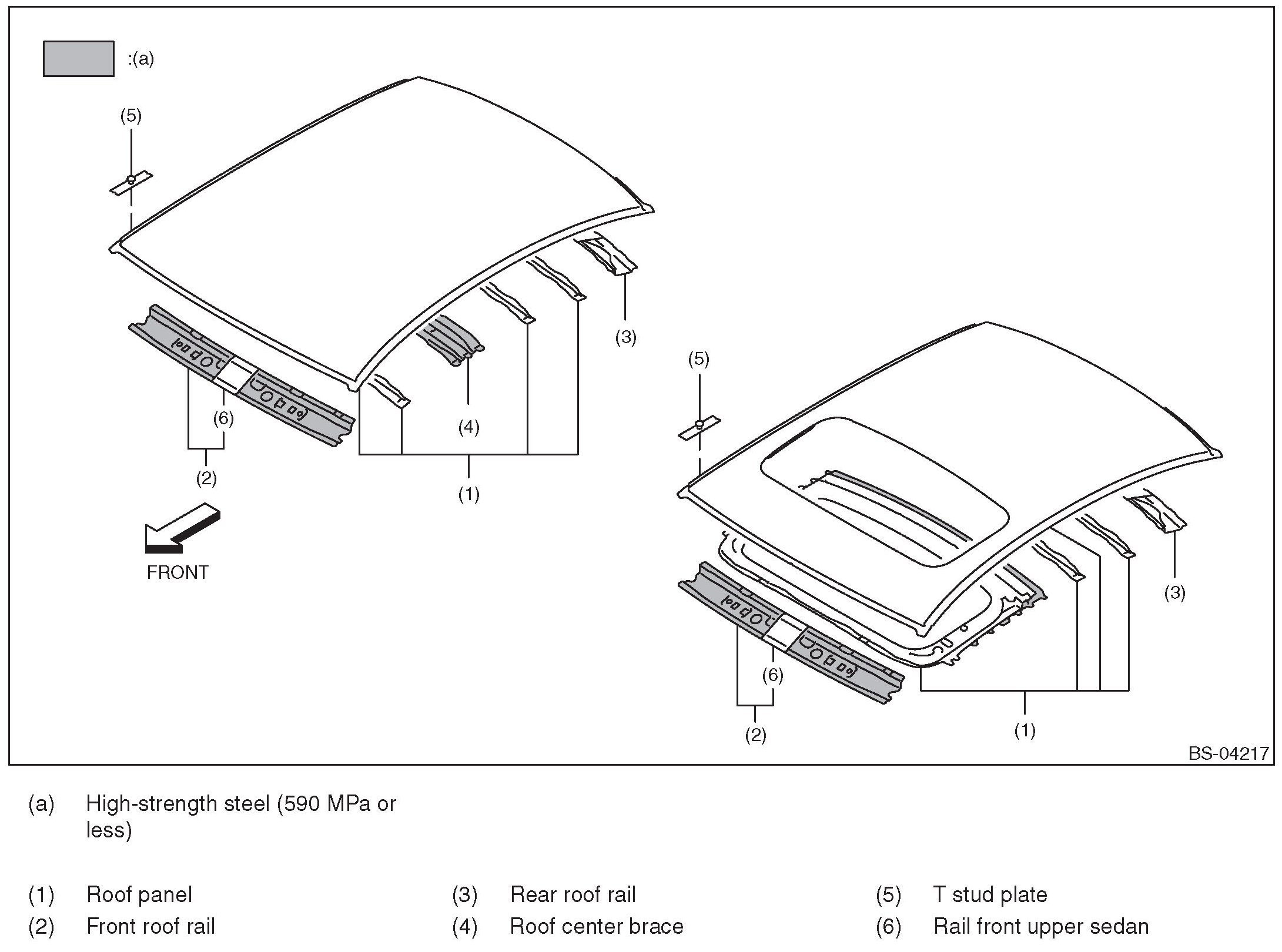

8. ROOF
- Sedan

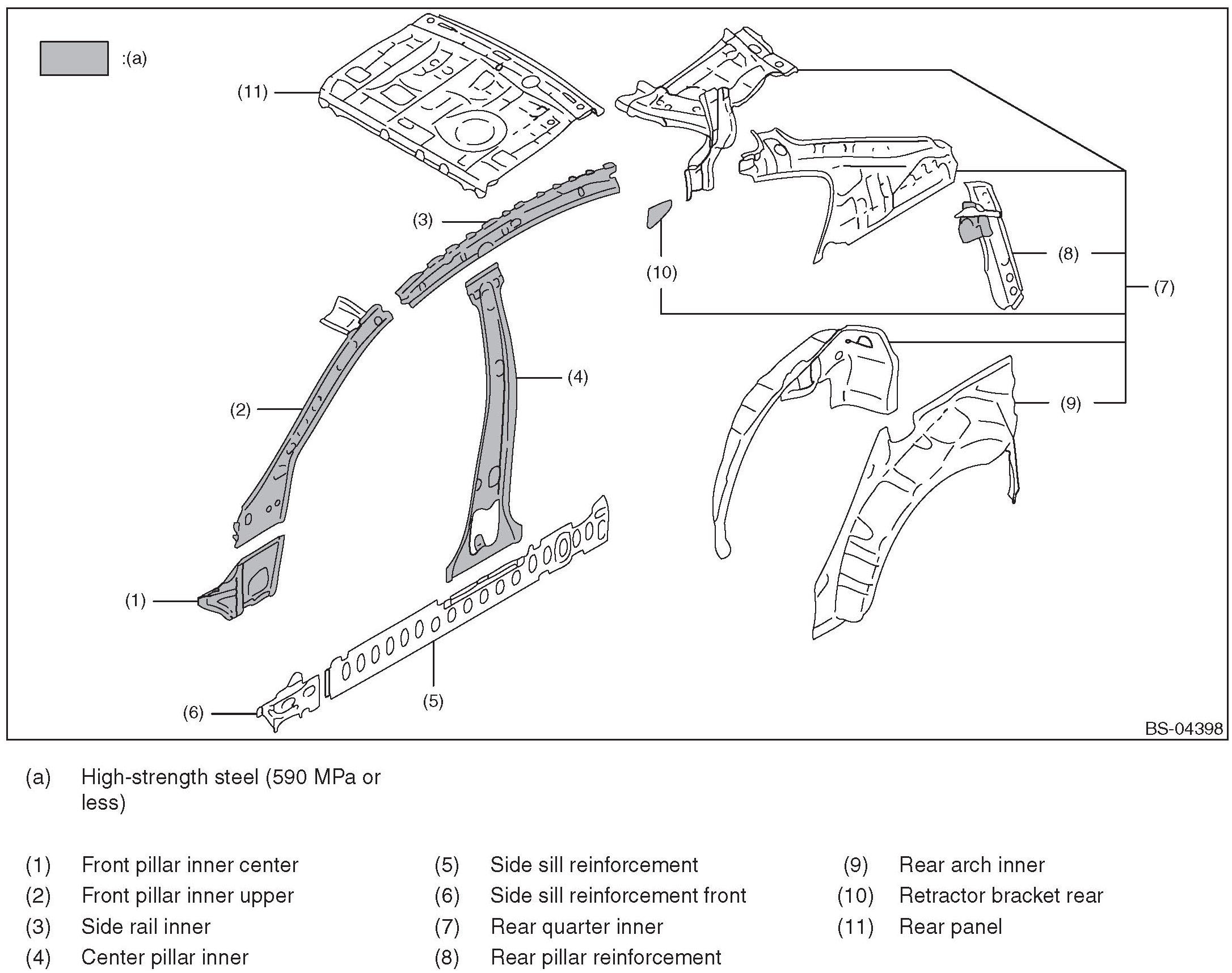

9. SIDE PANEL INNER
- Sedan

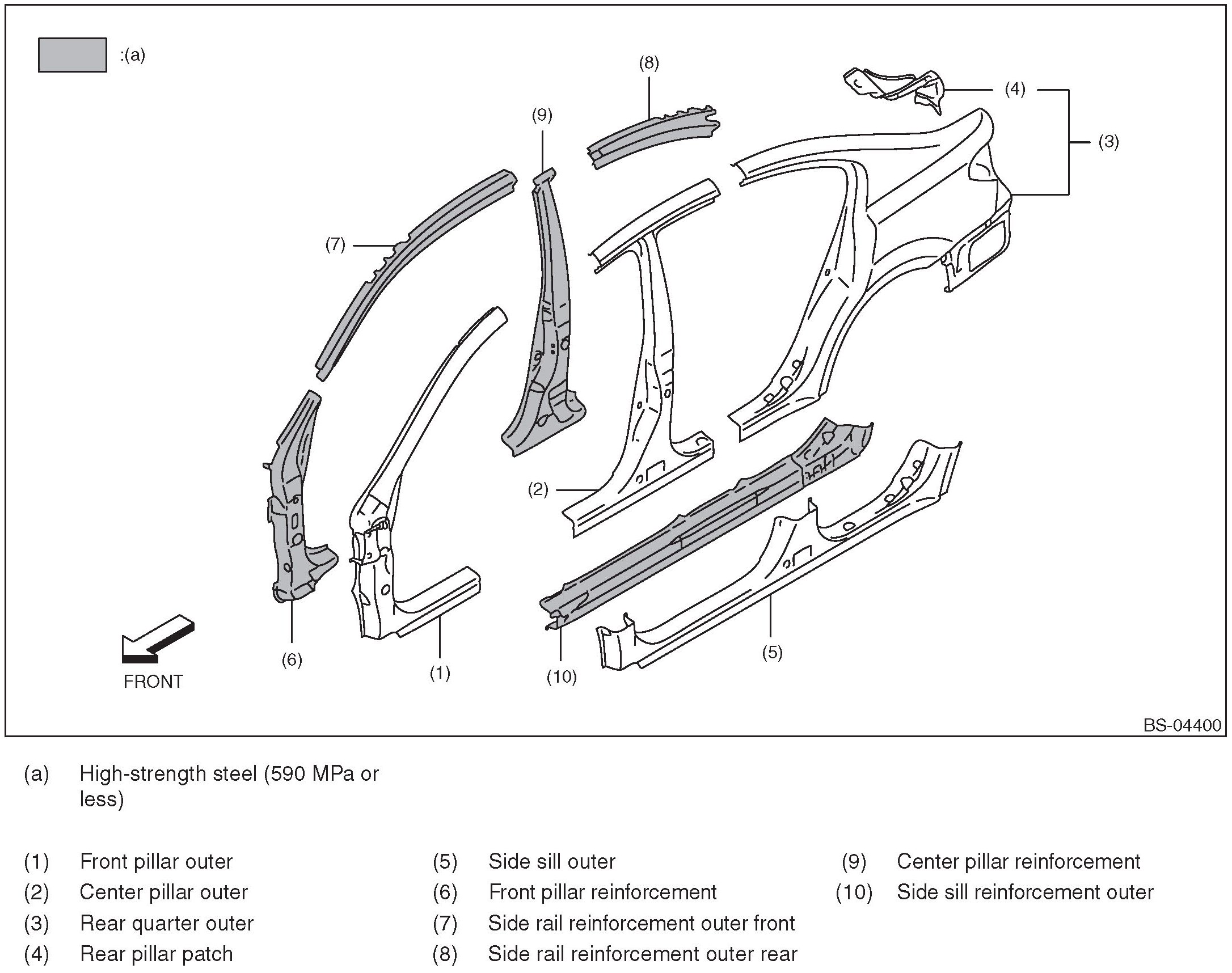

10. SIDE PANEL OUTER
- Sedan
