Intake Manifold

Intake Manifold

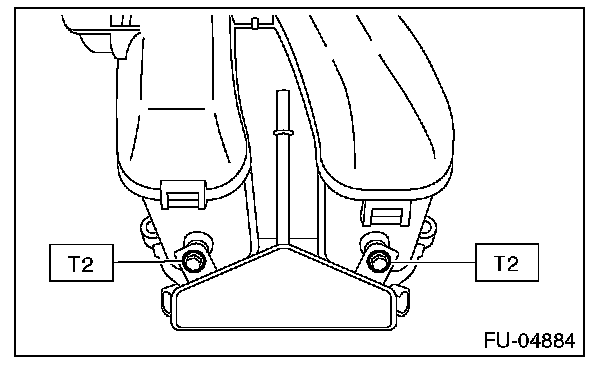

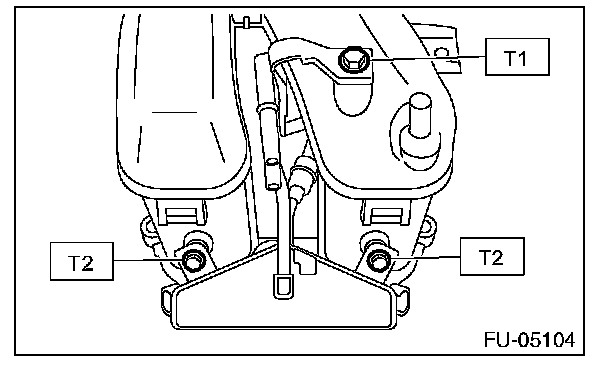

Tightening torque:
T1 6.4 N.m (0.7 kgf.m, 4.7 ft.lb)
T2 19 N.m (1.9 kgf.m, 14.0 ft.lb)










Tightening torque 6.4 N.m (0.7 kgf.m, 4.7 ft.lb)










Tightening torque 25 N.m (2.5 kgf.m, 18.4 ft.lb)










Tightening torque 6.4 N.m (0.7 kgf.m, 4.7 ft.lb)
