Flywheel

NOTE:

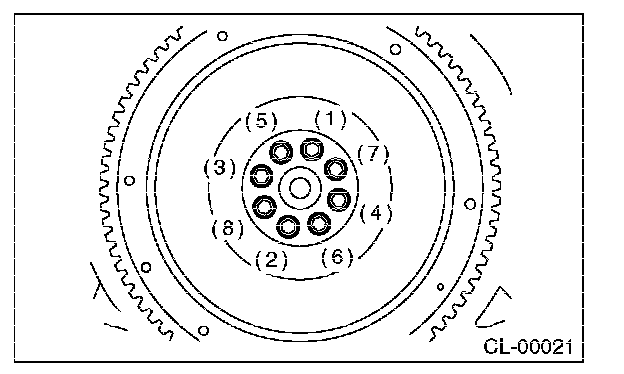

Tighten the flywheel attachment bolts gradually. Each bolt should be tightened to the specified torque in crisscross order.

Tightening torque Nm (7.6 kgf-m, 55.3 ft-lb)
