System Diagram

COMPONENT

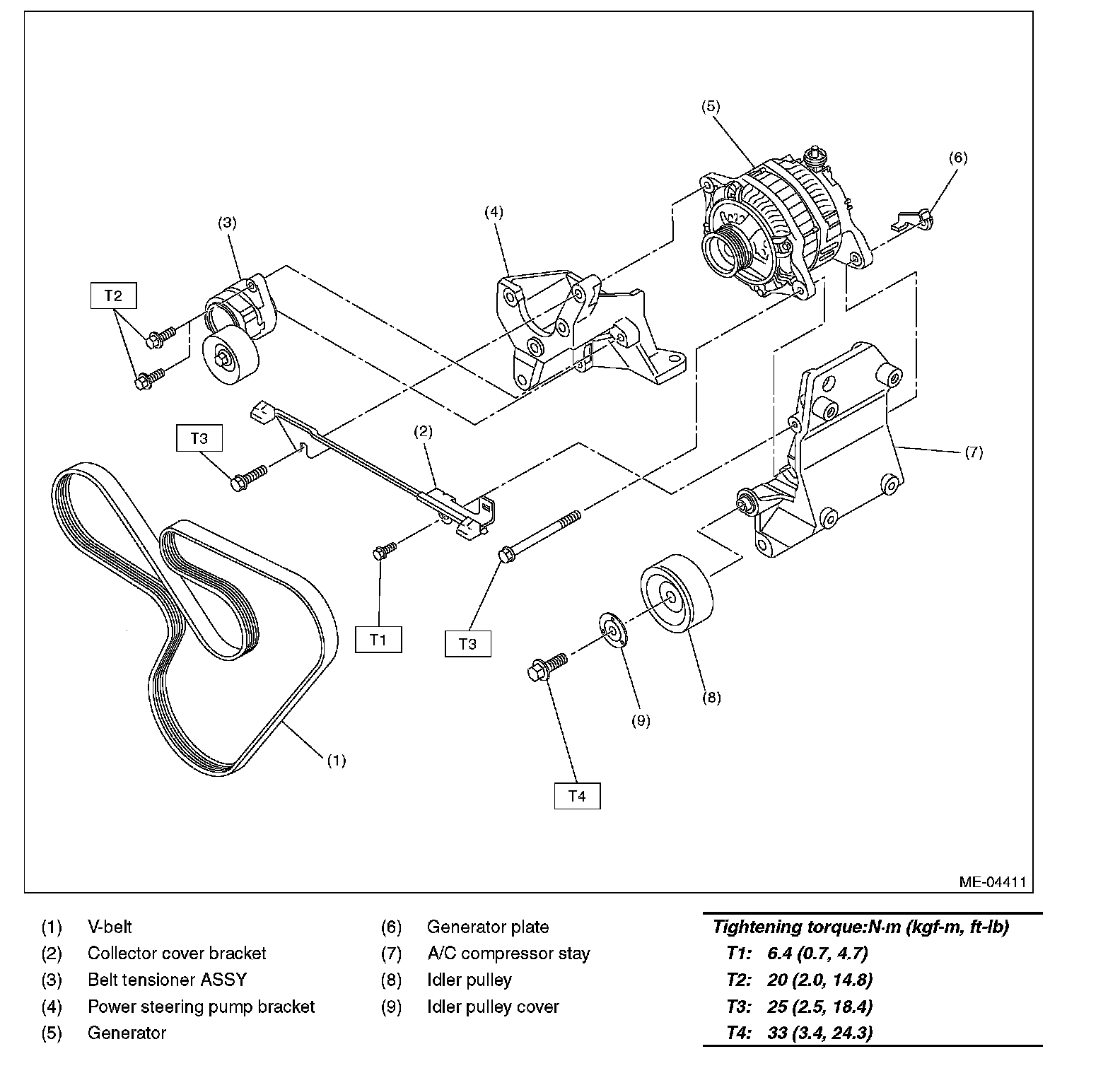

V-BELT





CHAIN COVER

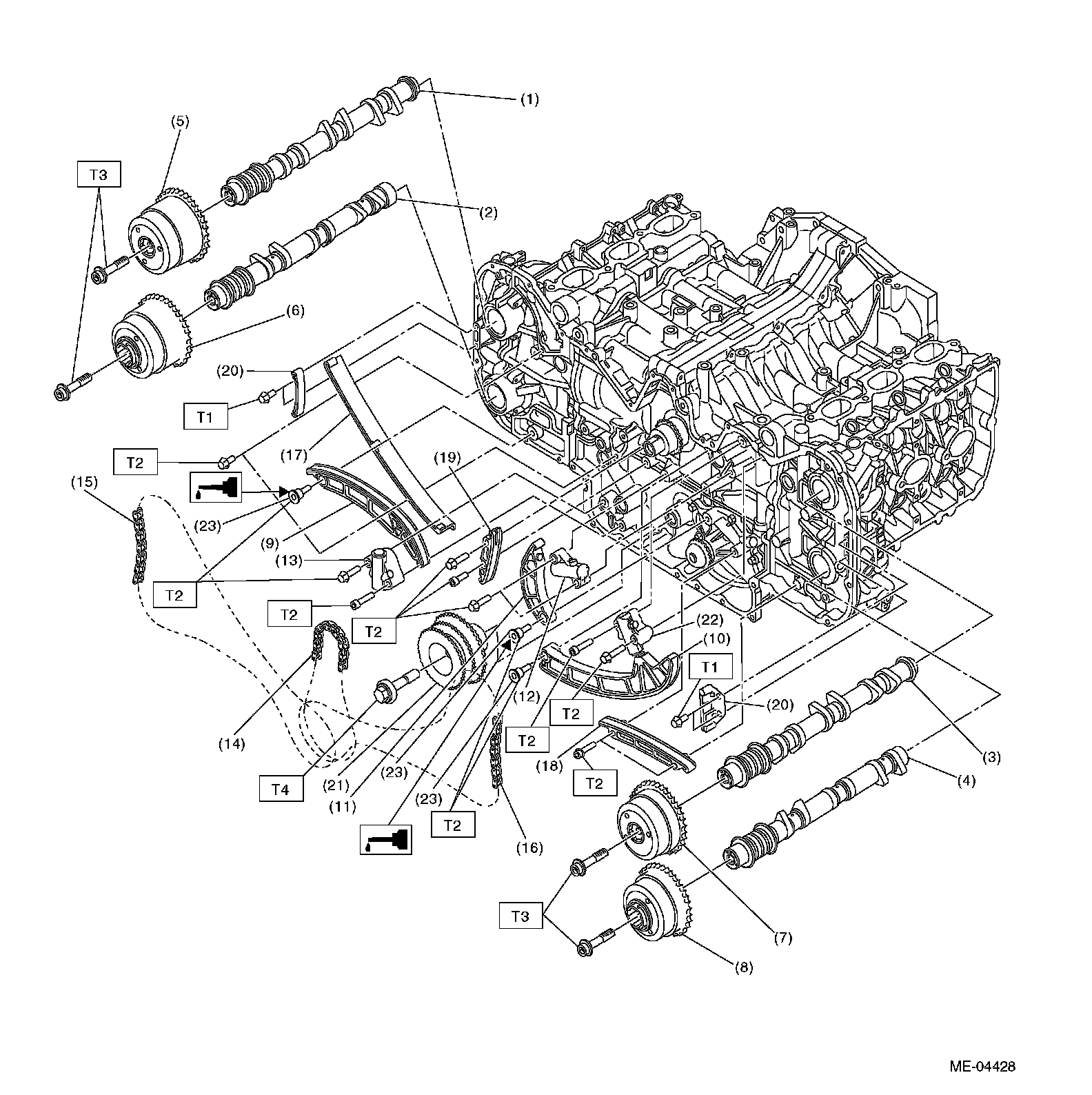

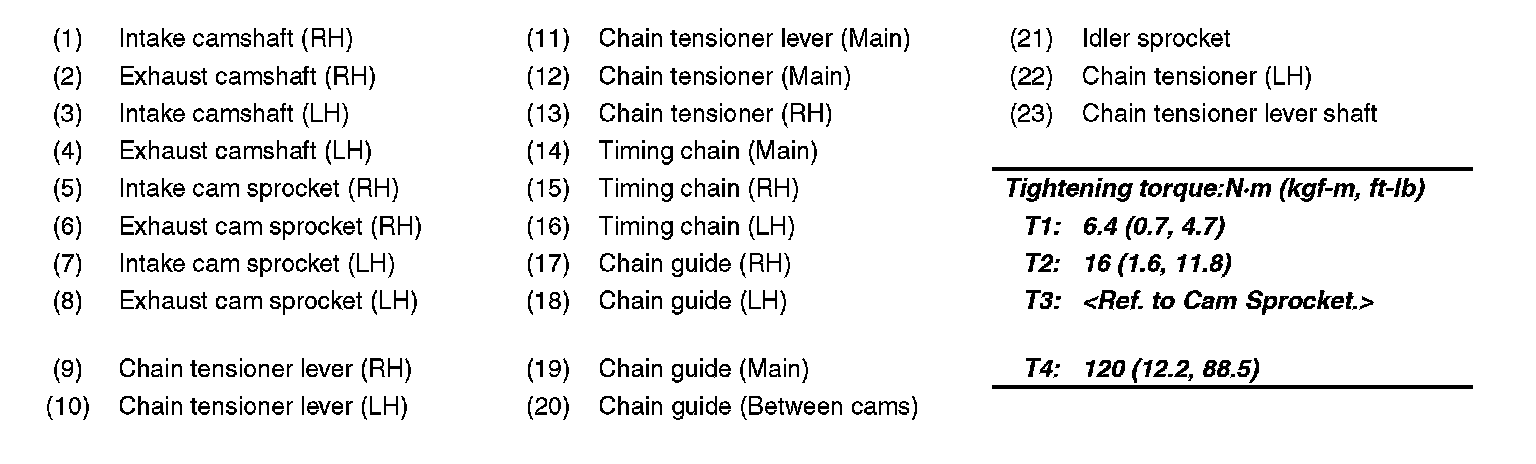

TIMING CHAIN

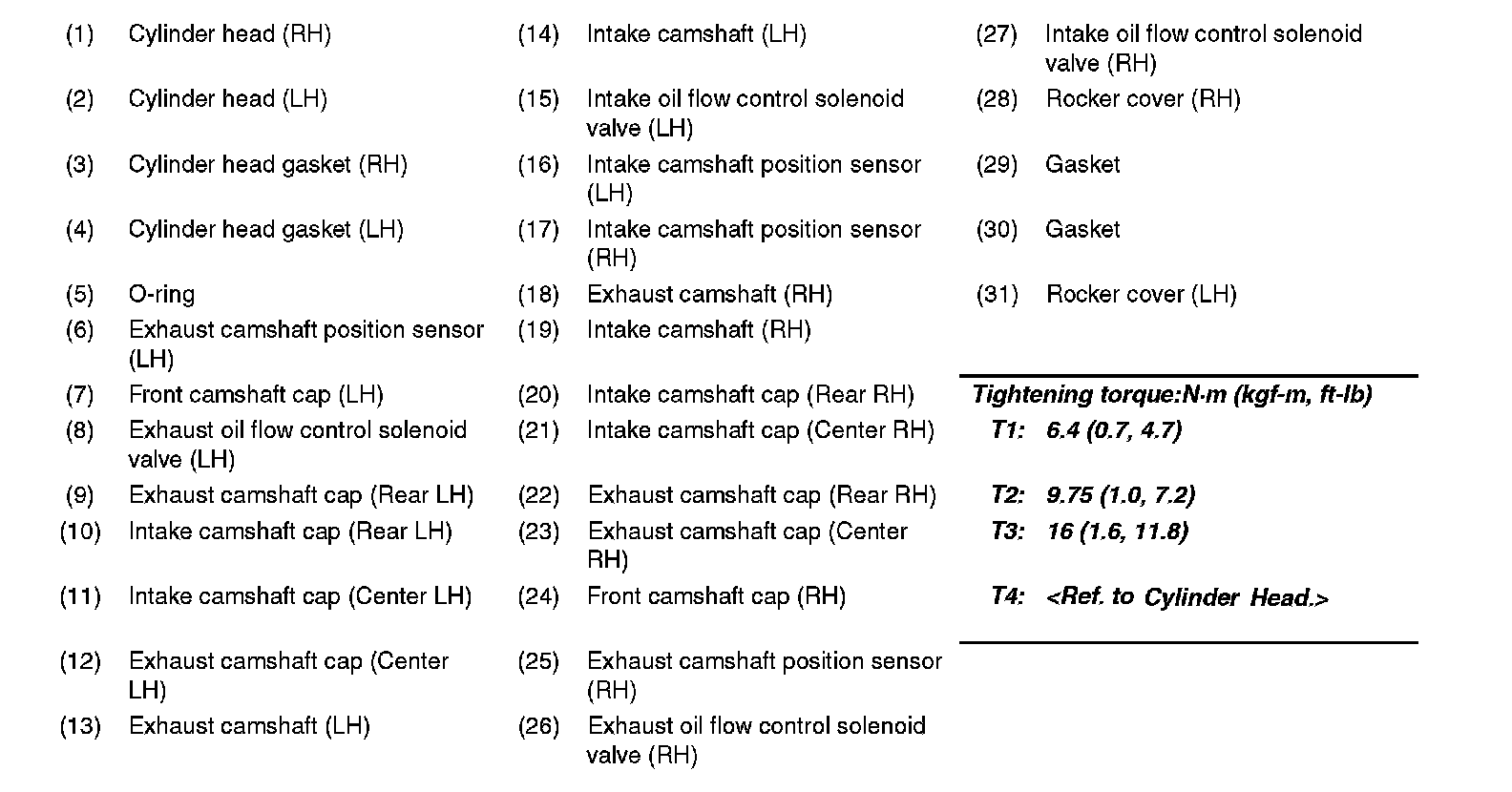

CYLINDER HEAD AND CAMSHAFT

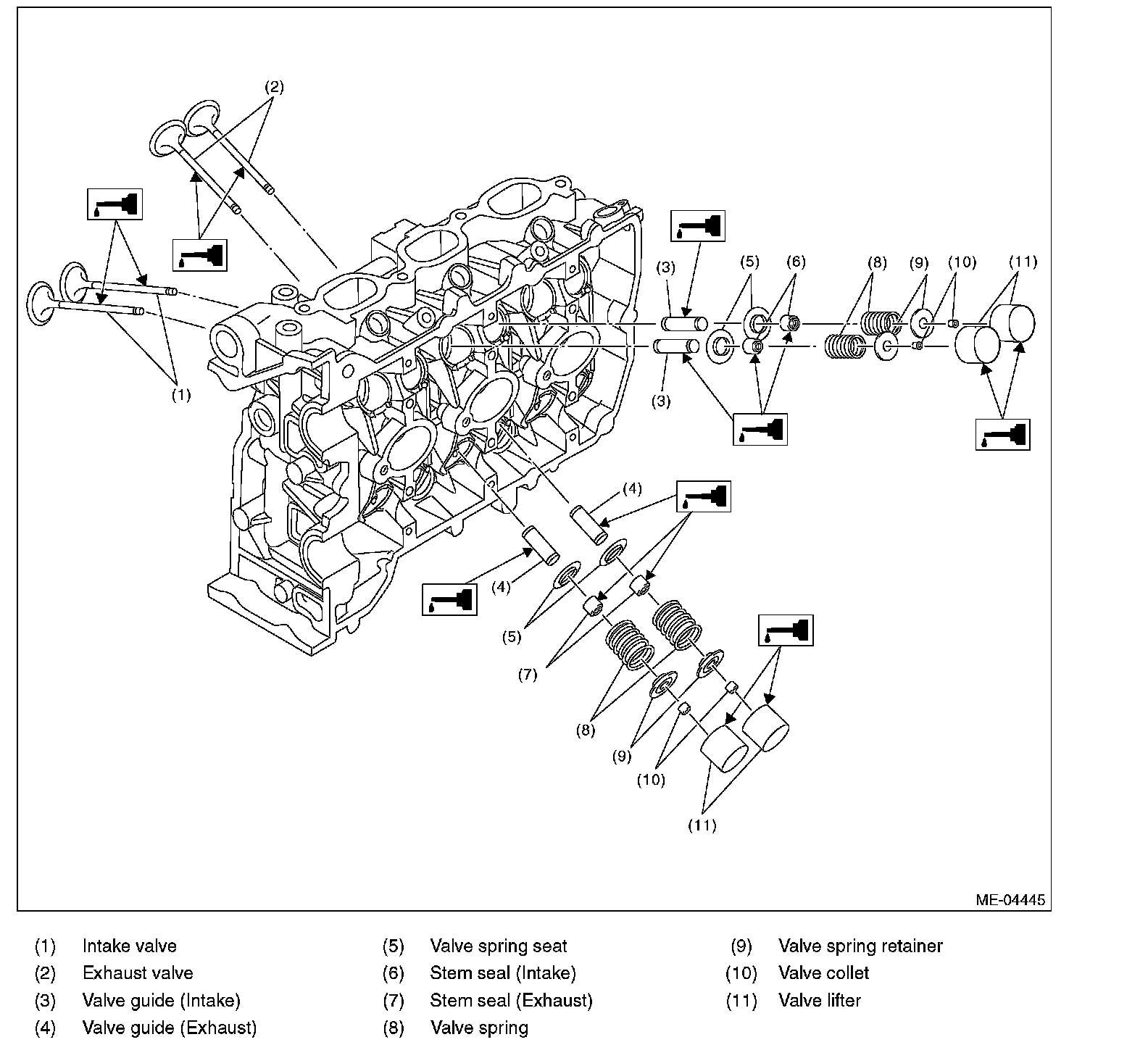

CYLINDER HEAD AND VALVE ASSEMBLY

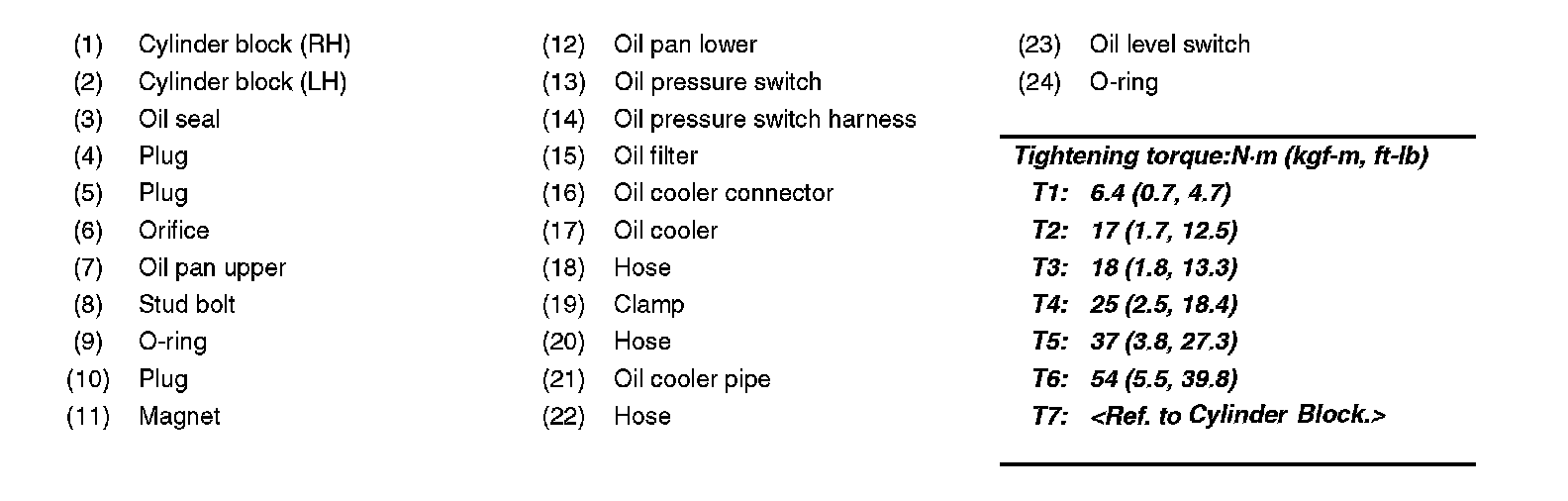

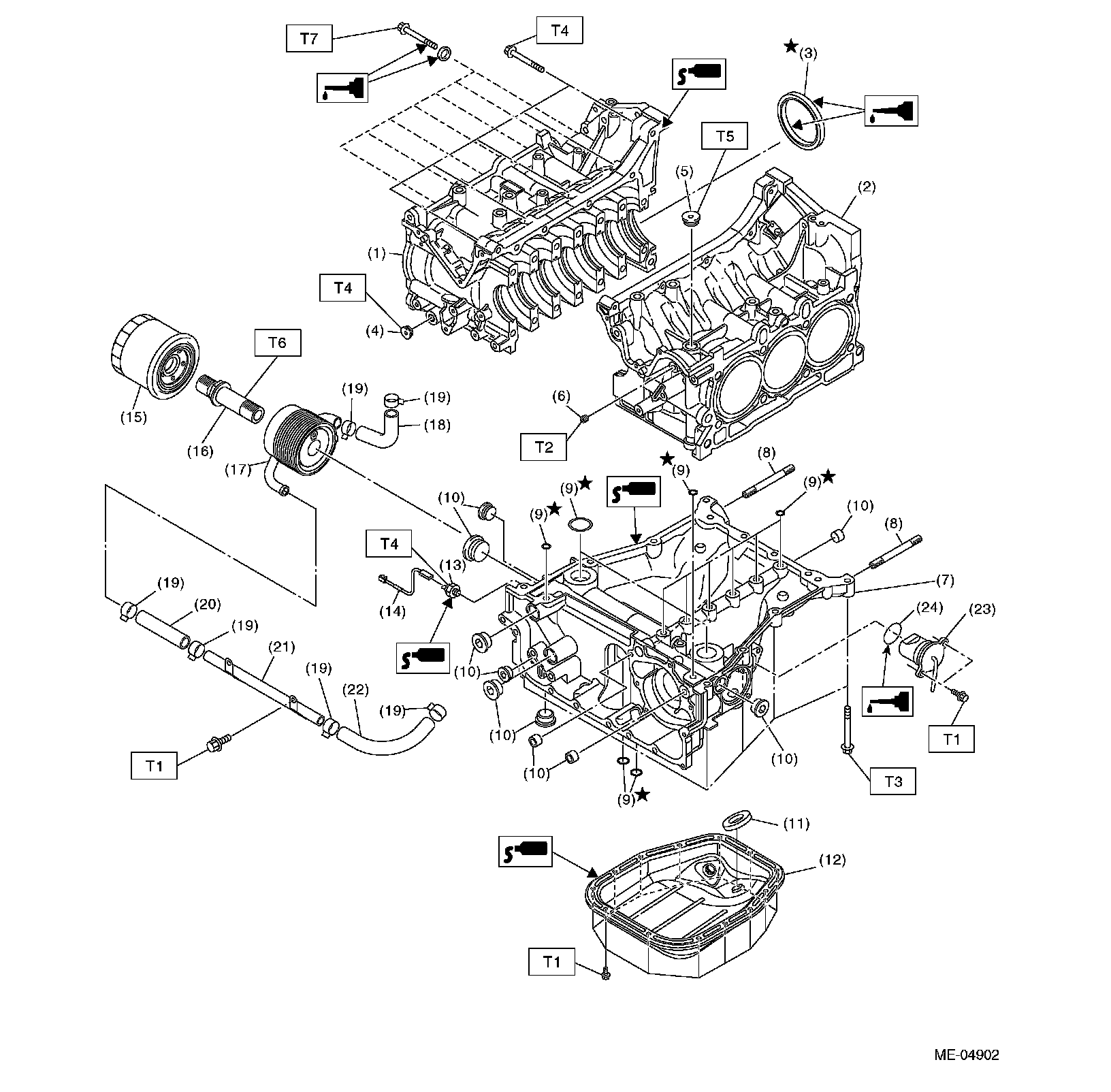

CYLINDER BLOCK

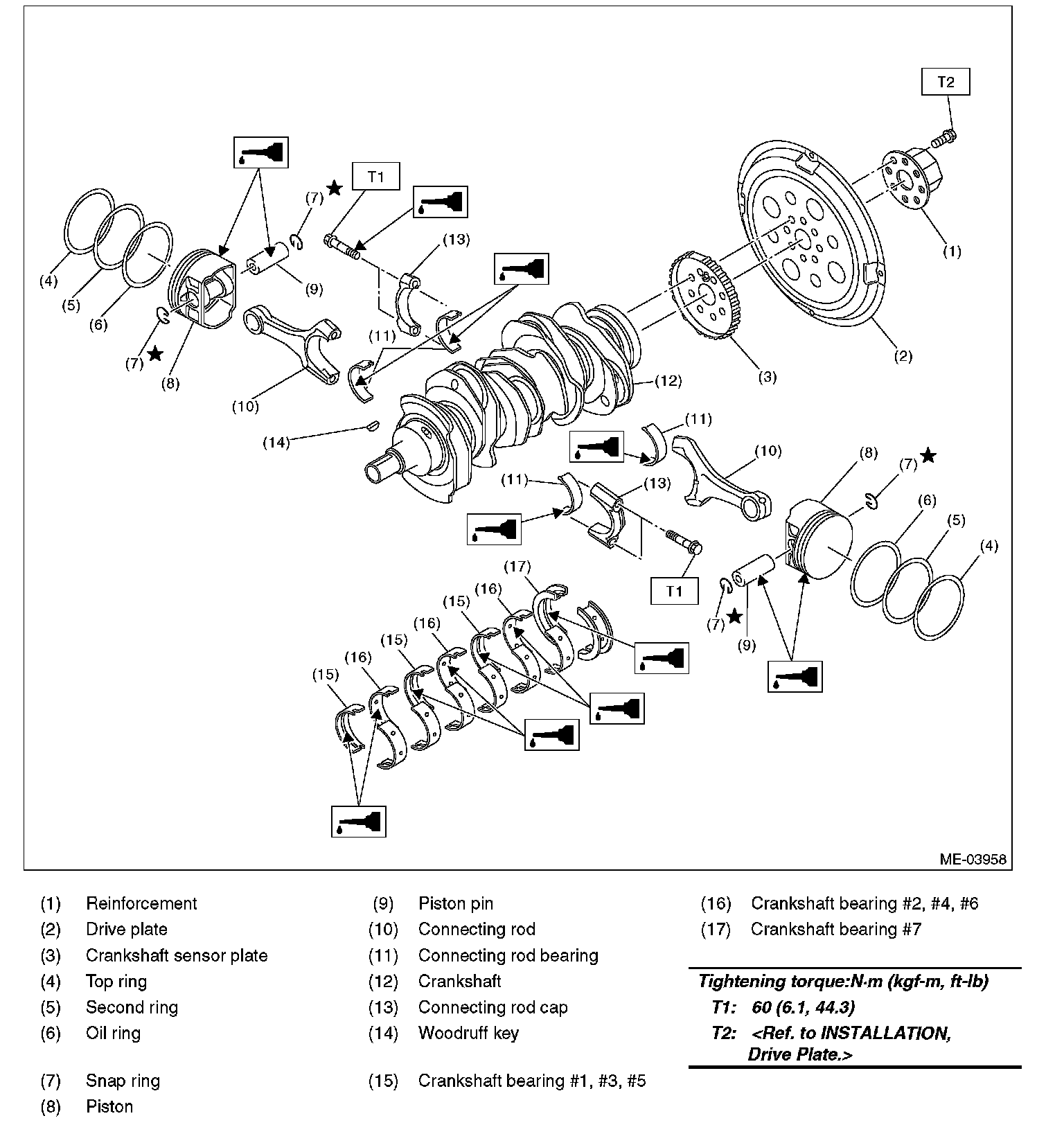

CRANKSHAFT AND PISTON

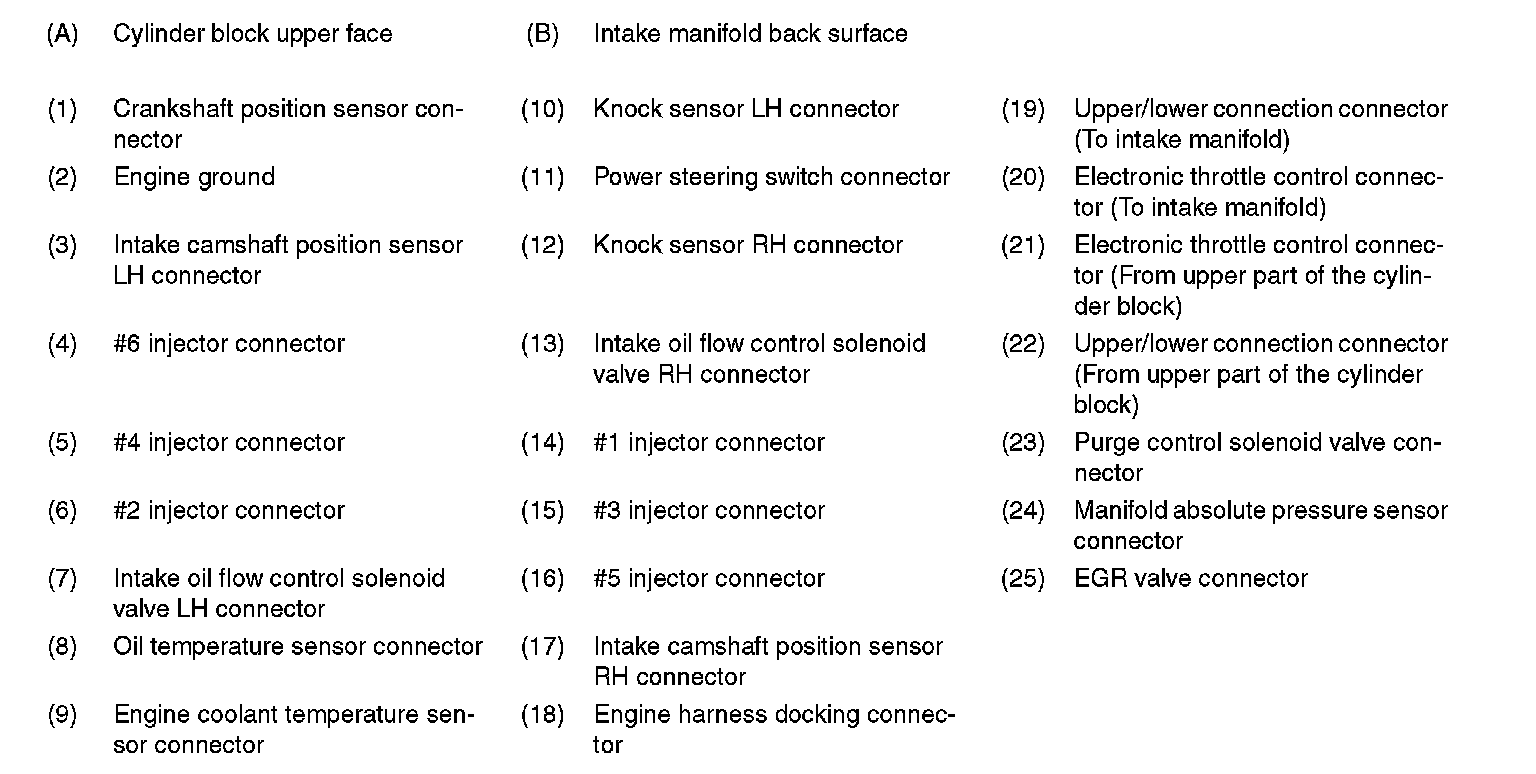

ENGINE HARNESS

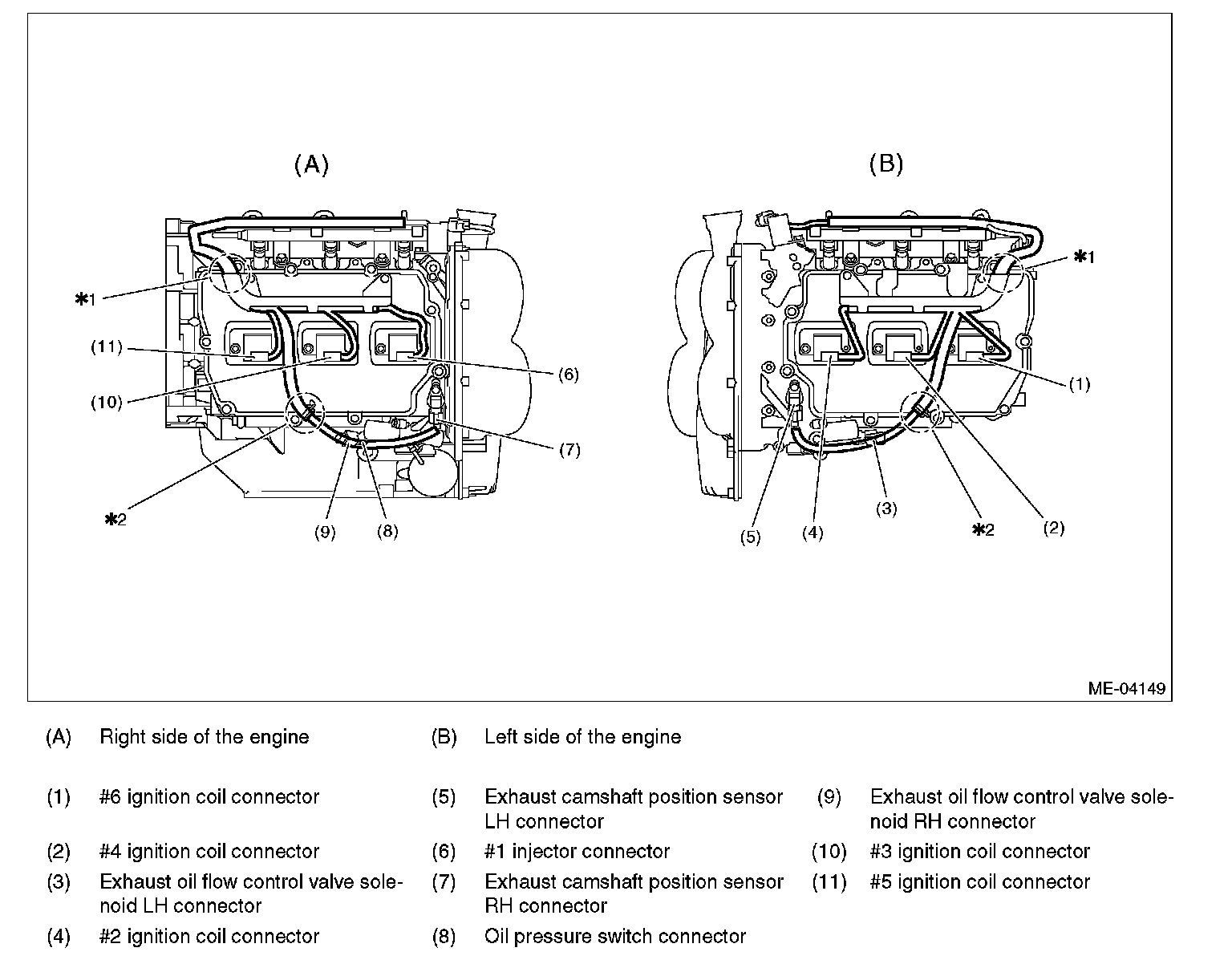

Engine harness assembly diagram 1

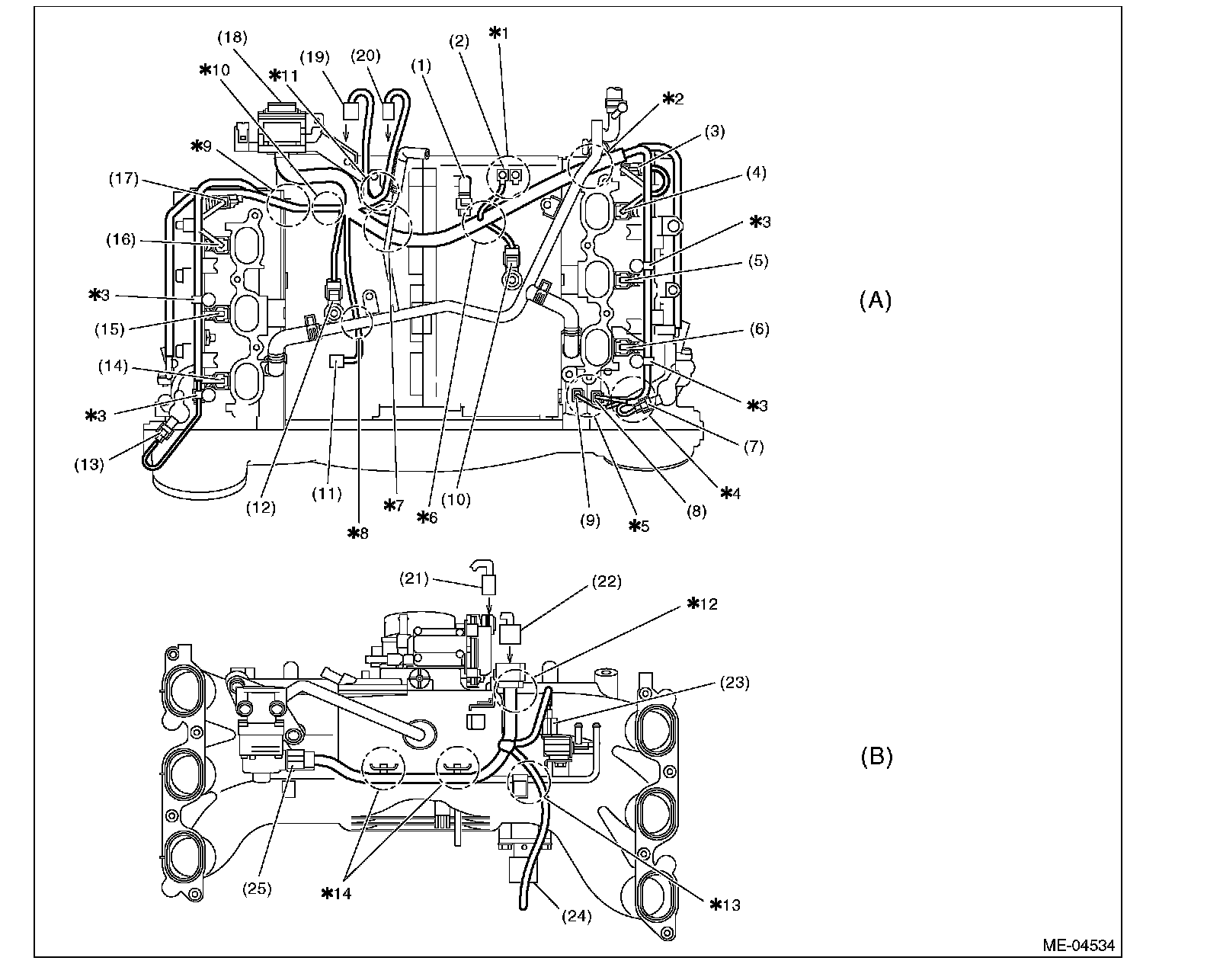

Engine harness assembly diagram 2

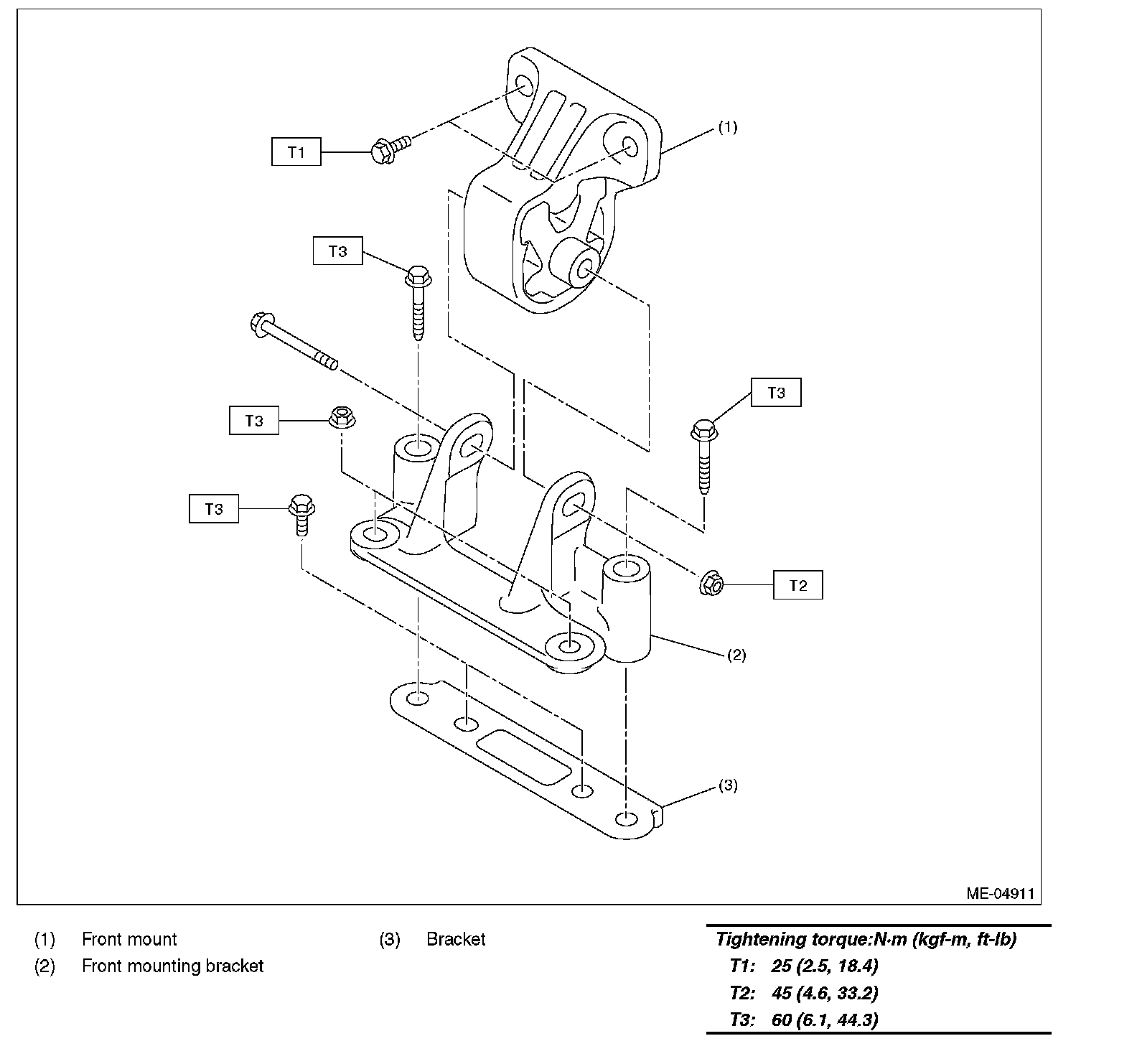

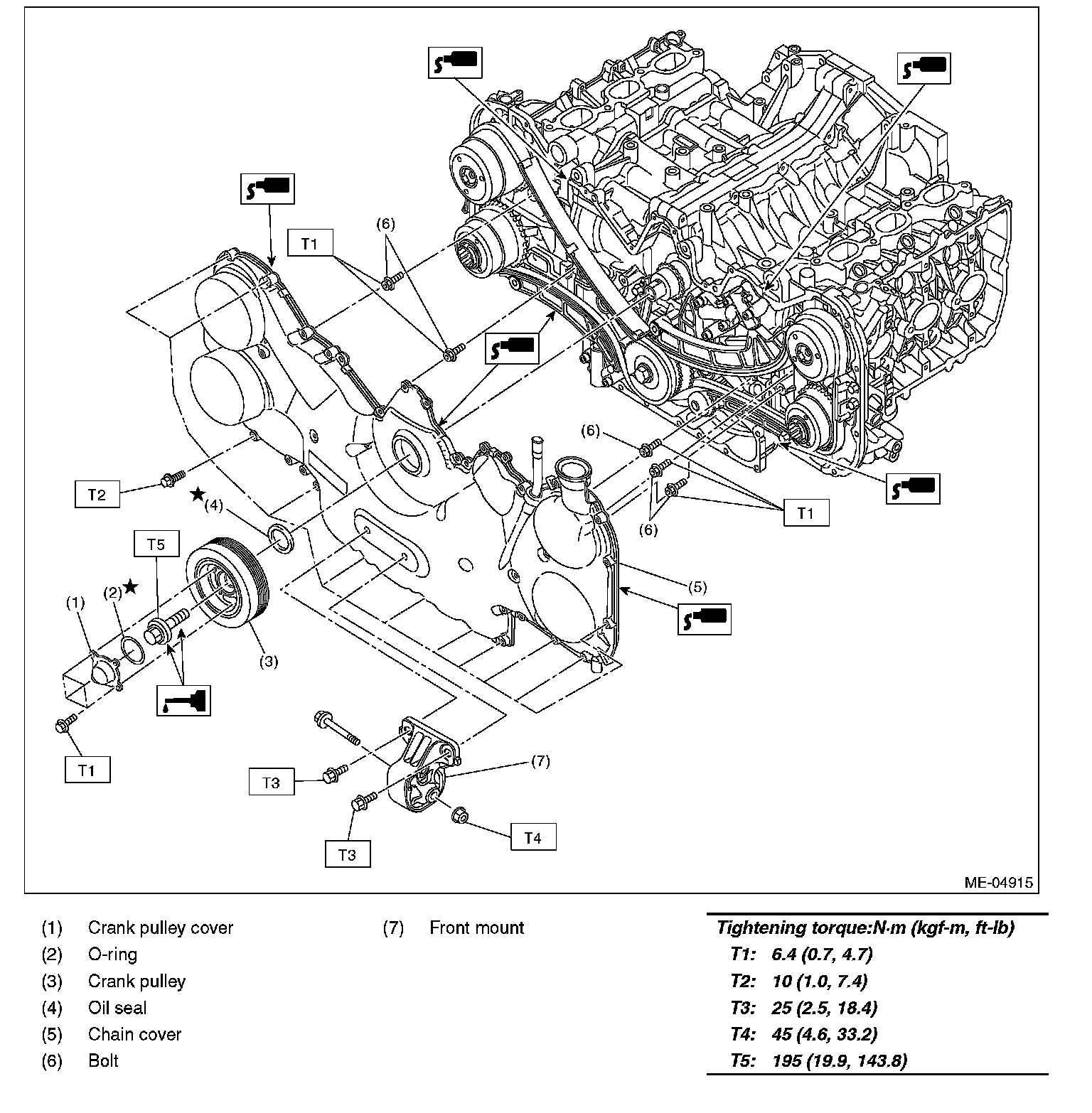

ENGINE MOUNTING
