Front Wheel Toe-In

When adjusting the toe-in, adjust it to the following value. Refer to , STEERING ANGLE , ADJUSTMENT, Wheel Alignment.

Toe-in: Adjustment value

0±2 mm (0±0.08 in)

1. Check that the left and right wheel steering angles are within specification.
2. Loosen the left and right side steering tie-rod lock nuts (a).
3. Turn the left and right tie-rods by equal amounts until the toe-in is at the specification.
   NOTE: Both the left and right tie-rods are right-hand threaded. To increase toe-in, turn both tie-rods clockwise by equal amount (viewing from the inside of vehicle).
4. Tighten the tie-rod lock nut.

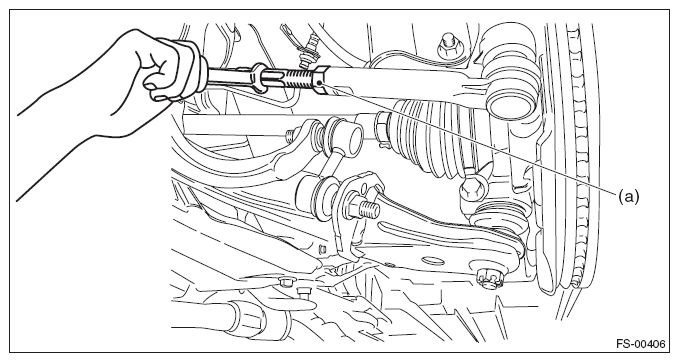

   Fig 1: Tightening Tie-Rod Lock Nut

   Courtesy of SUBARU OF AMERICA, INC.

   Tightening torque:

   85 N.m (8.67 kgf-m, 62.7 ft-lb)

5. Check and correct the tie-rod boot if twisted.
