Identification Number & Label Locations

The V.I.N. (Vehicle Identification Numbers) is used to classify the vehicle.

• POSITIONING OF THE PLATE LABEL FOR IDENTIFICATION

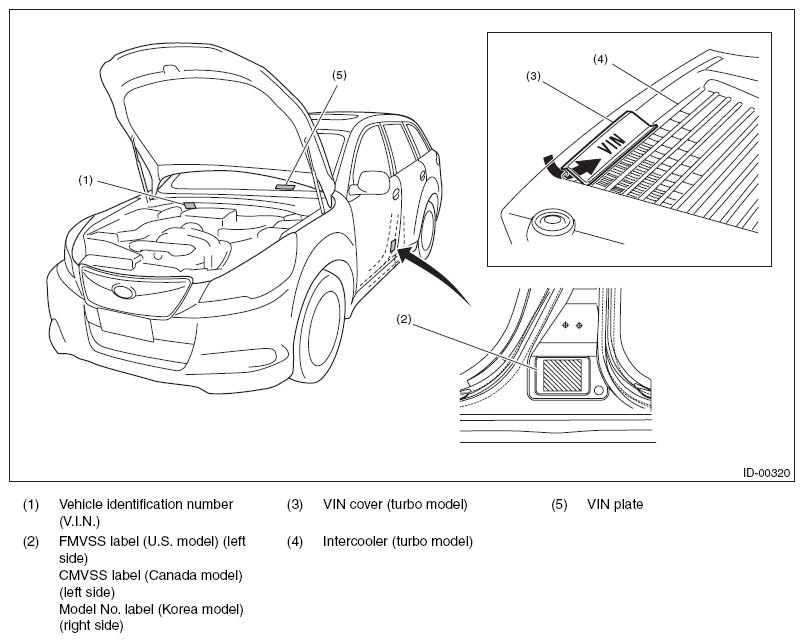

  Fig 1: Identifying Vehicle Identification Number And Label Locations

  Courtesy of SUBARU OF AMERICA, INC.
• ENGINE

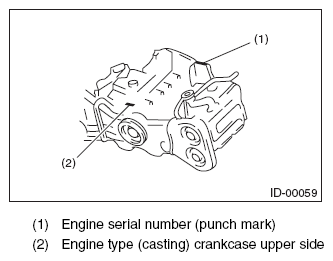

  Fig 2: Identifying Engine Serial Number And Engine Type Crankcase Side

  Courtesy of SUBARU OF AMERICA, INC.
• AUTOMATIC TRANSMISSION 5AT

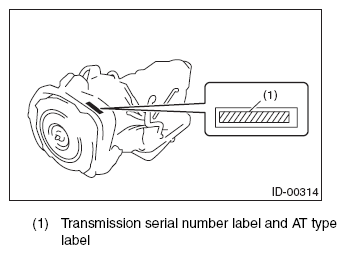

  Fig 3: Identifying Transmission Serial Number And AT Type Label (5AT)

  Courtesy of SUBARU OF AMERICA, INC.

  CVT

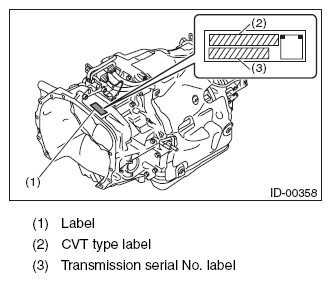

  Fig 4: Identifying Transmission Serial Number And CVT Type Label (CVT)

  Courtesy of SUBARU OF AMERICA, INC.
• MANUAL TRANSMISSION 6MT

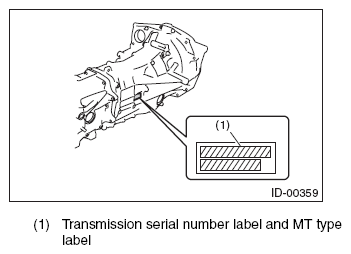

  Fig 5: Identifying Transmission Serial Number And MT Type Label (6MT)

  Courtesy of SUBARU OF AMERICA, INC.
• REAR DIFFERENTIAL T-type

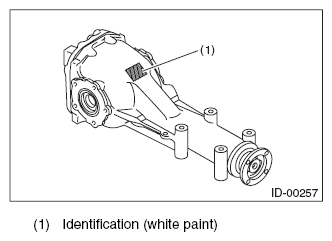

  Fig 6: Identifying Rear Differential Identification Mark (T-Type)

  Courtesy of SUBARU OF AMERICA, INC.

VA1-type

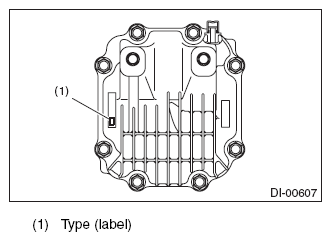

Fig 7: Identifying Rear Differential Identification Mark (VA1-Type)

Courtesy of SUBARU OF AMERICA, INC.

VA2-TYPE

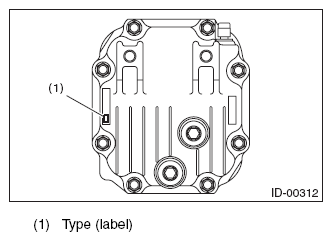

Fig 8: Identifying Rear Differential Identification Mark (VA2-Type)

Courtesy of SUBARU OF AMERICA, INC.

• FMVSS LABEL, CMVSS LABEL

  Example (FMVSS label)

  Fig 9: Identifying FMVSS Label And CMVSS Label

  Courtesy of SUBARU OF AMERICA, INC.
• Model number label
  Fig 10: Identifying Model Number Label

  Courtesy of SUBARU OF AMERICA, INC.
