Control Module

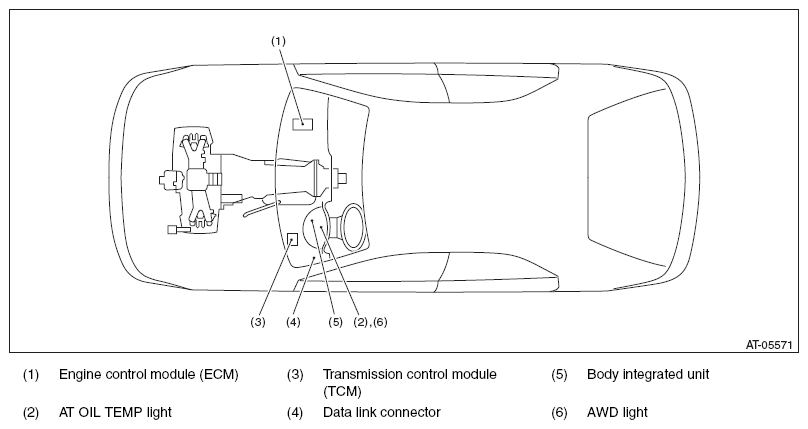

Fig 1: Identifying Control Module Location (1 Of 2)
G07913791Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Identifying Control Module Location (2 Of 2)
G07913747Courtesy of SUBARU OF AMERICA, INC.
