Engine harness assembly diagram 1

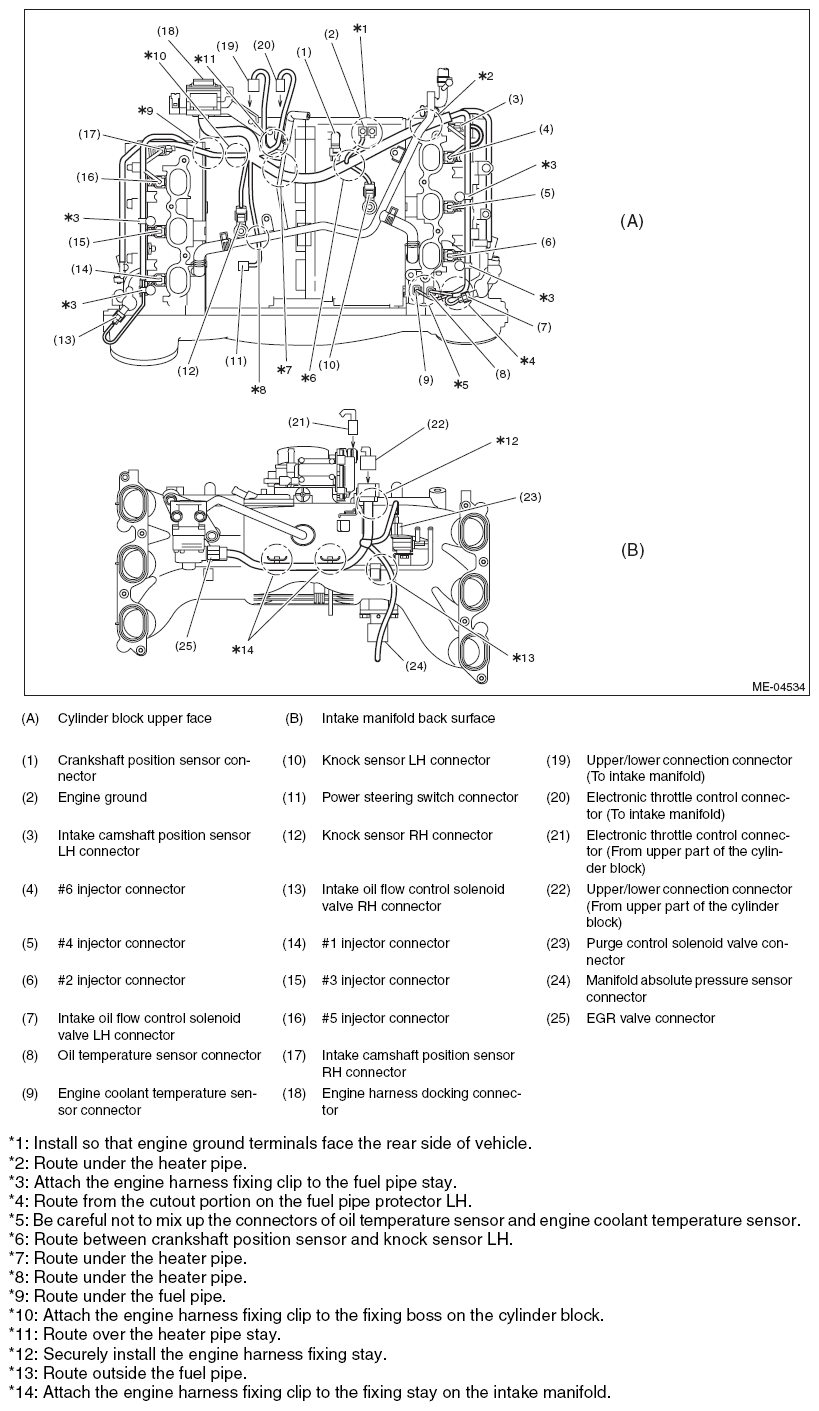

Fig 1: Engine Harness Assembly Diagram 1
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
