LH Side

  1. Remove the collector cover.
    NOTE: Follow the steps below when removing the collector cover.
    1. Pull up the two points at the rear (A).
    2. Pull up the two points at the front (B) while moving them forward.
    Fig 1: Removing Collector Cover
    G06651504Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the battery and battery carrier. Refer to BATTERY .
  3. Remove the engine harness stay (A).
  4. Disconnect the connector (B) from ignition coil.

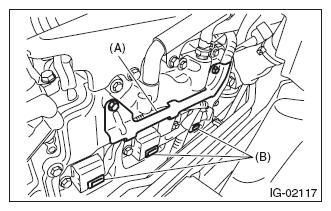

    Fig 2: Identifying Ignition Coil And Connector
    G07912961Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the ignition coil.
    NOTE: Turn the #6 ignition coil to remove it.
  6. Remove the spark plug with a spark plug socket.

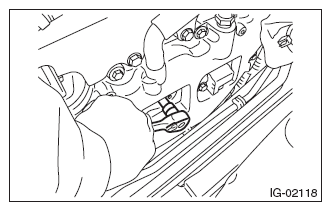

Fig 3: Removing Spark Plug With Spark Plug Socket
G07912962Courtesy of SUBARU OF AMERICA, INC.

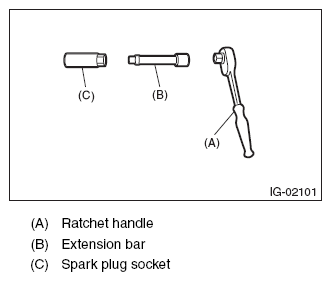

Fig 4: Identifying Ratchet Handle, Extension Bar And Spark Plug Socket
G07912963Courtesy of SUBARU OF AMERICA, INC.
