RH Side

  1. Remove the collector cover.
    NOTE: Follow the steps below when removing the collector cover.
    1. Pull up the two points at the rear (A).
    2. Pull up the two points at the front (B) while moving them forward.
    Fig 1: Removing Collector Cover
    G06651504Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground cable from battery.
  3. Remove the air cleaner case. Refer to AIR CLEANER CASE .
  4. Remove the engine harness stay (A).
  5. Disconnect the connector (B) from ignition coil.

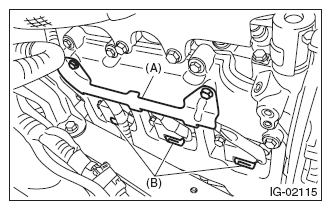

    Fig 2: Identifying Engine Harness Stay And Connector
    G07912957Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the ignition coil.
    NOTE: Turn the #5 ignition coil to remove it.
  7. Remove the spark plug with a spark plug socket.

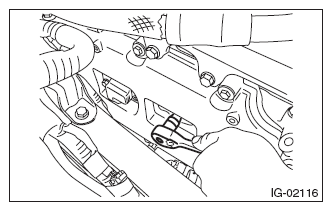

Fig 3: Removing Spark Plug With Spark Plug Socket
G07912958Courtesy of SUBARU OF AMERICA, INC.

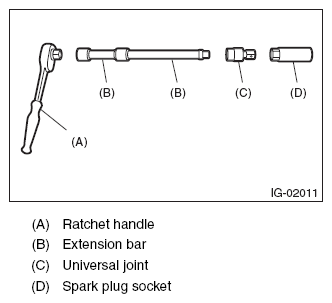

Fig 4: Identifying Ratchet Handle, Extension Bar, Universal Joint And Spark Plug Socket
G07912959Courtesy of SUBARU OF AMERICA, INC.
