General Scan Tool
- Check that no DTC remains after clearing memory. Refer to , MODE $04 (CLEAR/RESET EMISSION-RELATED DIAGNOSTIC INFORMATION) , OPERATION, General Scan Tool.
- Warm up the engine.

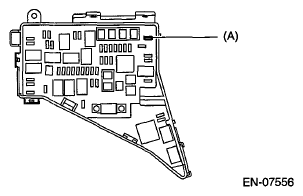

- Install the delivery (test) mode fuse (A) of the main fuse box.
- Connect the general scan tool to data link connector located in the lower portion of the instrument panel (on the driver's side).CAUTION: Do not connect any scan tools except Subaru Select Monitor or general scan tool.
- Start the engine.NOTE: Make sure the select lever is placed in "P" position before starting.
- Turn the neutral position switch to ON by operating select lever.
- Depress the brake pedal to turn the brake switch ON.
- Keep the engine speed in 2, 500 - 3, 000 RPM range for 40 seconds.
- Place the select lever in "D" range and drive the vehicle at 5 to 10 km/h (3 to 6 MPH).NOTE:
- For AWD model, release the parking brake.
- The speed difference between front and rear wheels may illuminate the ABS warning light, but this does not indicate a malfunction. When engine control system diagnosis is finished, perform the VDC memory clearance procedure of self-diagnosis function. Refer to RELEASING OF FUEL PRESSURE Clear Memory Mode.
- Using the general scan tool, check for DTC and record the result(s).NOTE:
- For detailed operation procedures, refer to the general scan tool operation manual.
- For details concerning DTC, refer to LIST OF DIAGNOSTIC TROUBLE CODE (DTC)
.
Refer to , LIST OF DIAGNOSTIC TROUBLE CODE (DTC) .
