Transfer Case, Extension Case & Reduction Gear

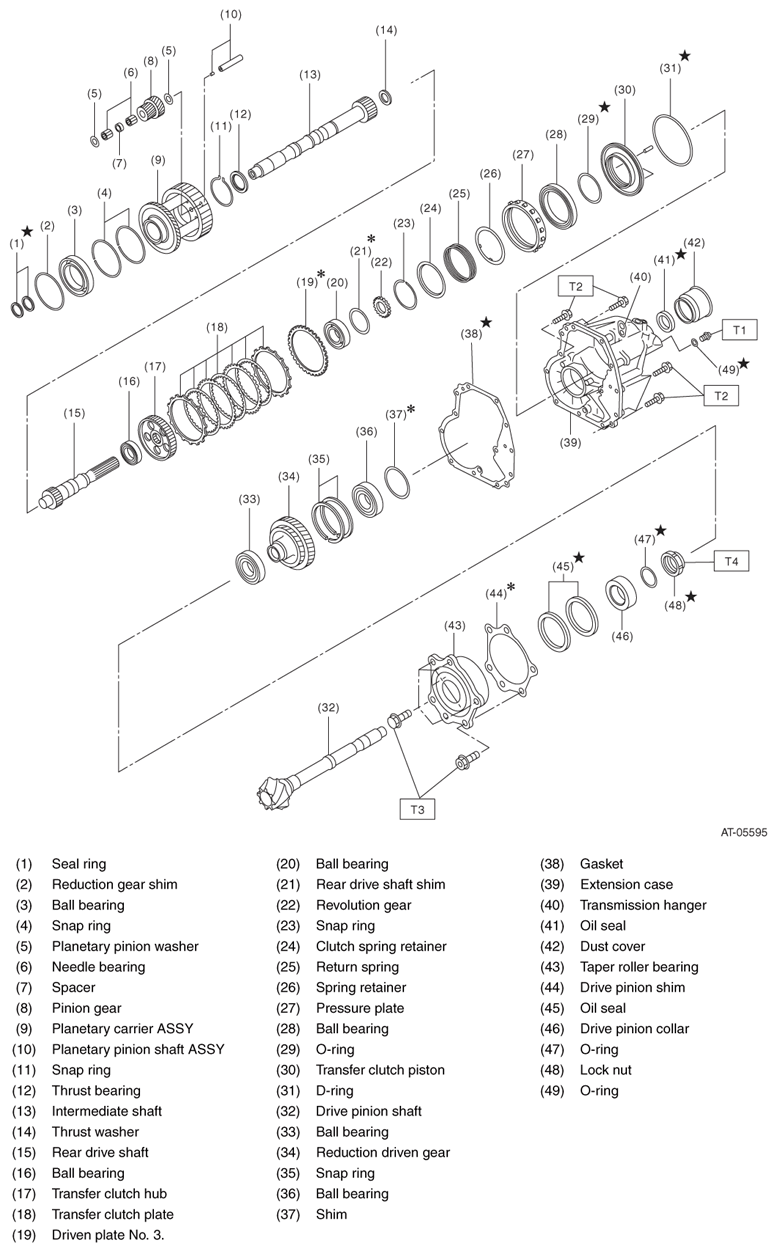

Fig 1: Exploded View Of Transfer Case, Extension Case And Reduction Gear

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 13 (1.3, 9.6)

T2: 25 (2.5, 18.4)

T3: 70 (7.1, 51.6)

T4: 116 (11.8, 85.6)
