Transmission Control Module (TCM): Installation

Install the TCM to the bracket.
CAUTION: Do not remove the TCM after installed to the bracket, or the bracket and TCM may be damaged. If installed by mistake, the part must be replaced with a new part.
Install the TCM.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

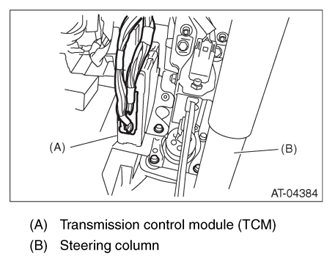

Fig 1: Identifying Transmission Control Module And Steering Column
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to TCM.
Install the instrument panel lower cover. Refer to INSTRUMENT PANEL LOWER COVER .
Perform Clear Memories 2 operation. Refer to CLEAR MEMORY MODE .
Perform learning operation. Refer to LEARNING CONTROL .
