Body and Frame: Locations

Panel Components

COMPONENTS

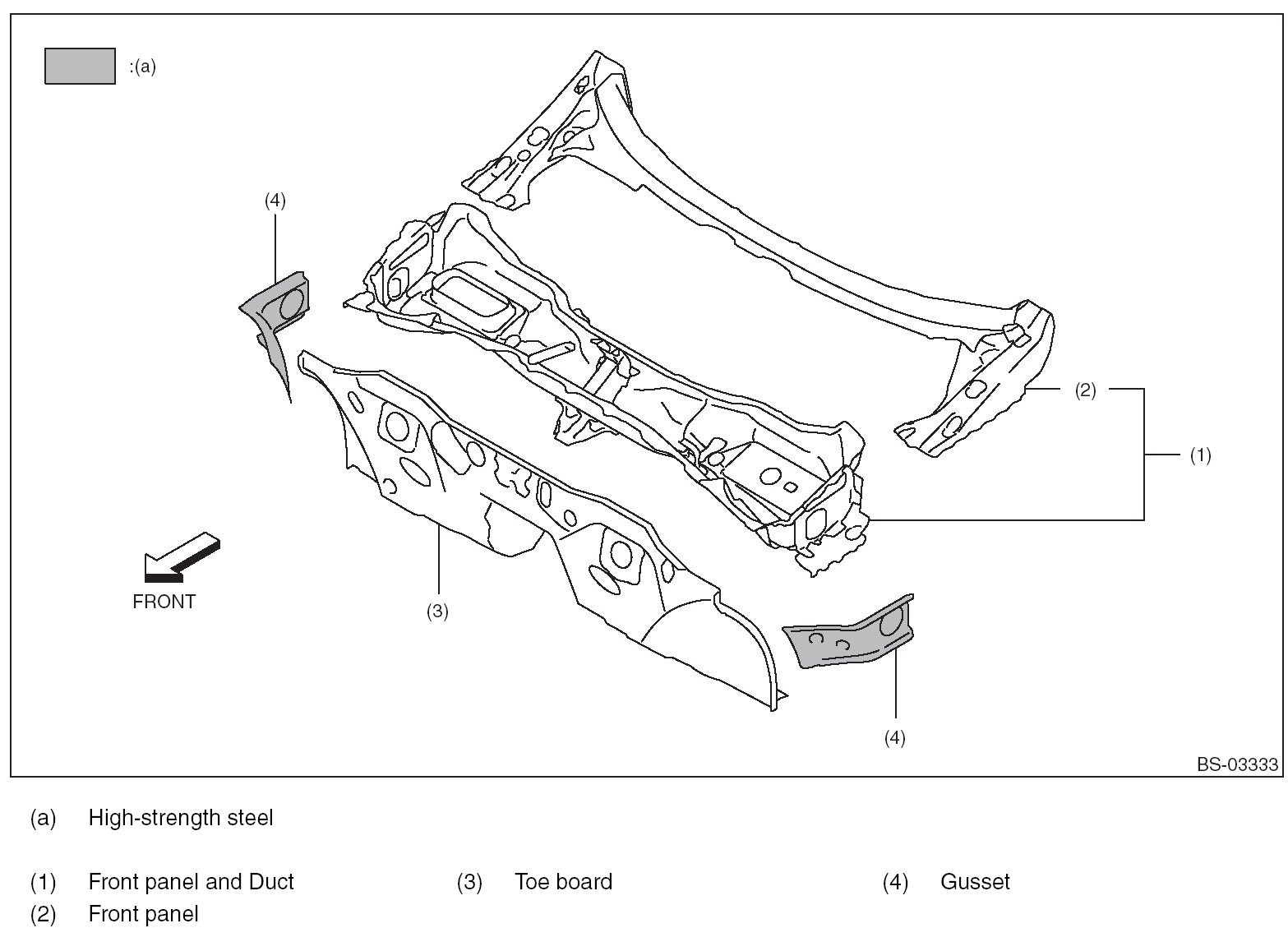

1. TOE BOARD & FRONT PANEL

Toe Board & Front Panel:

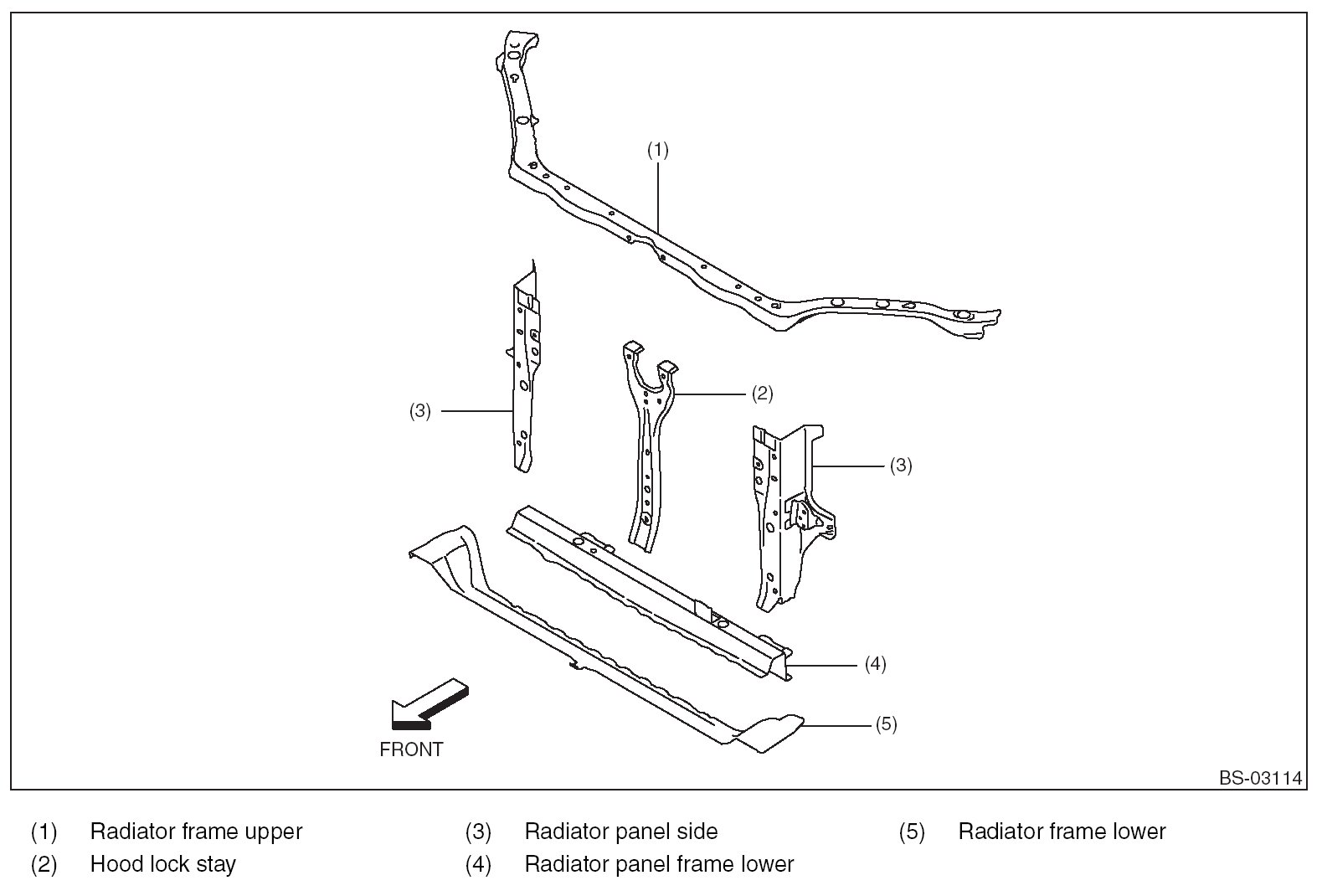

2. RADIATOR PANEL

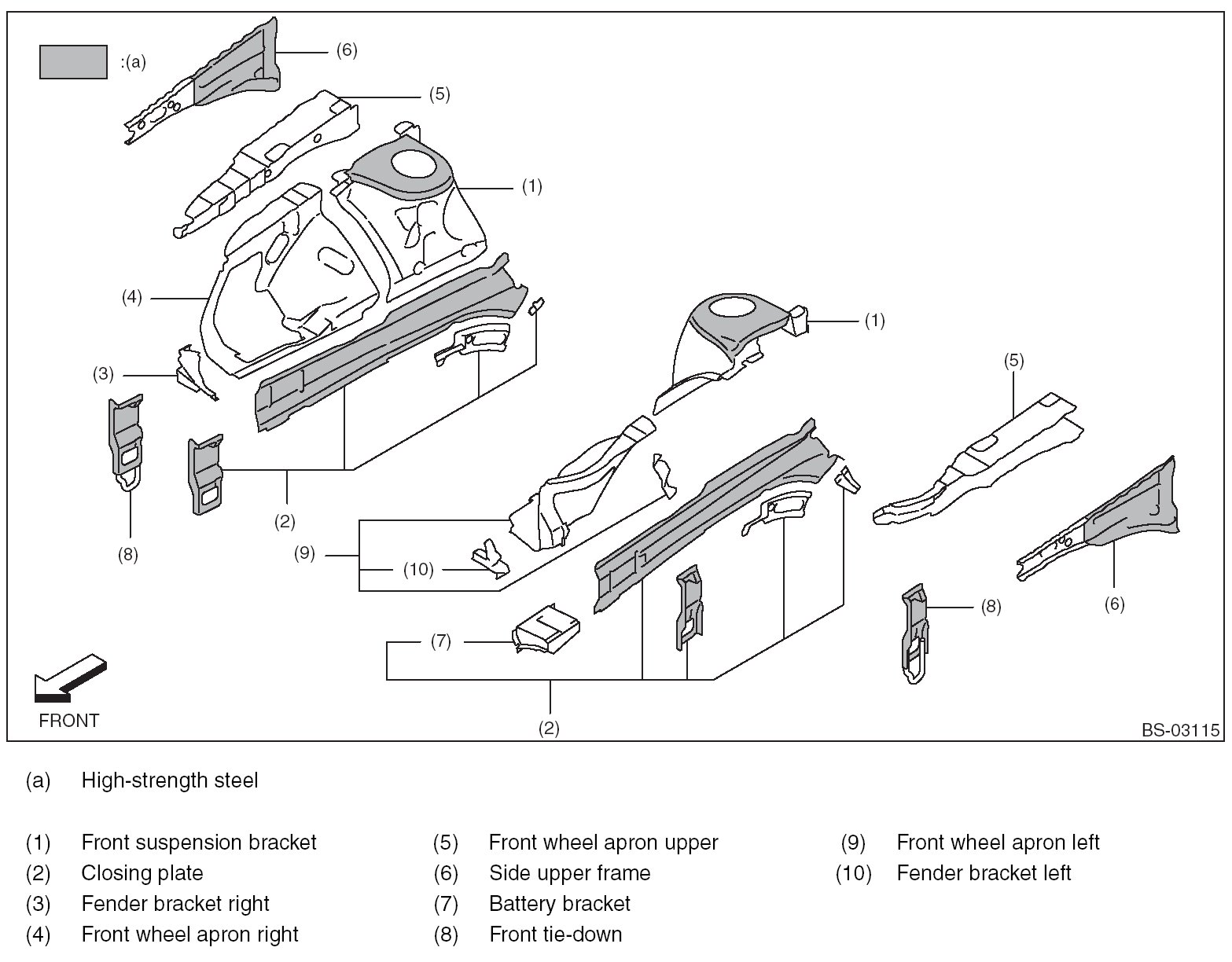

3. FRONT WHEEL APRON

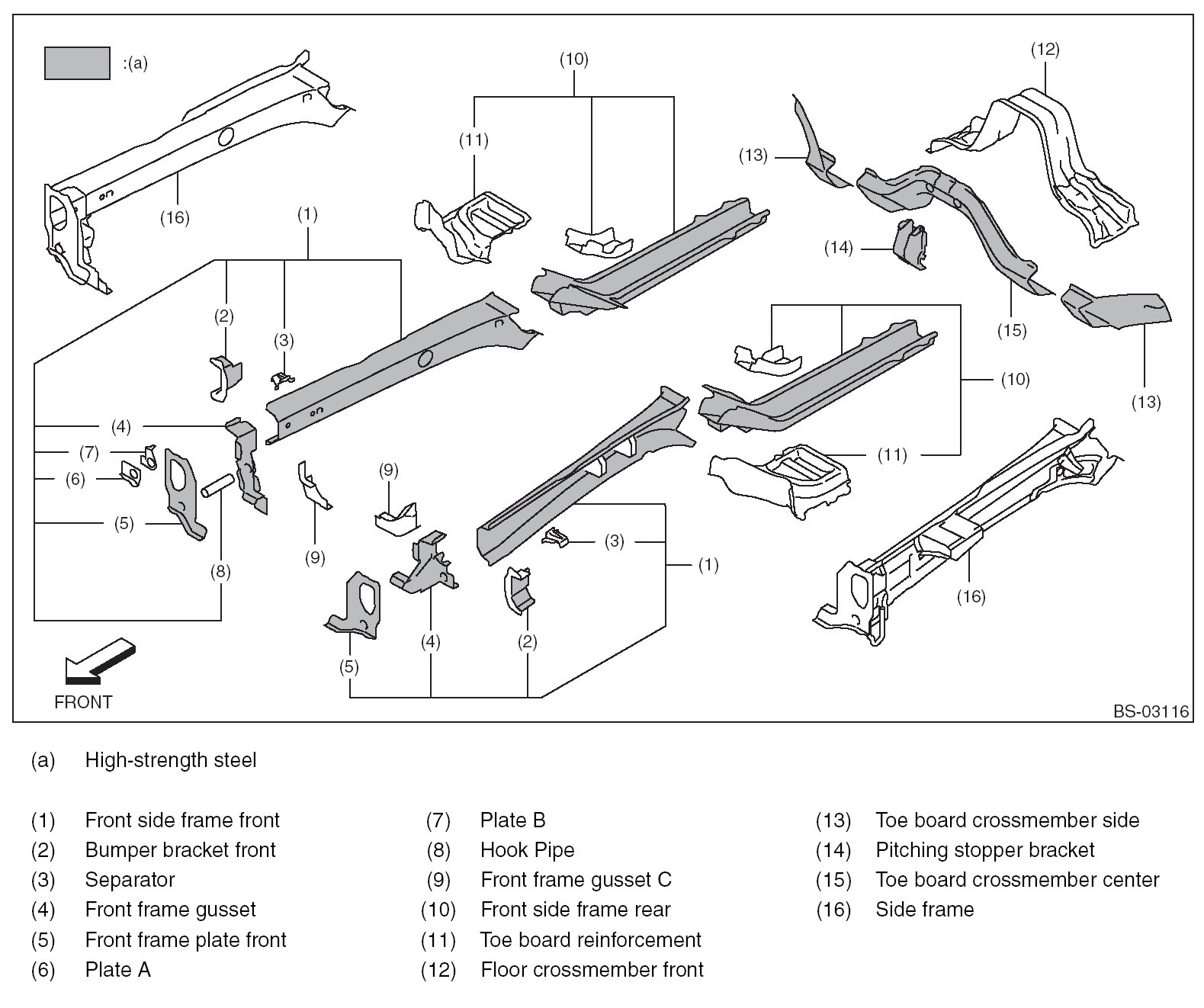

4. FRONT SIDE FRAME

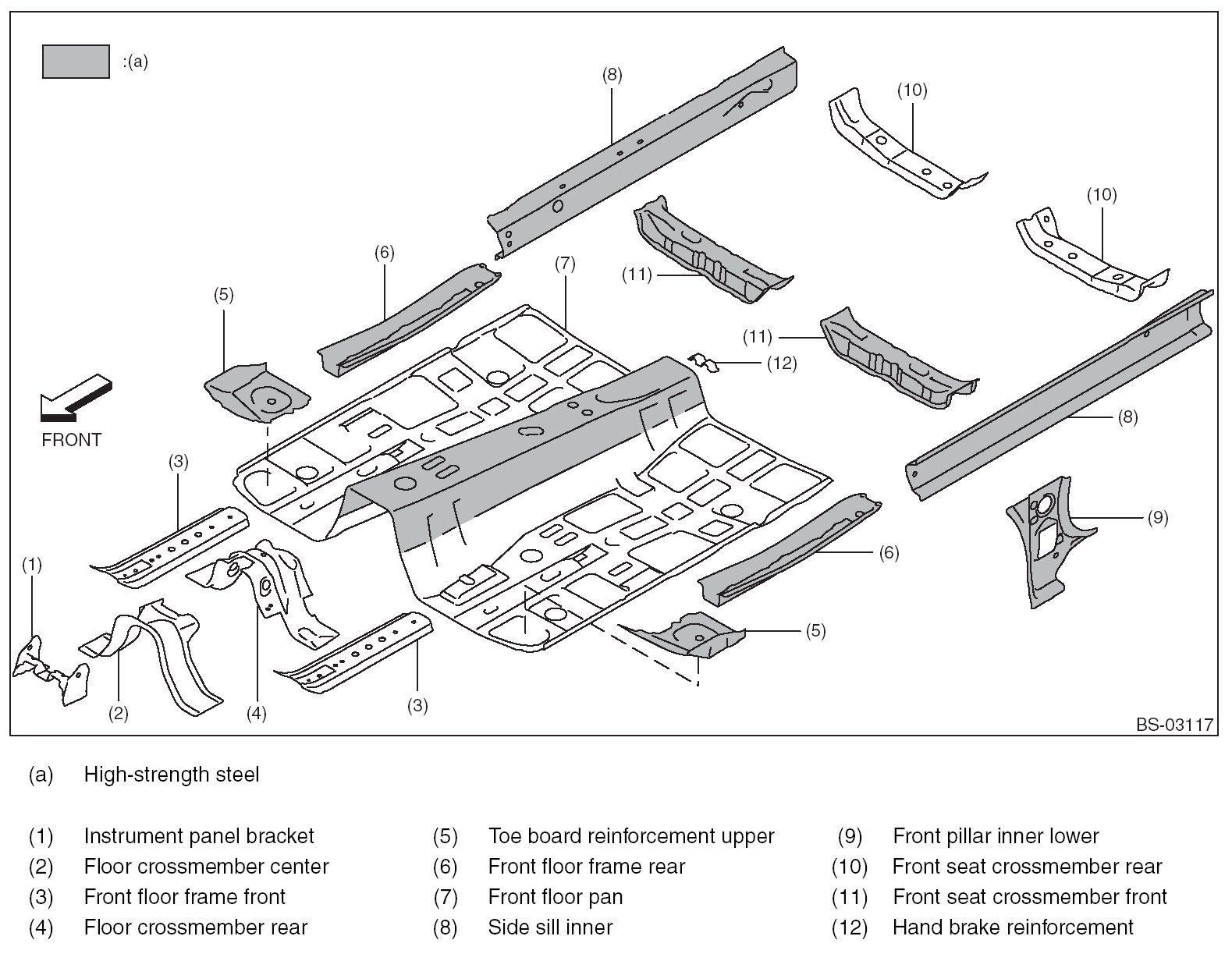

5. FRONT FLOOR PANEL

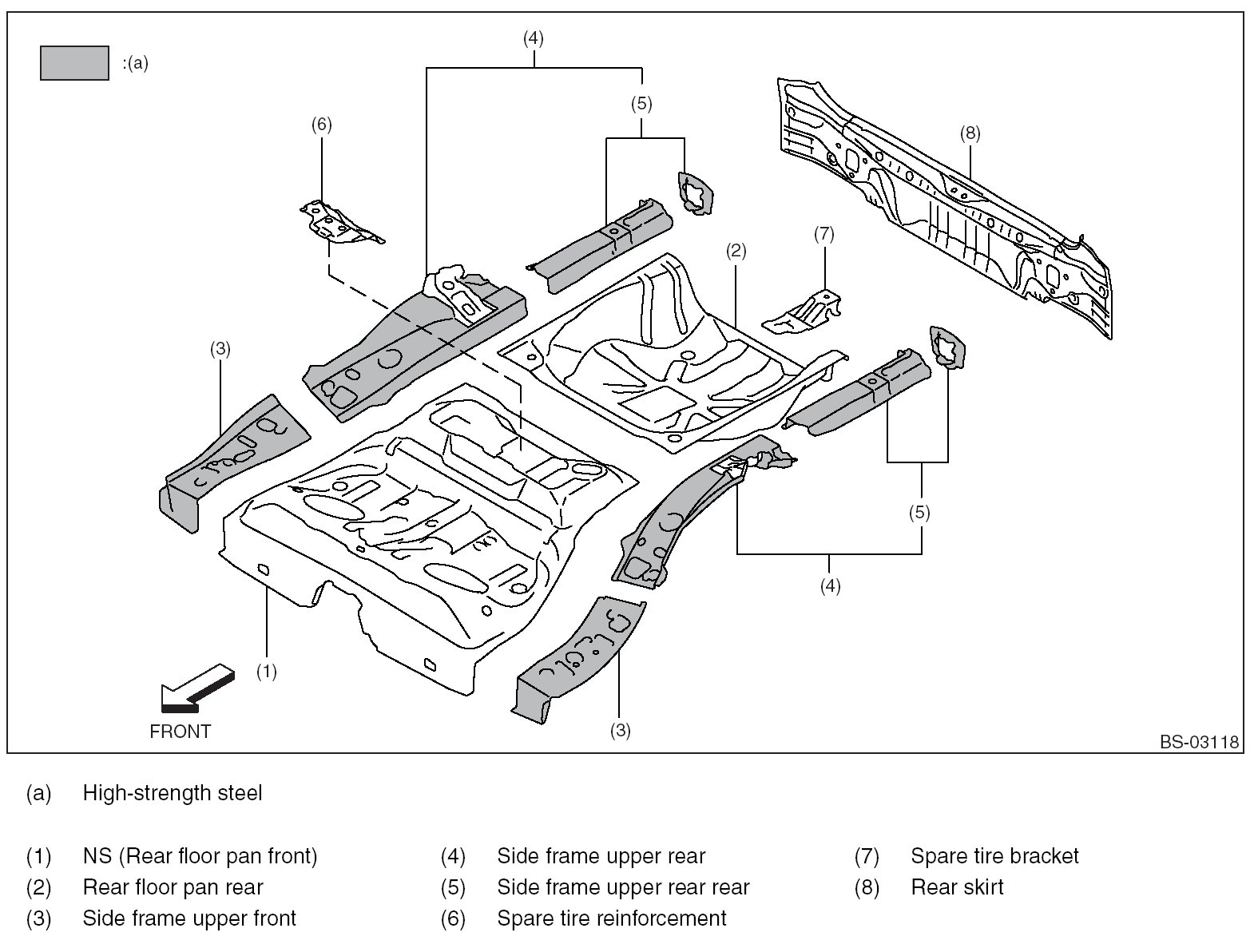

6. REAR FLOOR PANEL & REAR SKIRT

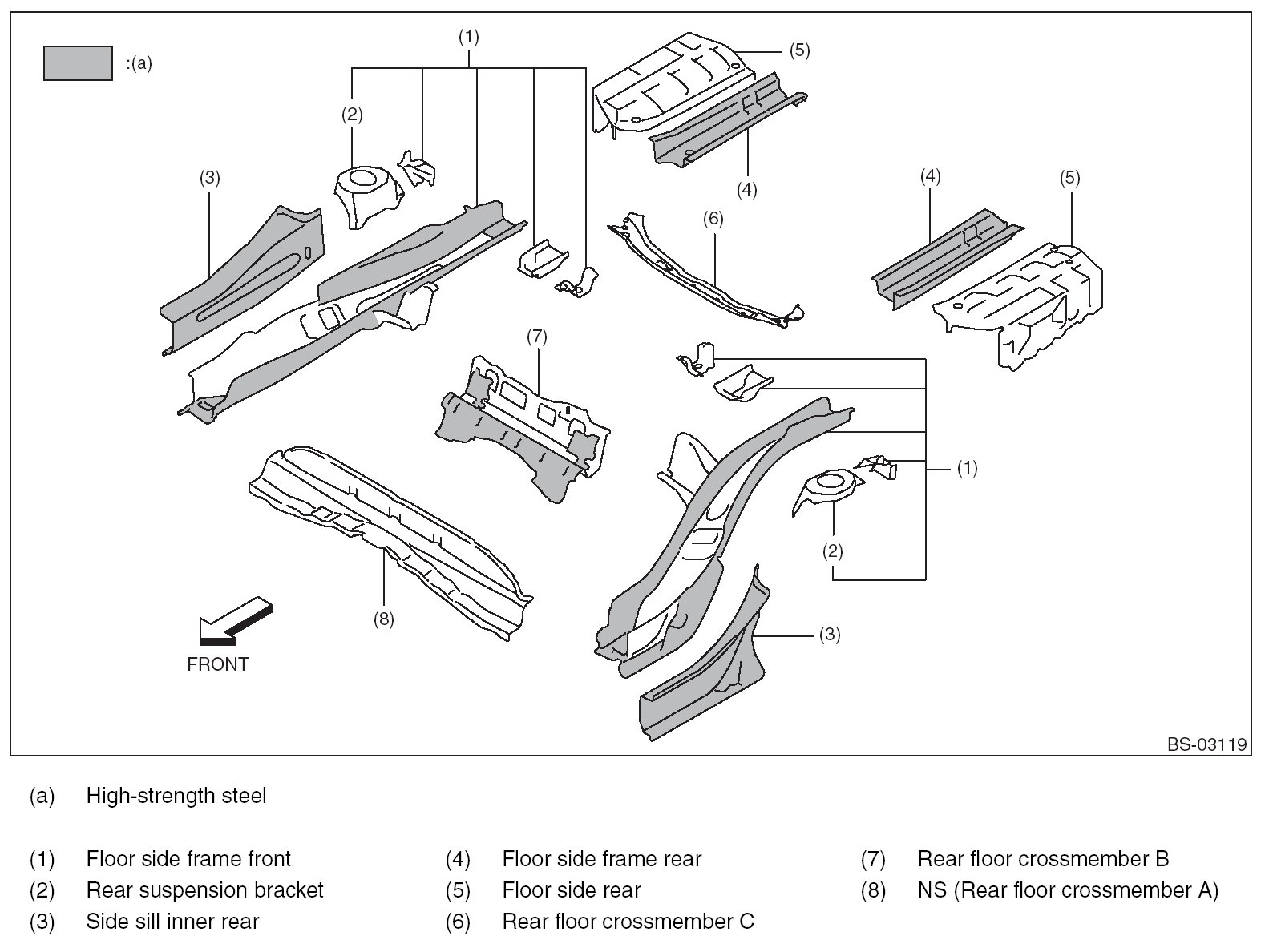

7. REAR FLOOR SIDE FRAME

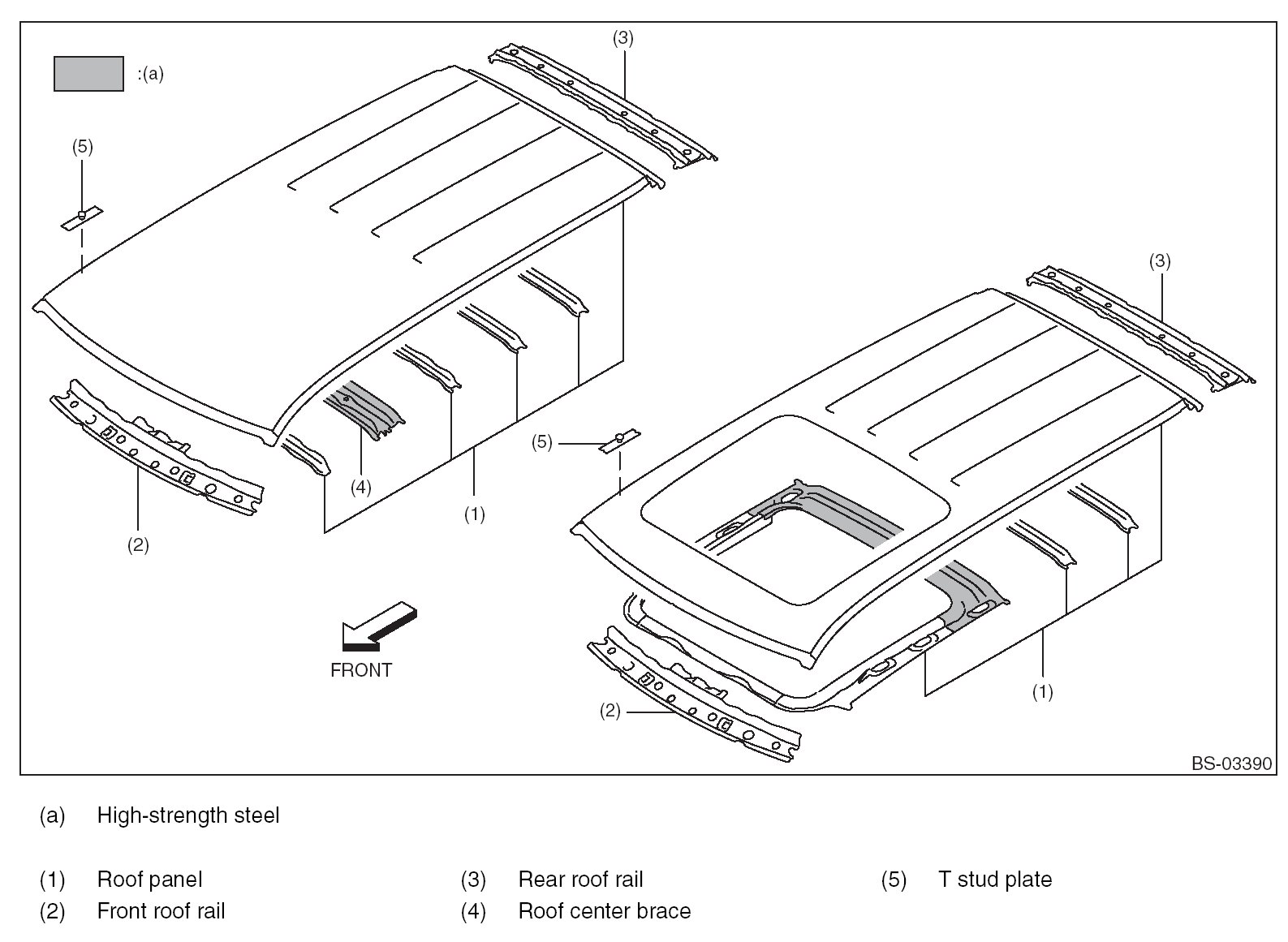

8. ROOF

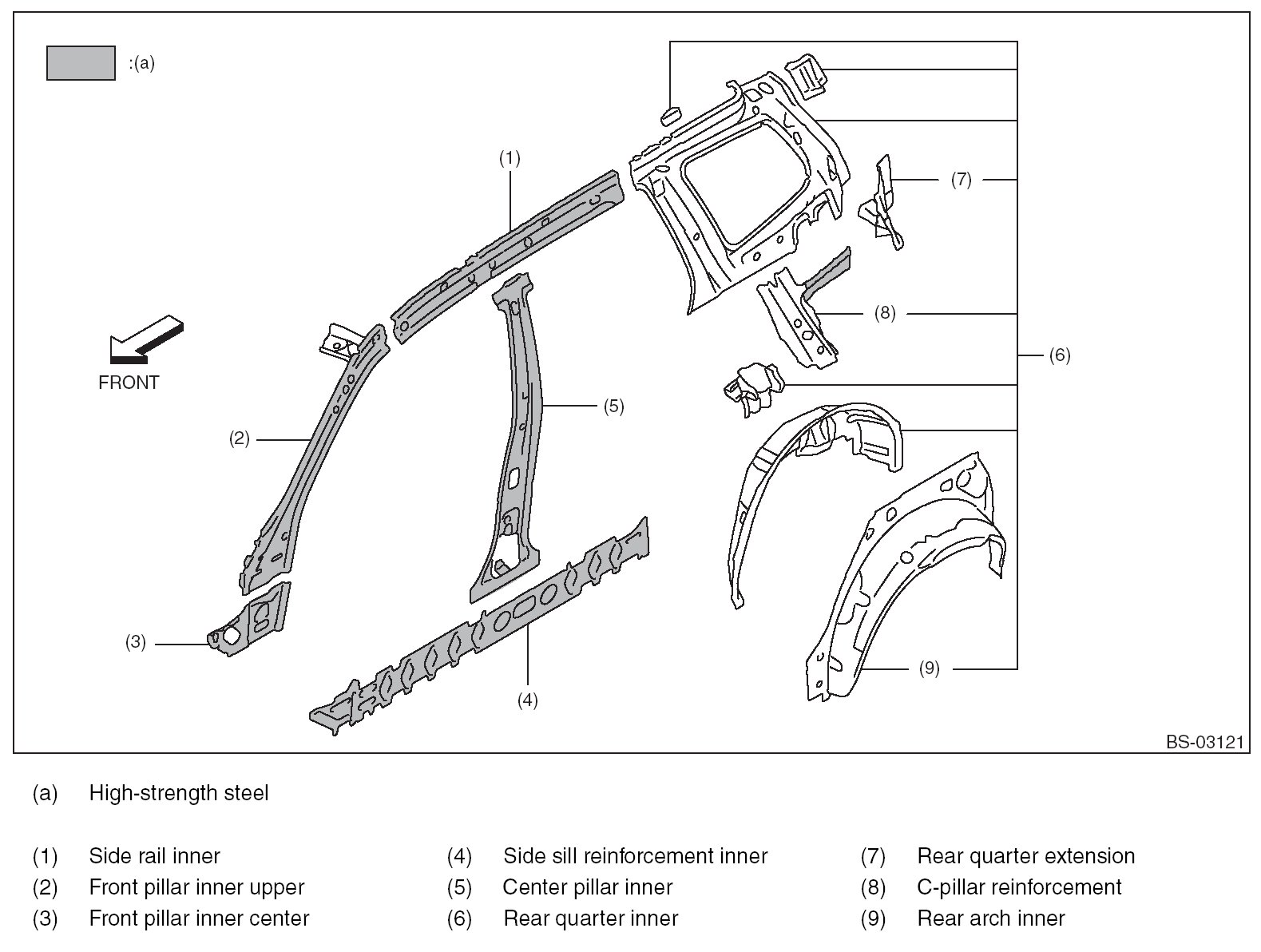

9. SIDE PANEL INNER

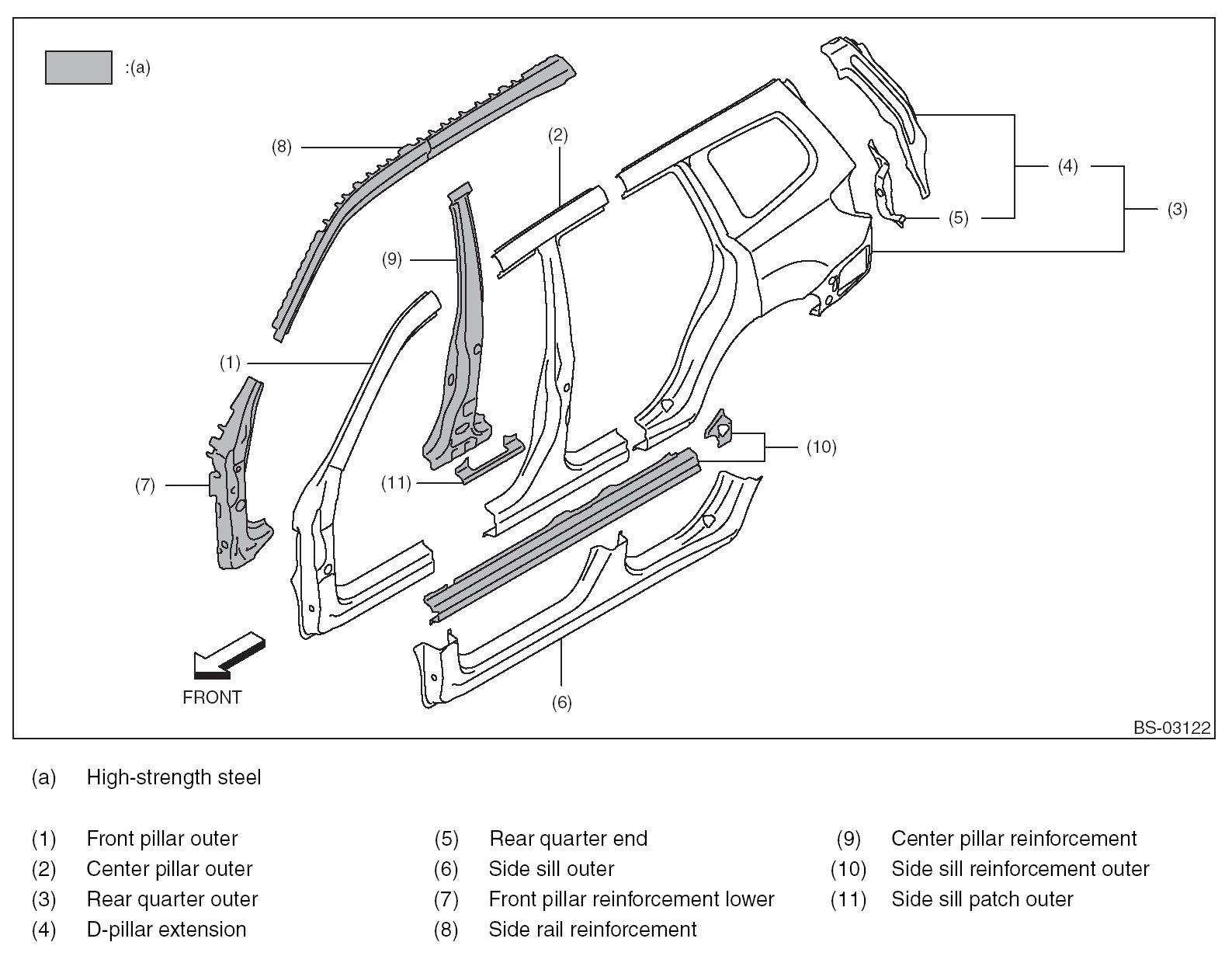

10. SIDE PANEL OUTER
