Removal and Installation

TRANSMITTER

REMOVAL

TRANSMITTER BATTERY

CAUTION: To prevent static electricity damage to the transmitter printed circuit board, touch the steel area of building with hand to discharge static electricity carried on body or clothes before disassembling the transmitter.

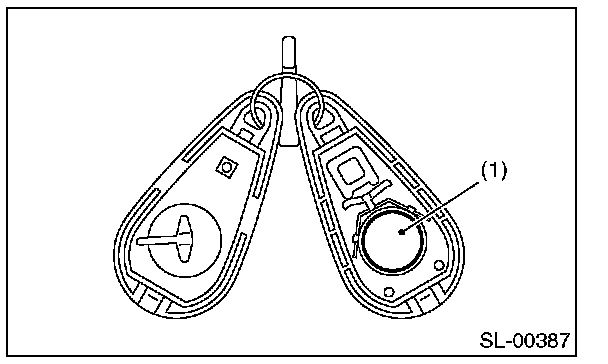

Remove the battery (1) from the transmitter.






INSTALLATION

TRANSMITTER BATTERY
Install each part in the reverse order of removal.
