Exhaust Gas Recirculation

COMPONENT

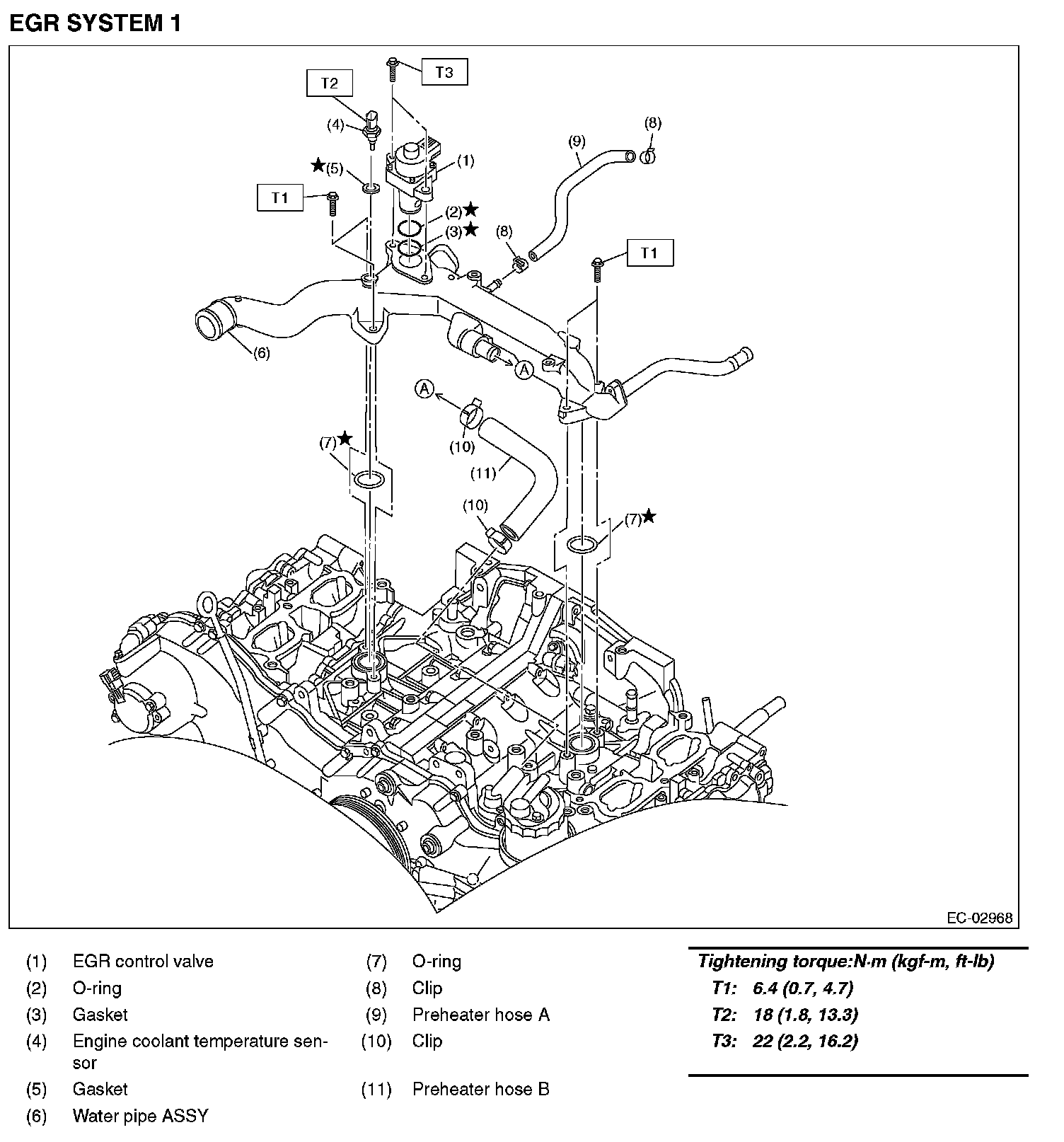

EGR SYSTEM 1

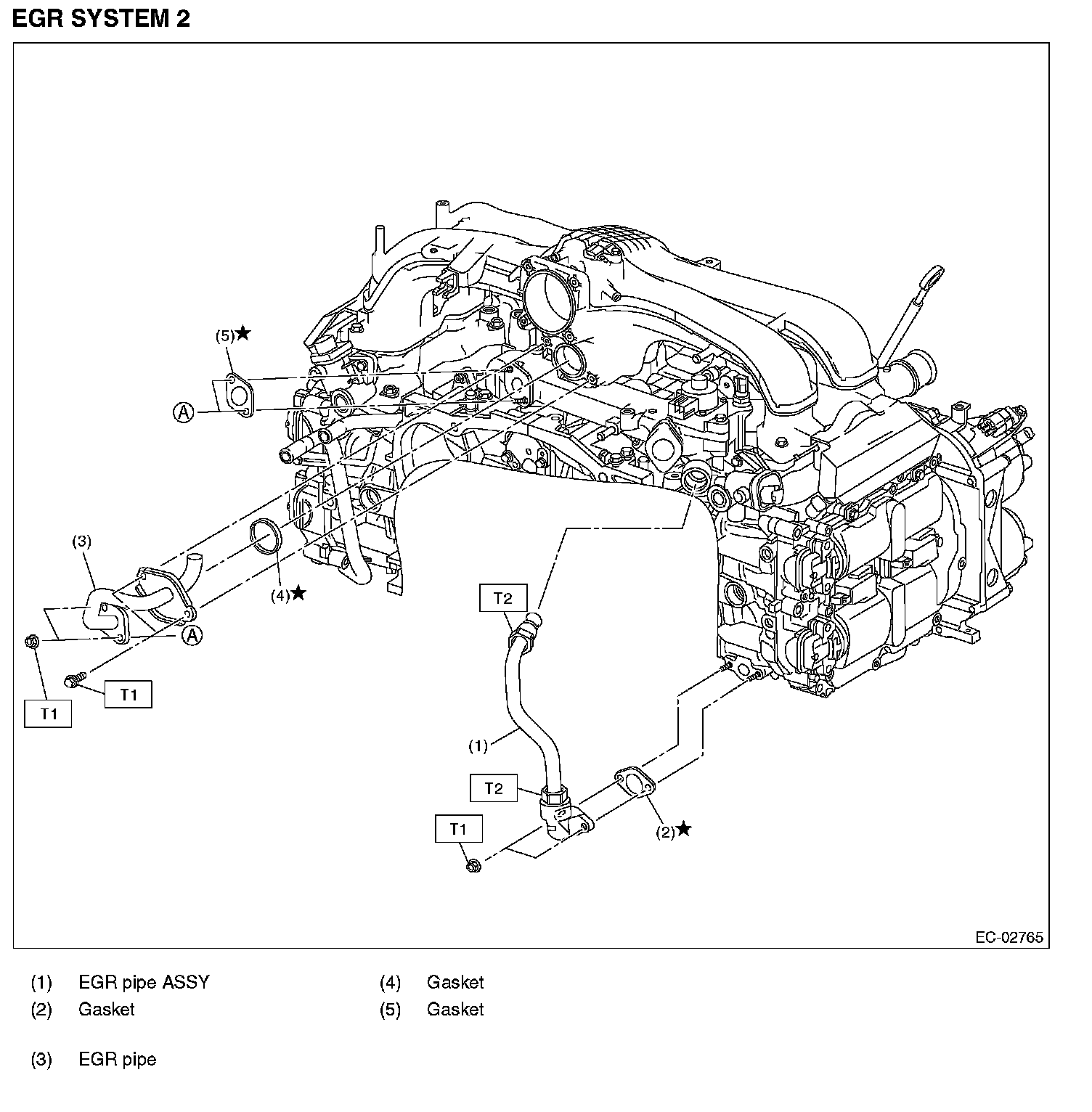

EGR SYSTEM 2






Tightening torque: N.m (kgf.m, ft.lb)
T1: 6.4 (0.7, 4.7)
T2: 8 (0.8, 5.9)
