Control Unit (Auto A/C Model)

CONTROL UNIT (AUTO A/C MODEL)

REMOVAL
1. Disconnect the ground cable from battery.
2. Remove the ornament panel.

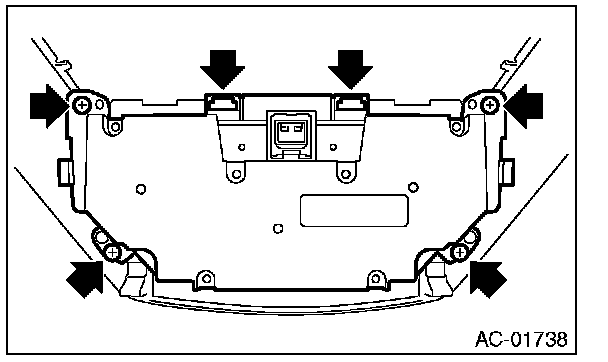

3. Remove the screws and claws, and remove the control module from the ornament panel RH.






INSTALLATION
Install each part in the reverse order of removal.

Tightening torque: T: 2 N.m (0.20 kgf-m, 1.48 ft-lb)
