Main Relay (Computer/Fuel System): Service and Repair

MAIN RELAY

REMOVAL

1. Disconnect the ground cable from battery.






2. Remove the glove box lower cover.

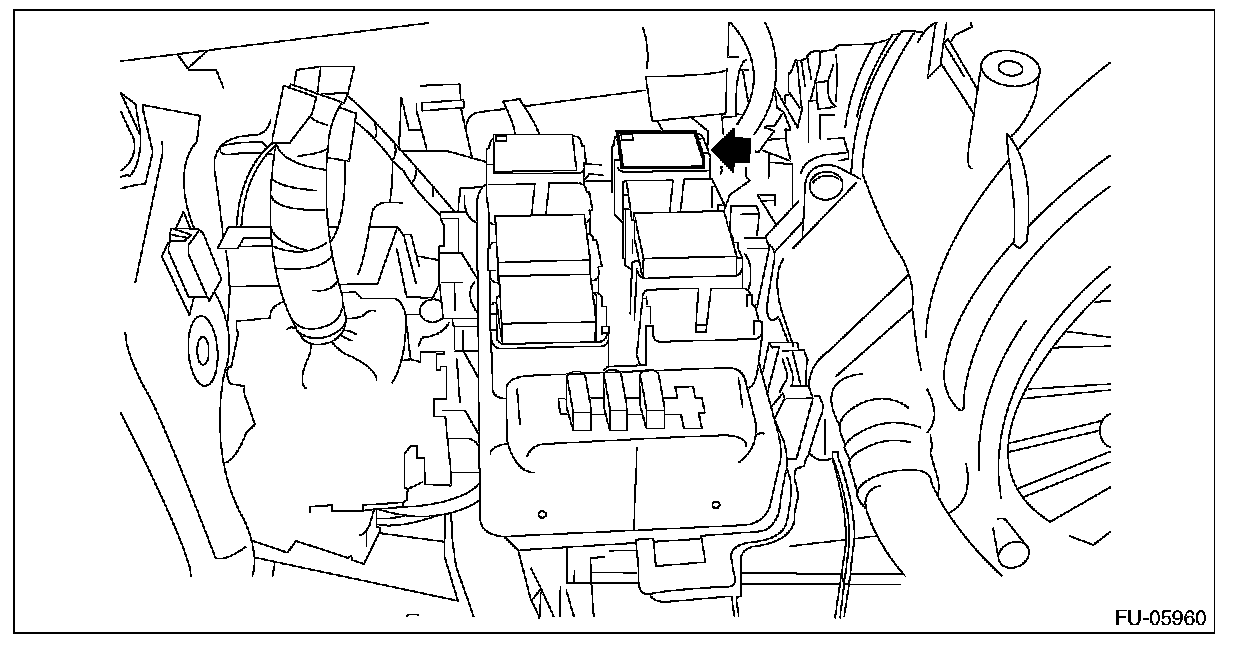

3. Remove the main relay from the relay block on the back side of the glove box.






INSTALLATION

Install in the reverse order of removal.
