Keyless Entry System
KEYLESS ENTRY SYSTEMELECTRICAL SPECIFICATION

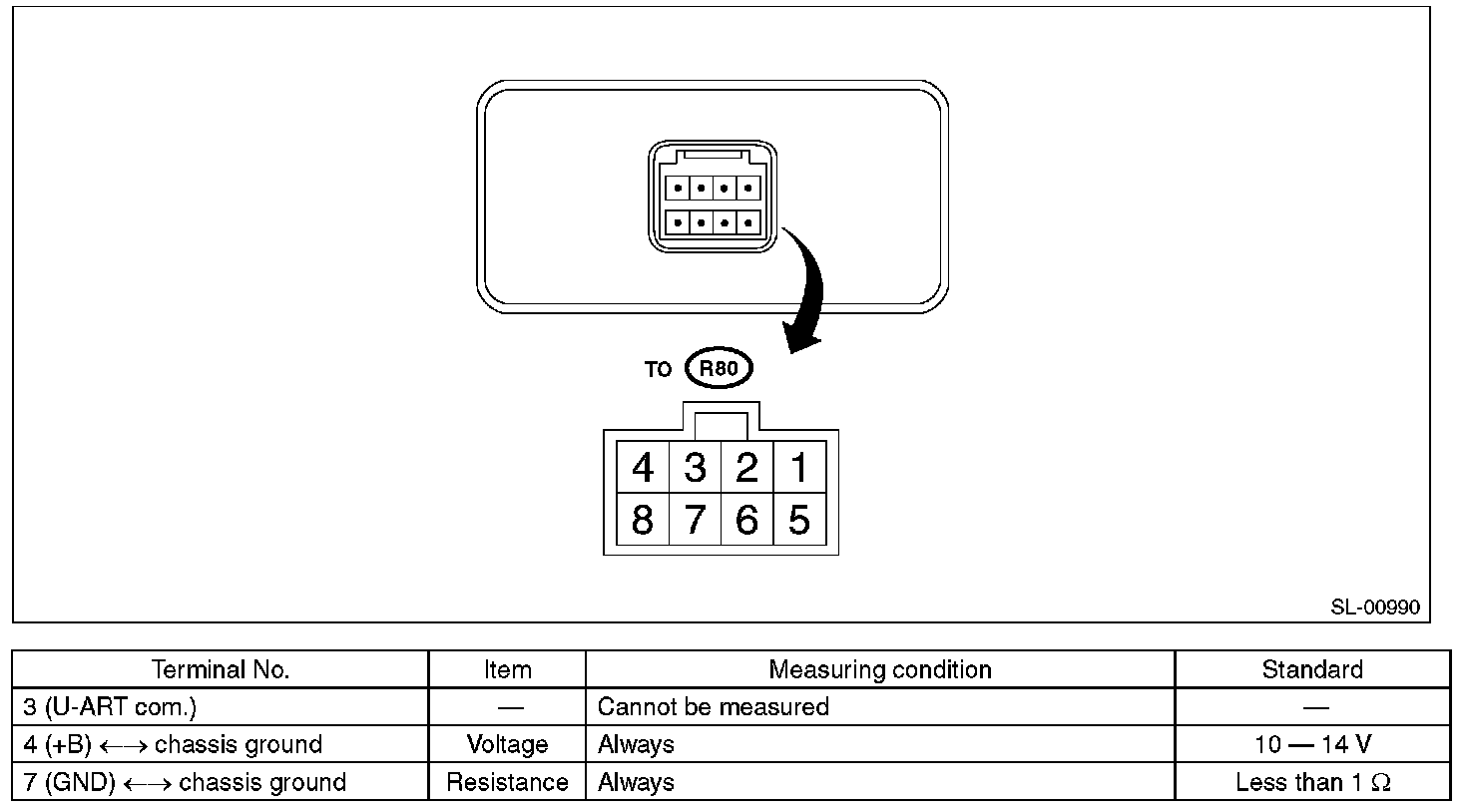

1. KEYLESS ENTRY CONTROL MODULE
- Model without tire pressure monitoring system

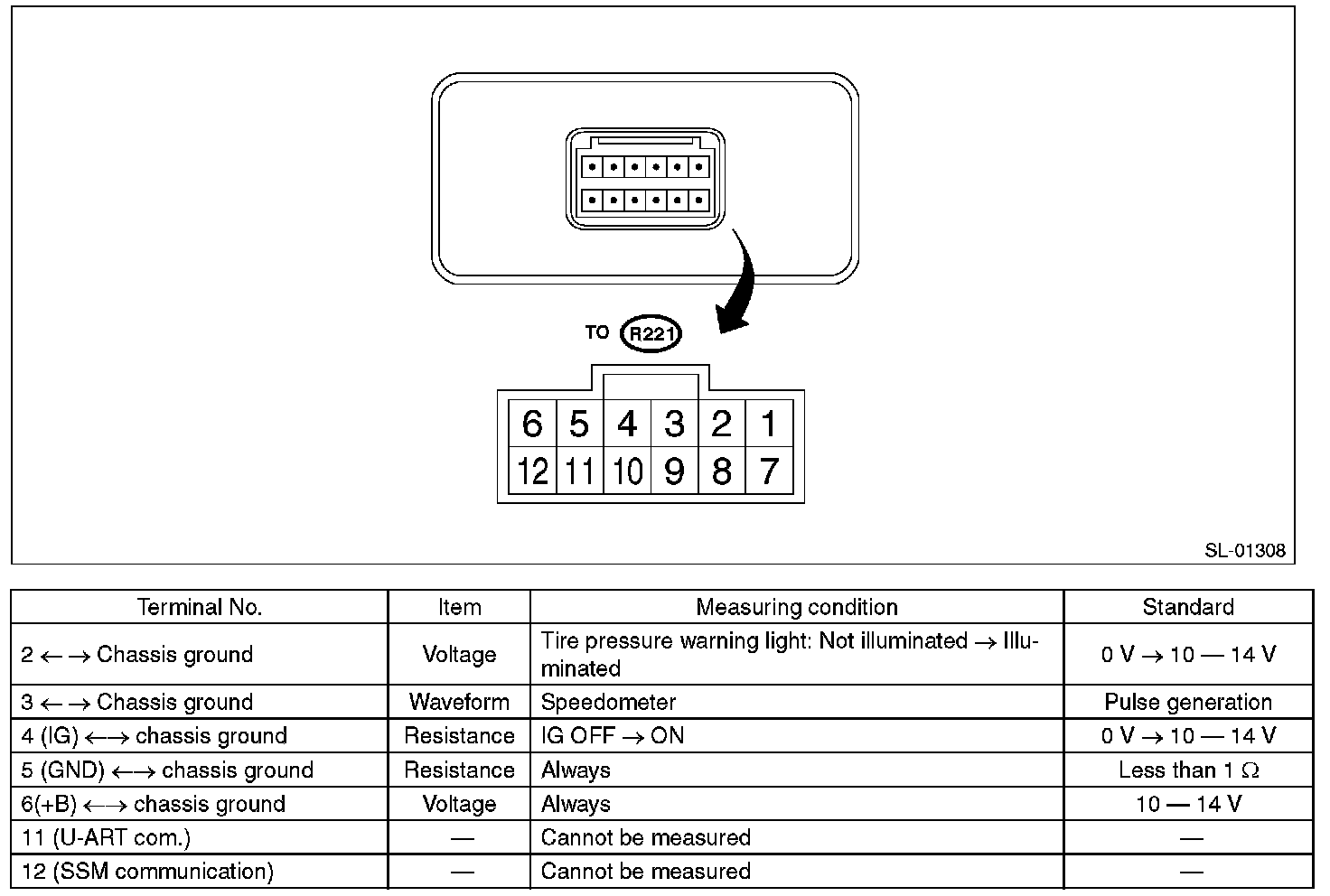

- Model with tire pressure monitoring system

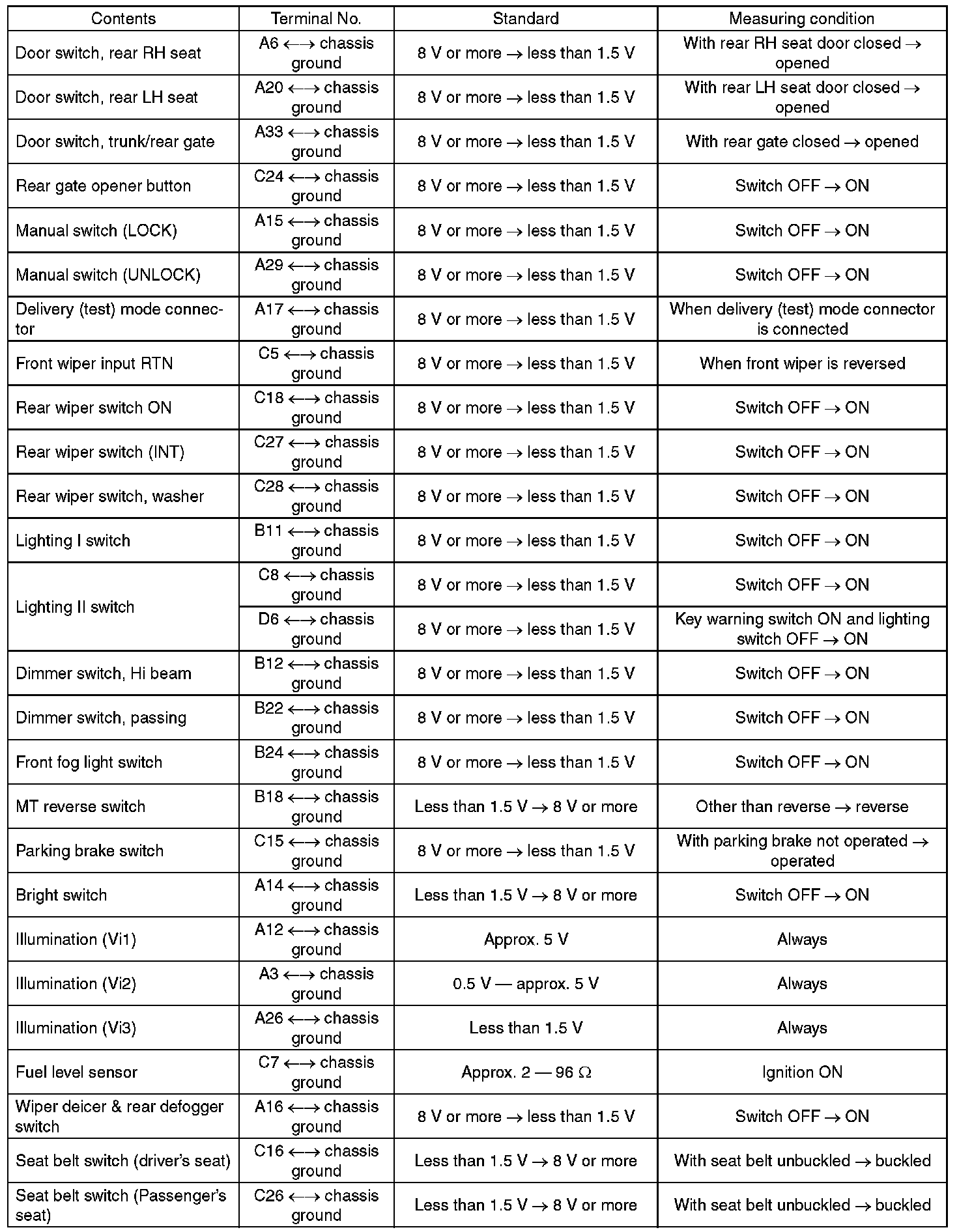

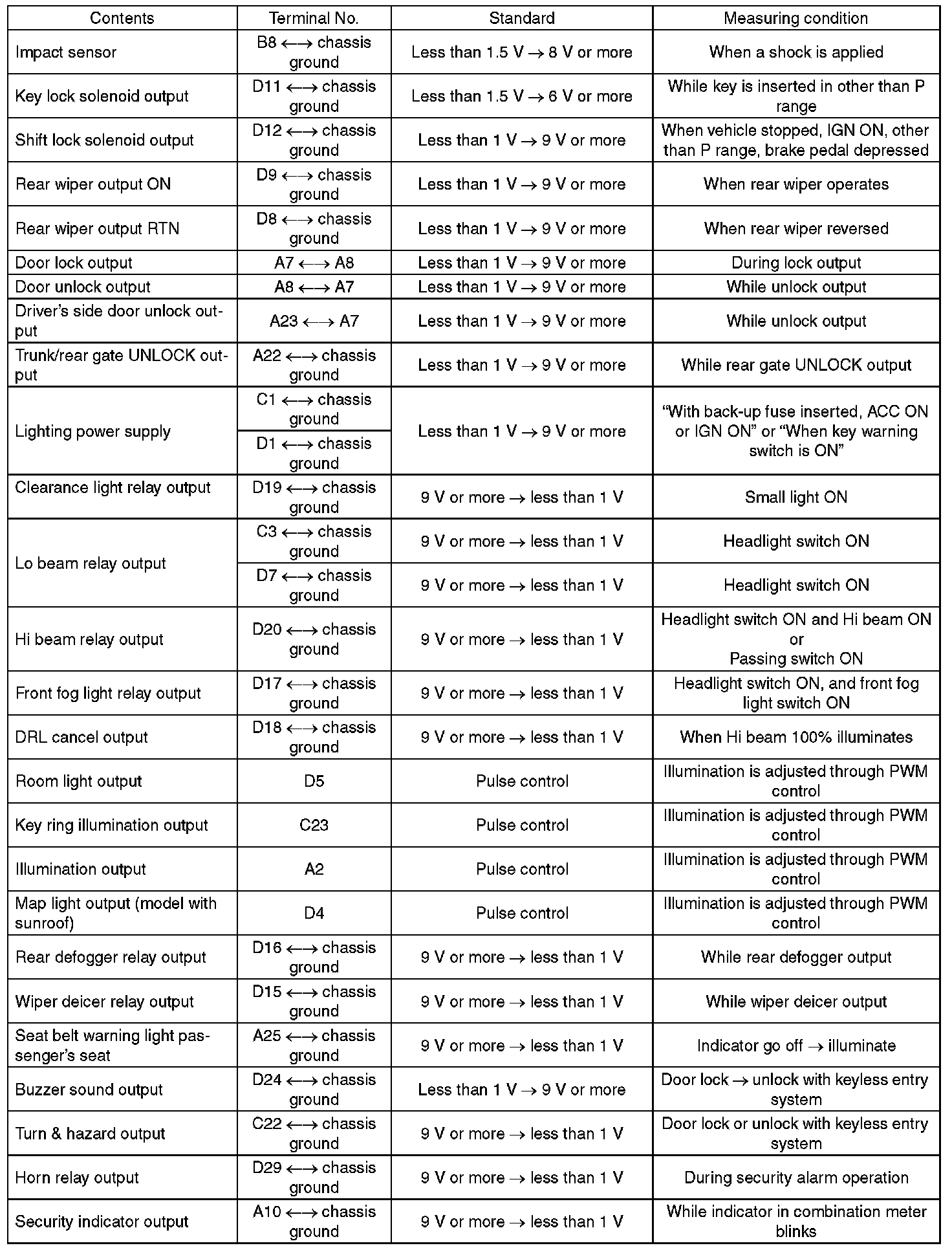

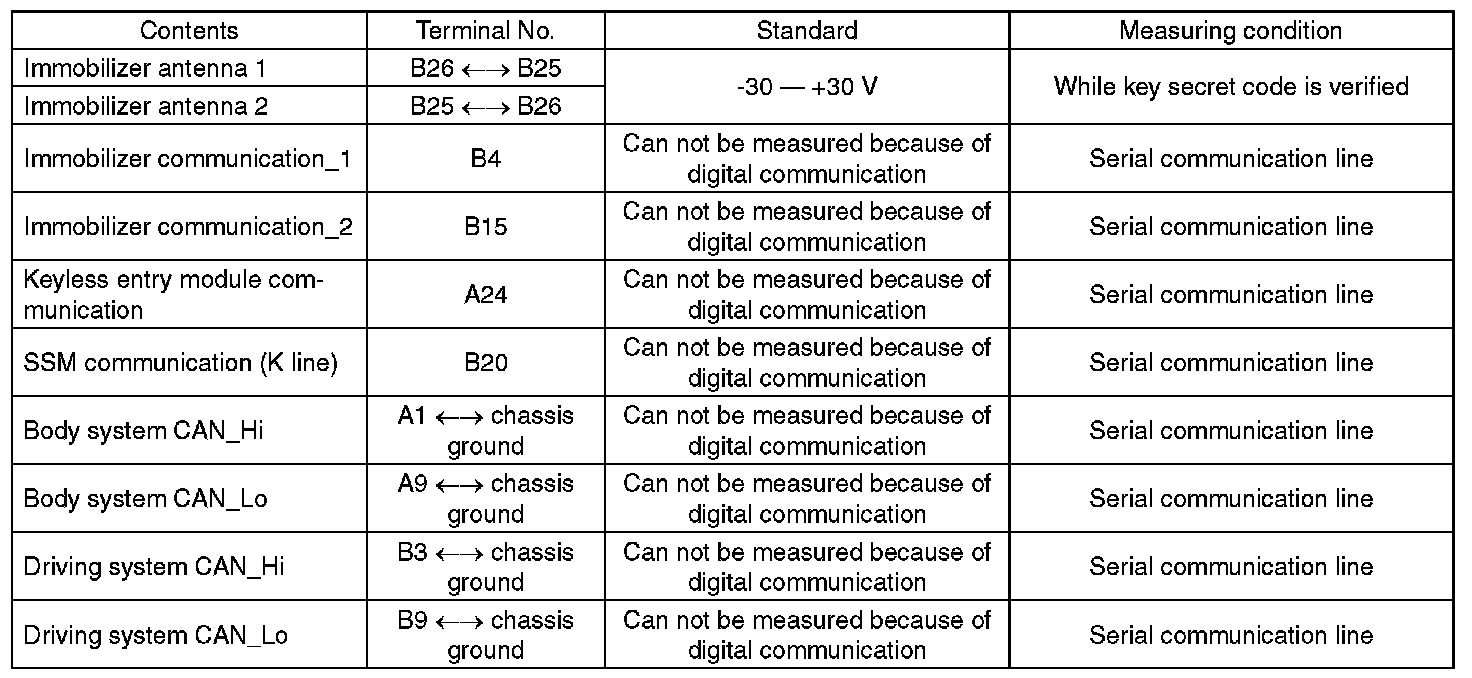

2. BODY INTEGRATED UNIT

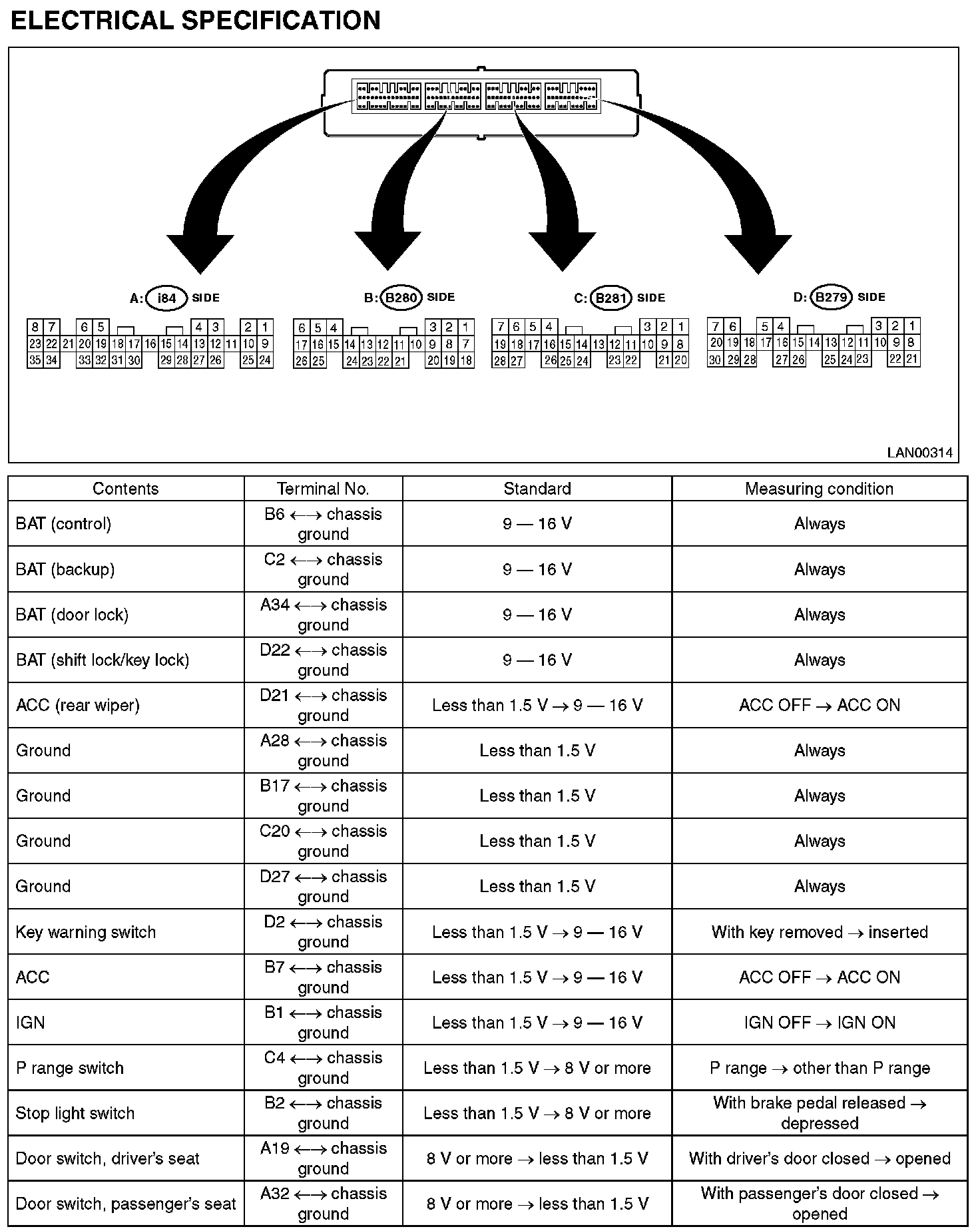

ELECTRICAL SPECIFICATION
1. KEYLESS ENTRY CONTROL MODULE
- Model without tire pressure monitoring system
- Model with tire pressure monitoring system
2. BODY INTEGRATED UNIT
