Non-Turbo Model
- Remove the V-belt covers.
- Remove the air intake duct (Rear). < Ref. to REMOVAL , Air Intake Duct. >

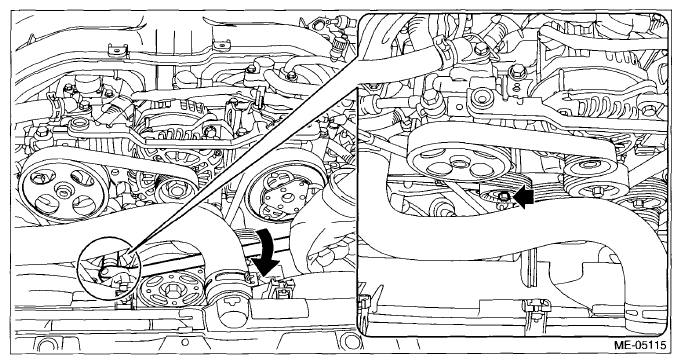

- Install the tool to belt tension adjuster assembly installation bolt.
- Rotate the tool clockwise and loosen the V-belt to remove.
- Install in the reverse order of removal.CAUTION:
- Be sure the V-belt is free from oil, grease and coolant.
- Wipe off any dust, oil or water on the groove of each pulley with cloth.
Tightening torque:
V-belt cover
13 N.m (1.3 kgf-m, 1.6 ft-lb)
