Select Lever: Removal

Set the vehicle on a lift.
Shift the select lever to "N" range.
Disconnect the ground cable from battery.
Lift up the vehicle.
Remove the rear exhaust pipe, (non-turbo model) < Ref. to REMOVAL , Rear Exhaust Pipe. >
Remove the center exhaust pipe (rear), (turbo model) < Ref. to REMOVAL , Center Exhaust Pipe. >
Remove the heat shield cover.

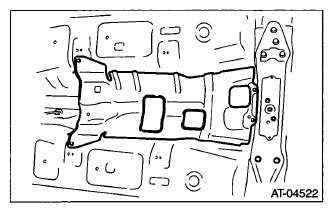

Fig 1: Identifying Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the cable from the arm COMPL.

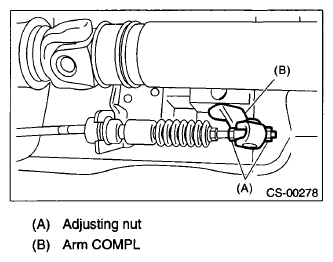

Fig 2: Identifying Adjusting Nut And Arm COMPL
Courtesy of SUBARU OF AMERICA, INC.
Raise the claw of clamp to remove the select cable.

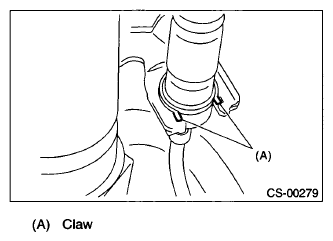

Fig 3: Identifying Claw Of Clamp
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove the grip.
Remove the parking brake lever boot.
Remove the console box. < Ref. to REMOVAL , Console Box. >
Remove the console side panel and console front panel. < Ref. to CONSOLE FRONT PANEL , REMOVAL, Center Console. >
Remove the indicator assembly.

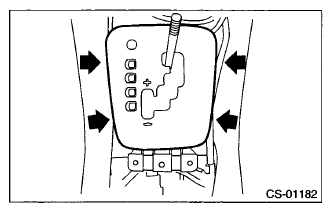

Fig 4: Locating Indicator Assembly Clips
Courtesy of SUBARU OF AMERICA, INC.
Remove the harness clips from the bracket.
Remove the blind.

Fig 5: Identifying Blind
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connectors, remove the four bolts and take out the select lever COMPL from vehicle body.

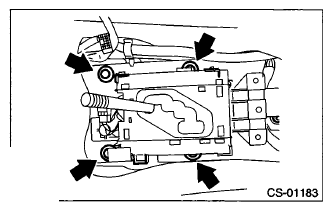

Fig 6: Locating Select Lever Bolts
Courtesy of SUBARU OF AMERICA, INC.
