Fuel Filler Pipe: Removal

WARNING: Place "NO OPEN FLAMES" signs near the working area.

CAUTION: Be careful not to spill fuel.

Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE. >
Drain fuel. < Ref. to DRAINING FUEL (WITH SUBARU SELECT MONITOR) , PROCEDURE. >
Disconnect the ground cable from battery.

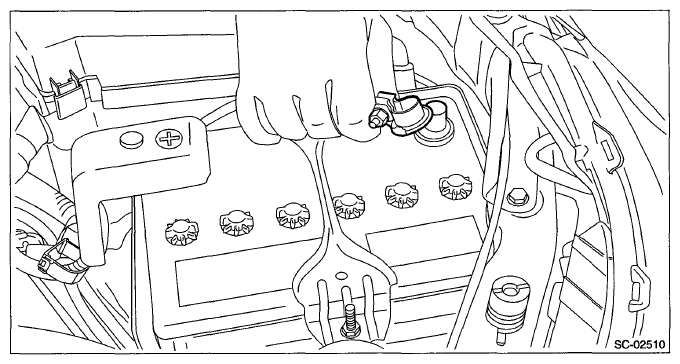

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Open the fuel filler lid and remove the fuel filler cap.
Remove the screws which secure the fuel filler ring, and then remove the fuel filler ring.

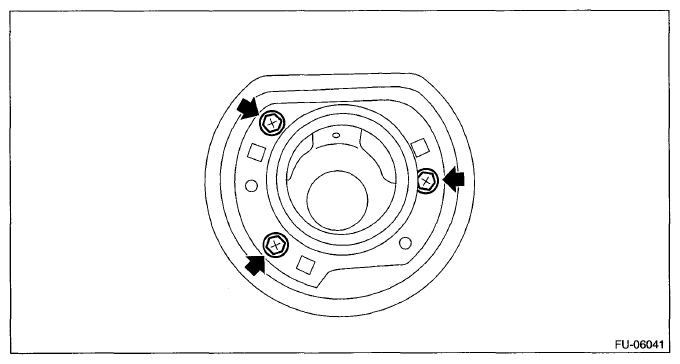

Fig 2: Locating Fuel Filler Ring Mounting Screws
Courtesy of SUBARU OF AMERICA, INC.
Remove the rear wheel RH.
Lift up the vehicle.
Remove the rear mud guard RH. < Ref. to REAR MUD GUARD , REMOVAL, Mud Guard. >
Remove the rear sub frame. < Ref. to REMOVAL , Rear Sub Frame. >
Remove the bolts and nuts which secure fuel filler pipe assembly onto the vehicle body.

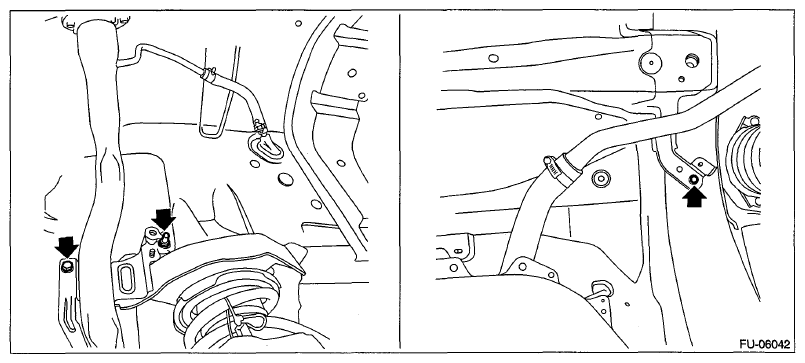

Fig 3: Locating Fuel Filler Pipe Assembly Mounting Bolts And Nuts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the fuel filler hose and air vent hose from the fuel filler pipe assembly.

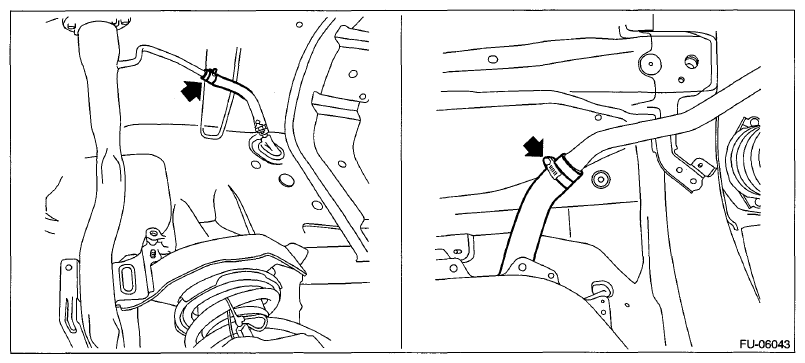

Fig 4: Locating Fuel Filler Hose And Air Vent Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel filler pipe assembly from the underside of the vehicle.
