Fuel Tank: Installation

Support the fuel tank with a transmission jack, set the fuel tank in place, and temporarily tighten the bolts of the fuel tank band.
WARNING: A helper is required to perform this work.

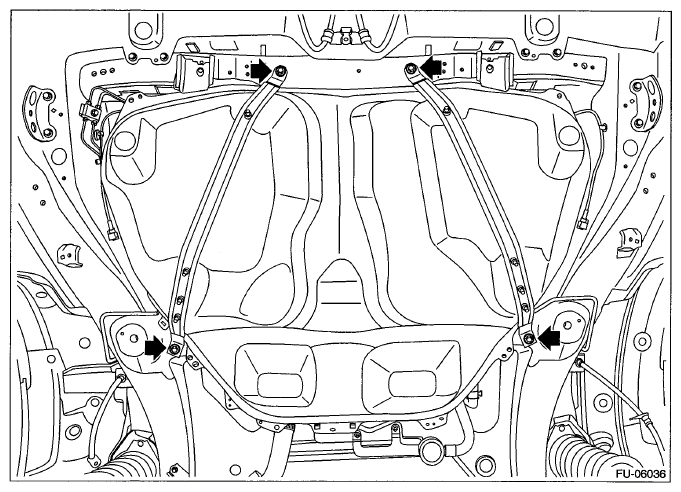

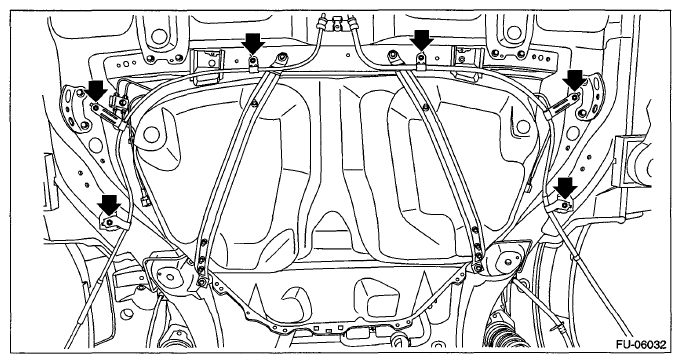

Fig 1: Locating Fuel Tank Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.

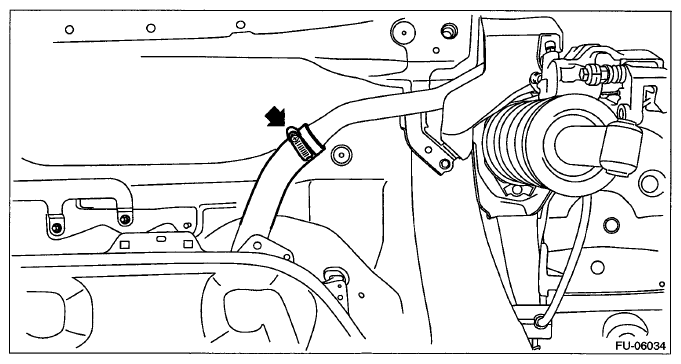

Connect the quick connector of the evaporation hose to the evaporation pipe.
CAUTION:
- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- When connecting the quick connector, securely insert the pipe all the way before locking the retainer.
- When it is difficult to lock the retainer, make sure that the pipe is securely inserted.
- Make sure that the quick connector is securely connected.

  Fig 2: Connecting Quick Connector Of Evaporation Hose To Evaporation Pipe
  Courtesy of SUBARU OF AMERICA, INC.

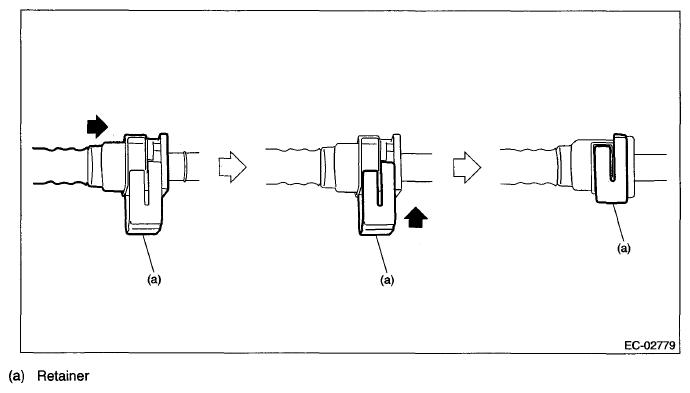

  Fig 3: Locating Retainer
  Courtesy of SUBARU OF AMERICA, INC.
Securely insert the fuel filler hose to the spool, and then install a clamp or clip as shown.
Tightening torque:

2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Fig 4: Locating Fuel Filler Hose
Courtesy of SUBARU OF AMERICA, INC.

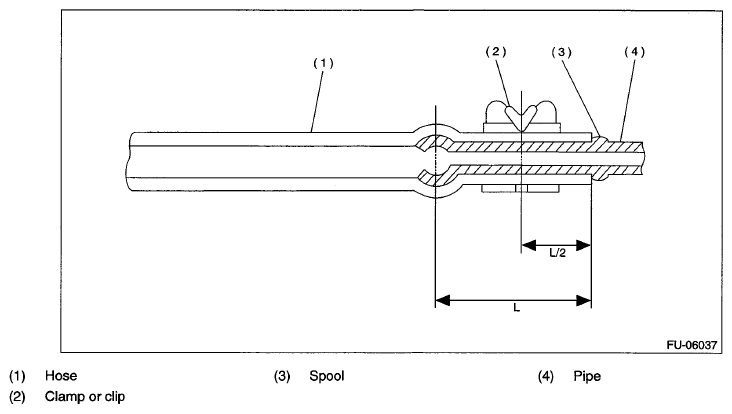

Fig 5: Hose, Spool, Clamp And Pipe
Courtesy of SUBARU OF AMERICA, INC.

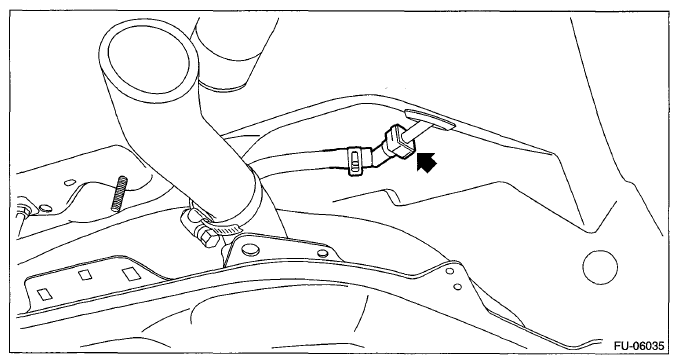

Connect the evaporation hose to fuel tank.

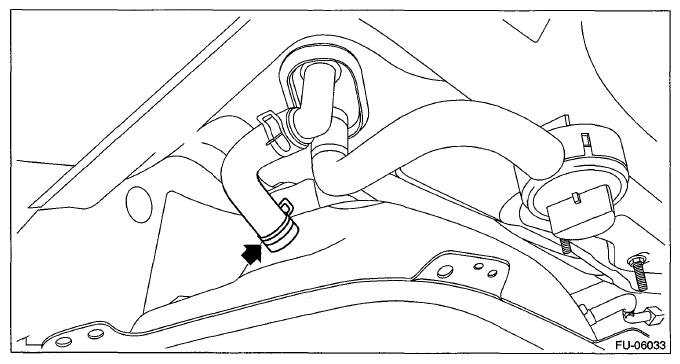

Fig 6: Locating Fuel Tank Evaporation Hose
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts of the fuel tank band in the order shown in the illustration.
Tightening torque:

33 N.m (3.4 kgf-m, 24.3 ft-lb)

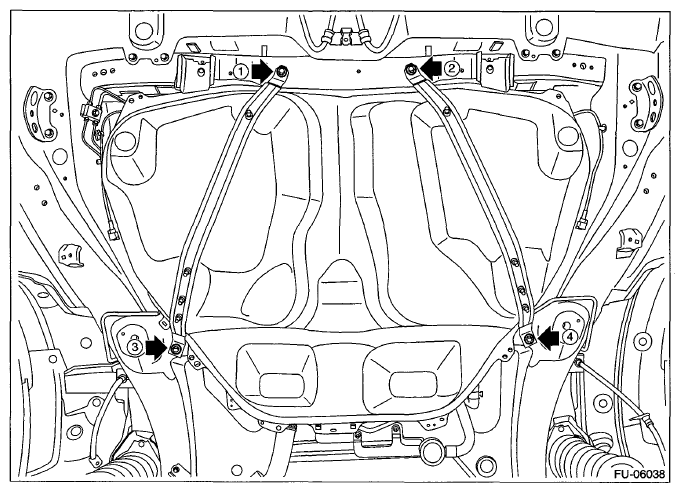

Fig 7: Fuel Tank Band Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the parking brake cable clamp to the body.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

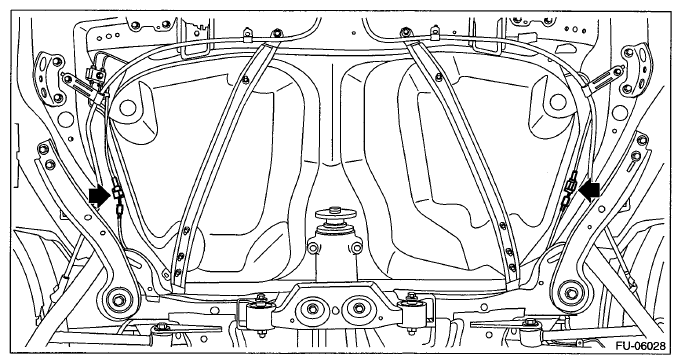

Fig 8: Locating Parking Brake Cable Clamp
Courtesy of SUBARU OF AMERICA, INC.
Install the rear suspension assembly.
WARNING: A helper is required to perform this work.
1. Support the rear suspension assembly with a transmission jack.
2. Support the rear suspension assembly and install the rear suspension assembly to the body.
  Tightening torque:

  T1: 70 N.m (7.1 kgf-m, 51.6 ft-lb)

  T2: 145 N.m (14.8 kgf-m, 106.9 ft-lb)

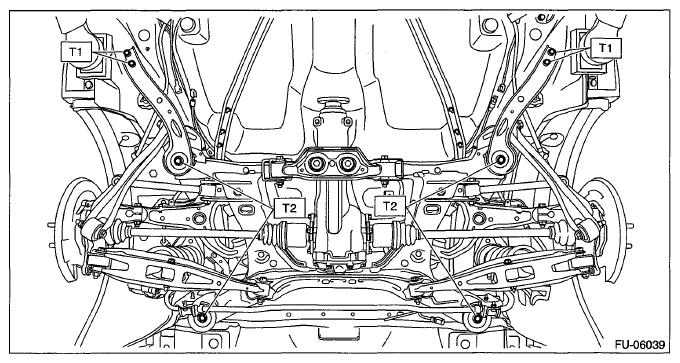

  Fig 9: Rear Suspension Assembly Mounting Bolts With Torque Specifications
  Courtesy of SUBARU OF AMERICA, INC.

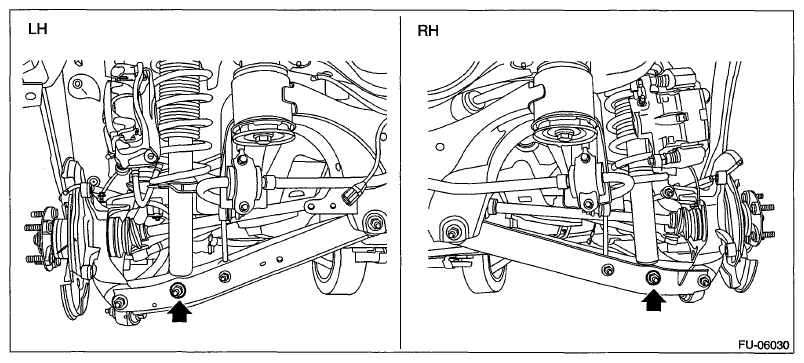

3. Install the rear shock absorber to the rear suspension arm.
NOTE: Use a new self-locking nut.

Tightening torque:

120 N.m (12.2 kgf-m, 88.5 ft-lb)

Fig 10: Locating Rear Shock Absorber Self-Locking Nut
Courtesy of SUBARU OF AMERICA, INC.
Install the rear vehicle height sensor and connect the connector (A) to the rear vehicle height sensor, (model with auto headlight beam leveler, left side only)
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

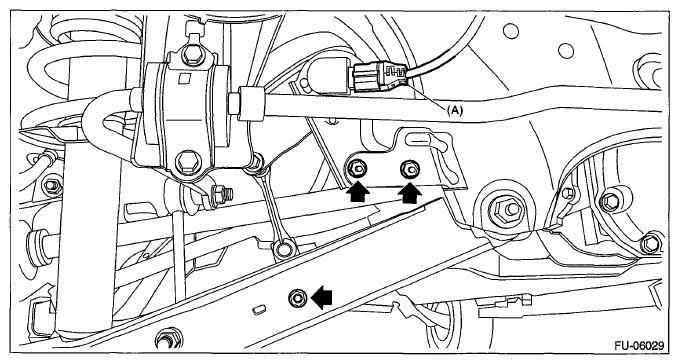

Fig 11: Locating Rear Vehicle Height Sensor Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the rear ABS wheel speed sensor.

Fig 12: Locating Rear ABS Wheel Speed Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the heat shield cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Install the fuel tank protector.
NOTE: Use a new self-locking nut.

Tightening torque:

Nut: 9 N.m (0.9 kgf-m, 6.6 ft-lb)

Bolt: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

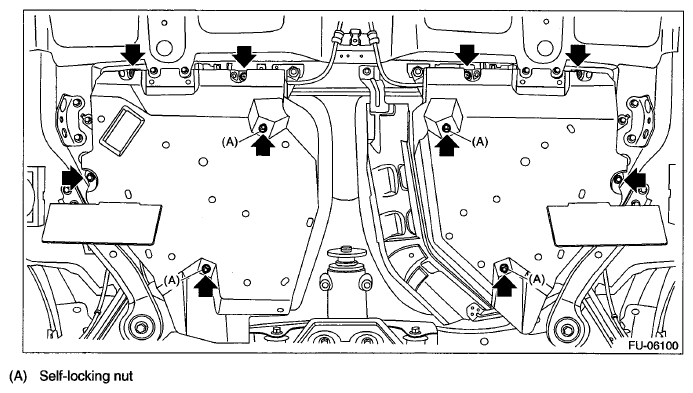

Fig 13: Locating Fuel Tank Protector Mounting Nuts
Courtesy of SUBARU OF AMERICA, INC.
Install the propeller shaft. < Ref. to INSTALLATION , Propeller Shaft. >
Install the rear exhaust pipe and muffler. < Ref. to INSTALLATION , Rear Exhaust Pipe. > < Ref. to INSTALLATION , Muffler. >
Lower the vehicle.
Connect the parking brake cable to the parking brake assembly. < Ref. to INSTALLATION , Parking Brake Assembly (Rear Disc Brake). >
Install the rear disc brake assembly.
Tightening torque:

66 N.m (6.7 kgf-m, 48.7 ft-lb)

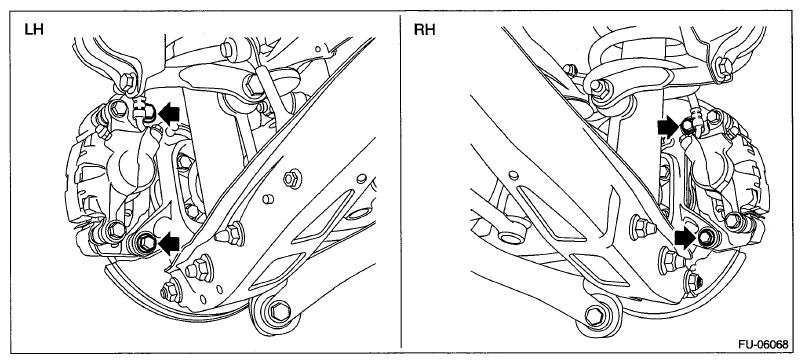

Fig 14: Locating Rear Disc Brake Assembly Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the rear brake hose bracket to the rear housing.
Tightening torque:

33 N.m (3.4 kgf-m, 24.3 ft-lb)

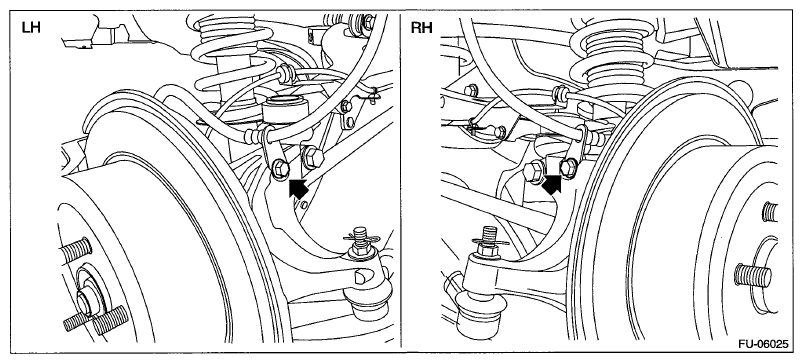

Fig 15: Locating Rear Housing Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Attach the rear ABS wheel speed sensor to the rear housing.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 16: Locating Rear ABS Wheel Speed Sensor
Courtesy of SUBARU OF AMERICA, INC.
Install the rear wheels.
Tightening torque:

100 N.m (10.2 kgf-m, 73.8 ft-lb)
Connect the quick connector of the fuel delivery tube. < Ref. to INSTALLATION , Fuel Delivery and Evaporation Lines. >

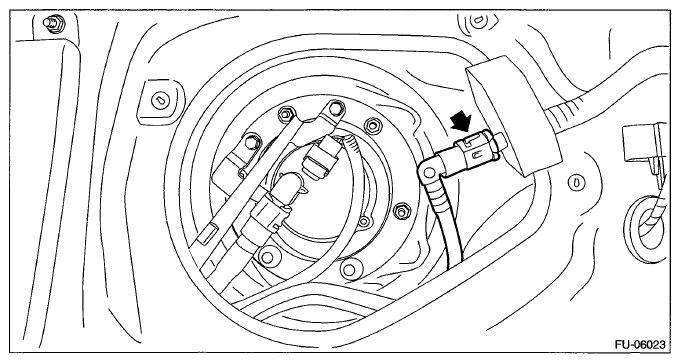

Fig 17: Locating Fuel Delivery Tube Quick Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the service hole cover of fuel sub level sensor.

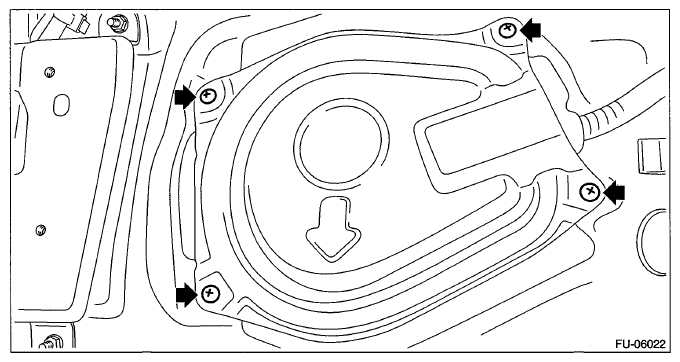

Fig 18: Locating Service Hole Cover And Mounting Screw
Courtesy of SUBARU OF AMERICA, INC.
Attach the service hole cover of the fuel pump, and attach the connector and clip.

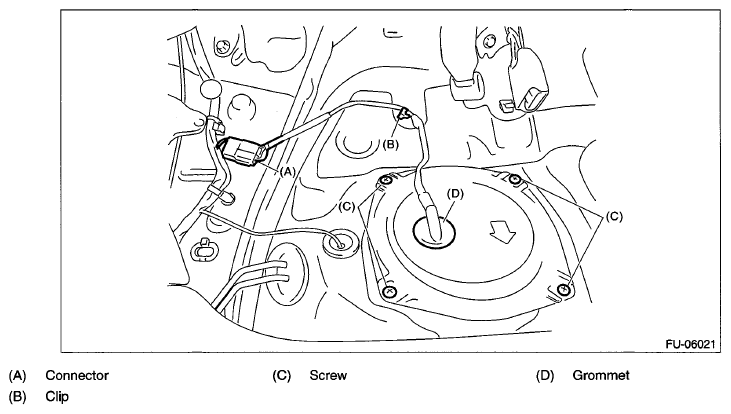

Fig 19: Fuel Pump Connector And Clip
Courtesy of SUBARU OF AMERICA, INC.
Install the rear seat cushion. < Ref. to INSTALLATION , Rear Seat. >
Connect the battery ground terminal.

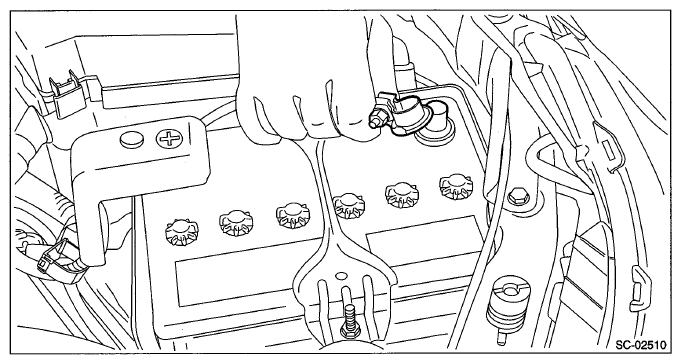

Fig 20: Connecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Inspect the wheel alignment and adjust if necessary.
Perform reinitialization of the auto headlight beam leveler system, (model with auto headlight beam leveler) < Ref. to PROCEDURE , Auto Headlight Beam Leveler System. >
