Intake Manifold: Assembly

Assemble in the reverse order of disassembly.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

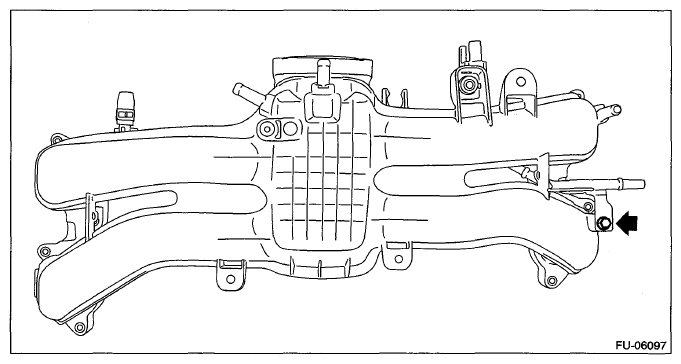

Fig 1: Locating Gasket And Mounting Bolt

Courtesy of SUBARU OF AMERICA, INC.

• Connect the quick connector as shown in the illustration.
  CAUTION:

  • Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
  • When connecting the quick connector, make sure to insert the pipe all the way in before locking the slider.
  • When it is difficult to lock the slider, check that the pipe is fully inserted.
  • Make sure that the quick connector is securely connected.

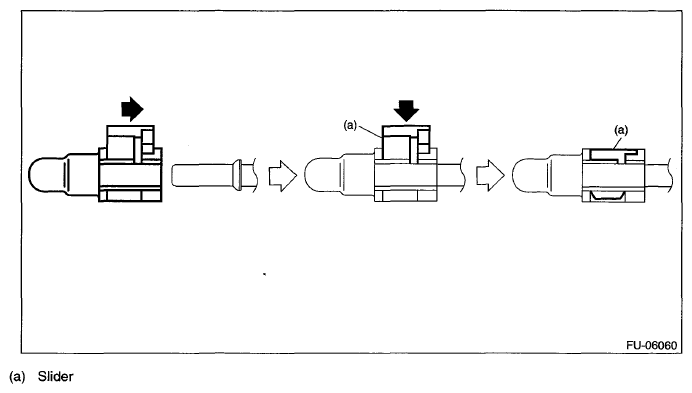

    Fig 2: Connecting Quick Connector

    Courtesy of SUBARU OF AMERICA, INC.

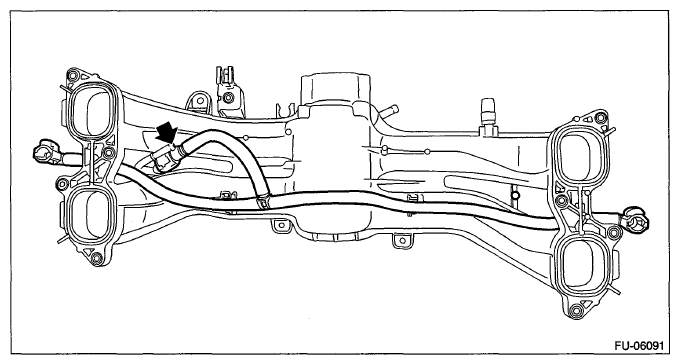

    Fig 3: Locating Fuel Delivery Pipe

    Courtesy of SUBARU OF AMERICA, INC.
    NOTE: Temporarily install the EGR pipe, and tighten it when installing the intake manifold.

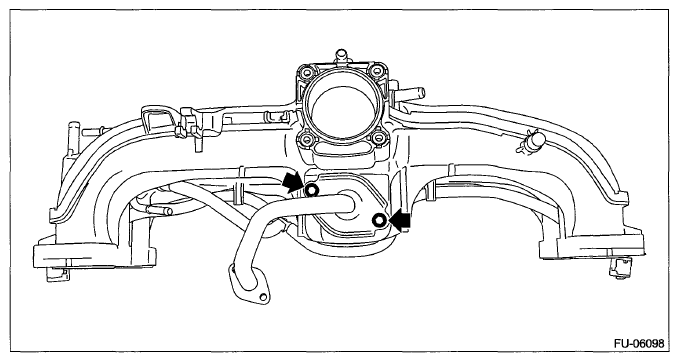

    Fig 4: Locating Intake Manifold Mounting Bolts

    Courtesy of SUBARU OF AMERICA, INC.
