Intake Manifold: Disassembly

Remove the throttle body. < Ref. to REMOVAL , Throttle Body. >
Remove the purge control solenoid valve. < Ref. to REMOVAL , Purge Control Solenoid Valve. >
Remove the manifold absolute pressure sensor. < Ref. to REMOVAL , Manifold Absolute Pressure Sensor. >

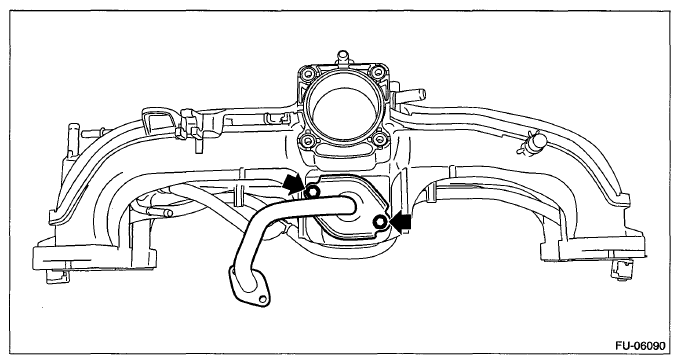

Remove the EGR pipe.

Fig 1: Locating Purge Control Solenoid Valve Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel delivery pipes.
NOTE: Disconnect the quick connector as shown in the illustration.

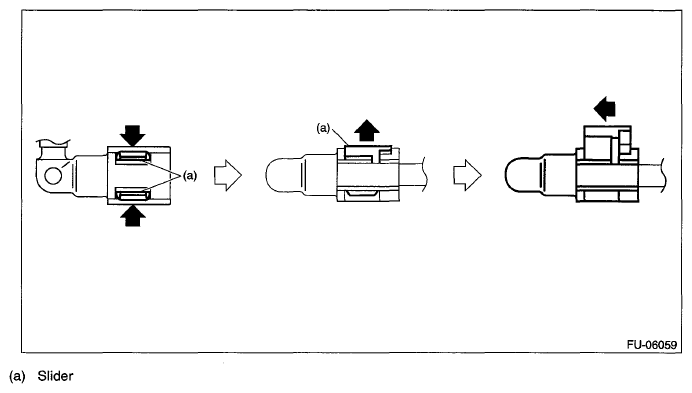

Fig 2: Disconnecting Quick Connector
Courtesy of SUBARU OF AMERICA, INC.

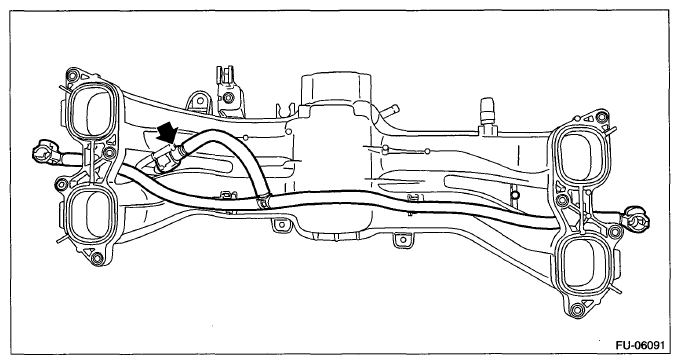

Fig 3: Locating Fuel Delivery Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel pipe and cap.

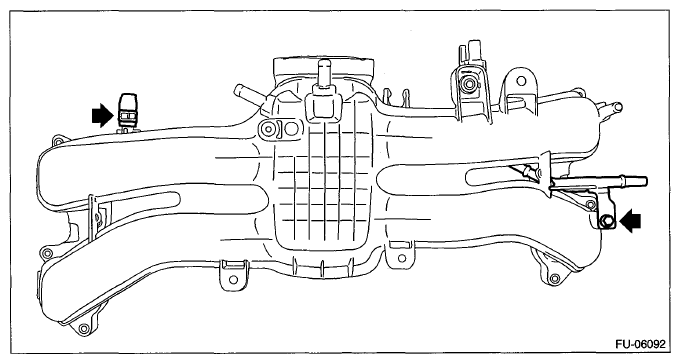

Fig 4: Locating Fuel Pipe And Cap
Courtesy of SUBARU OF AMERICA, INC.
