Oil Control Valve: Inspection

  1. Check that the oil control solenoid has no deformation, cracks or other damages.
  2. Measure the resistance between the oil control solenoid terminals.

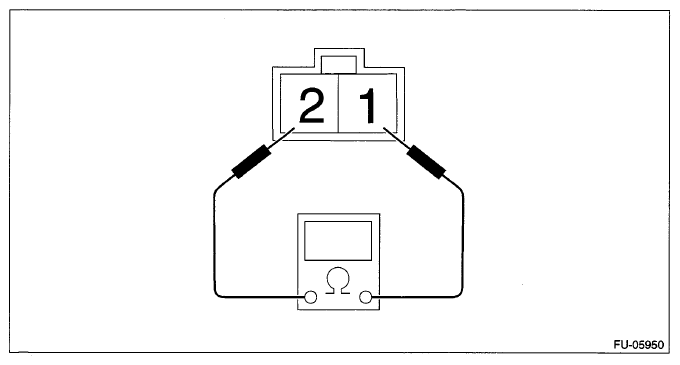

    Fig 1: Measuring Resistance Between Oil Control Solenoid Terminals
    G07664728Courtesy of SUBARU OF AMERICA, INC.
    OIL CONTROL SOLENOID TERMINALS REFERENCE CHART

    Terminal No. Standard
    1 and 2 7.25±0.4 Ω (when 20°C (68°F))
