Oil Control Valve: Removal

Disconnect the ground cable from battery.

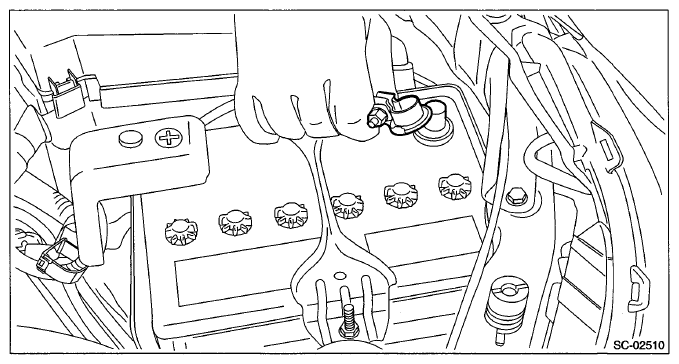

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake duct (Rear). (RH side only) < Ref. to REMOVAL , Air Intake Duct. >
Remove the reservoir tank. (LH side only) < Ref. to REMOVAL , Reservoir Tank. >
Disconnect the connector (A) from the oil control solenoid, and remove the oil control solenoid from the chain cover.
- RH side

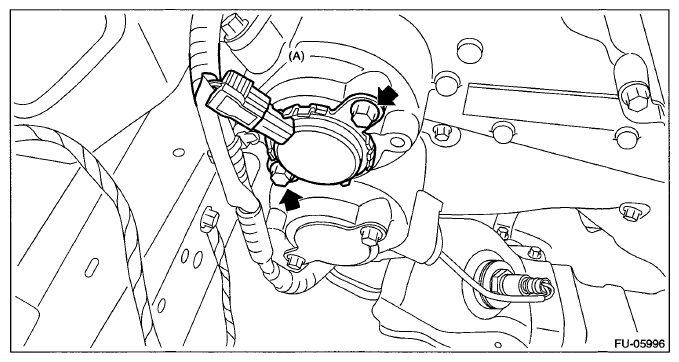

  Fig 2: Locating Oil Control Solenoid Mounting Bolt
  Courtesy of SUBARU OF AMERICA, INC.
- LH side

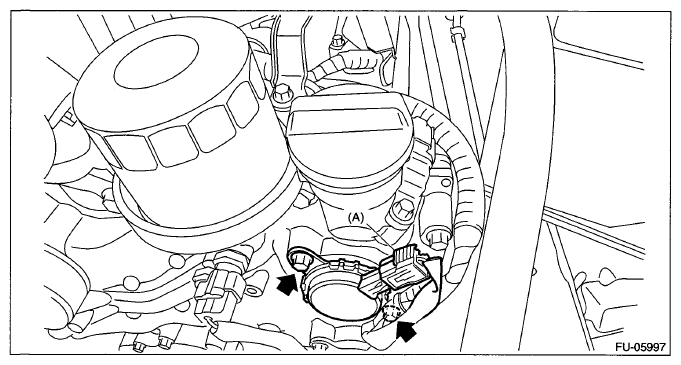

  Fig 3: Locating Oil Control Solenoid Mounting Bolt
  Courtesy of SUBARU OF AMERICA, INC.
