Tumble Generator Valve Assembly: Disassembly

  1. Remove the tumble generator valve actuator from the tumble generator valve.
    • LH side

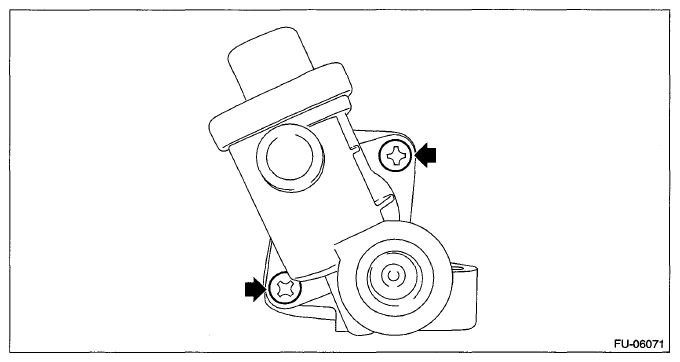

      Fig 1: Locating Tumble Generator Valve Actuator Mounting Screws (LH)
      G07664759Courtesy of SUBARU OF AMERICA, INC.
    • RH side

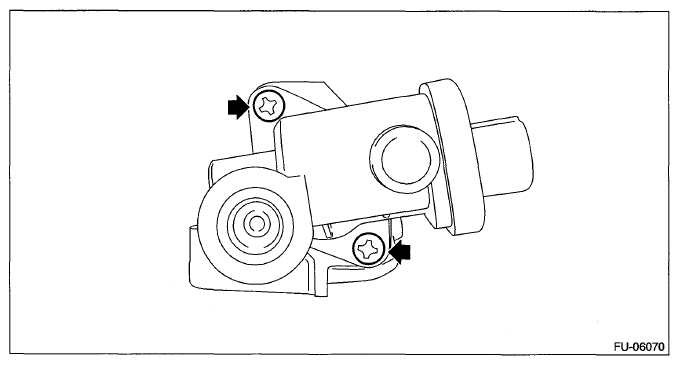

      Fig 2: Locating Tumble Generator Valve Actuator Mounting Screws (RH)
      G07664760Courtesy of SUBARU OF AMERICA, INC.
