Fuel Damper: Removal

WARNING: Place "NO OPEN FLAMES" signs near the working area.
CAUTION:
  • Be careful not to spill fuel.
  • Catch the fuel from hoses using a container or cloth.
  1. Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
  2. Disconnect the fuel delivery hose (A) and fuel return hose (B) from the fuel damper, and remove the fuel damper.
    NOTE: Be careful not to confuse the delivery side with the return side of the fuel damper.

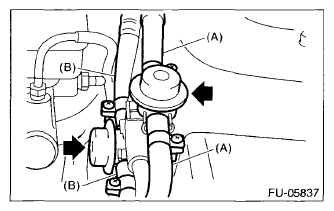

    Fig 1: Identifying Fuel Delivery Hose And Fuel Return Hose
    G07670613Courtesy of SUBARU OF AMERICA, INC.
