Fuel Filler Pipe: Disassembly

  1. Remove the shut valve from the fuel filler pipe. < Ref. to REMOVAL , Shut Valve. >
  2. Remove the evaporation pipe from the fuel filler pipe.

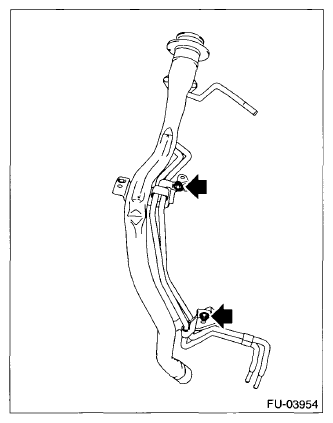

    Fig 1: Locating Evaporation Pipe From Fuel Filler Pipe Bolts And Nuts
    G07670576Courtesy of SUBARU OF AMERICA, INC.
