Fuel Injector: Inspection
- Check that the fuel injector has no deformation, cracks or other damages.

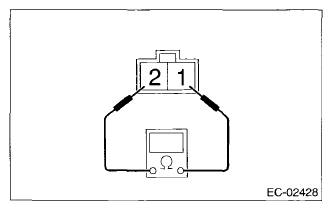

- Measure the resistance between fuel injector terminals.
Courtesy of SUBARU OF AMERICA, INC.
RESISTANCE REFERENCE CHART
| Terminal No. |
Standard |
| 1 and 2 |
Approx. 12.0 Ω (when 20°C (68°F)) |
