Fuel Pump: Inspection

  1. Check that the fuel pump has no deformation, cracks or other damages.
  2. Connect battery positive terminal to terminal No. 5 and battery ground terminal to terminal No. 6, and inspect the fuel pump operation.
    WARNING:
    • Wipe off fuel completely.
    • Keep the battery as far apart from fuel pump as possible.
    • Do not run the fuel pump for a long time under non-load condition.

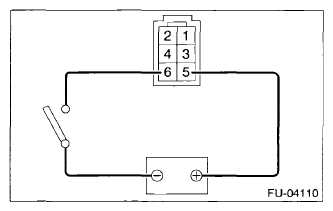

      Fig 1: Connecting Battery Positive Terminal To Terminal No. 5 And Battery Ground Terminal To Terminal No. 6
      G07670583Courtesy of SUBARU OF AMERICA, INC.
