Fuel Line

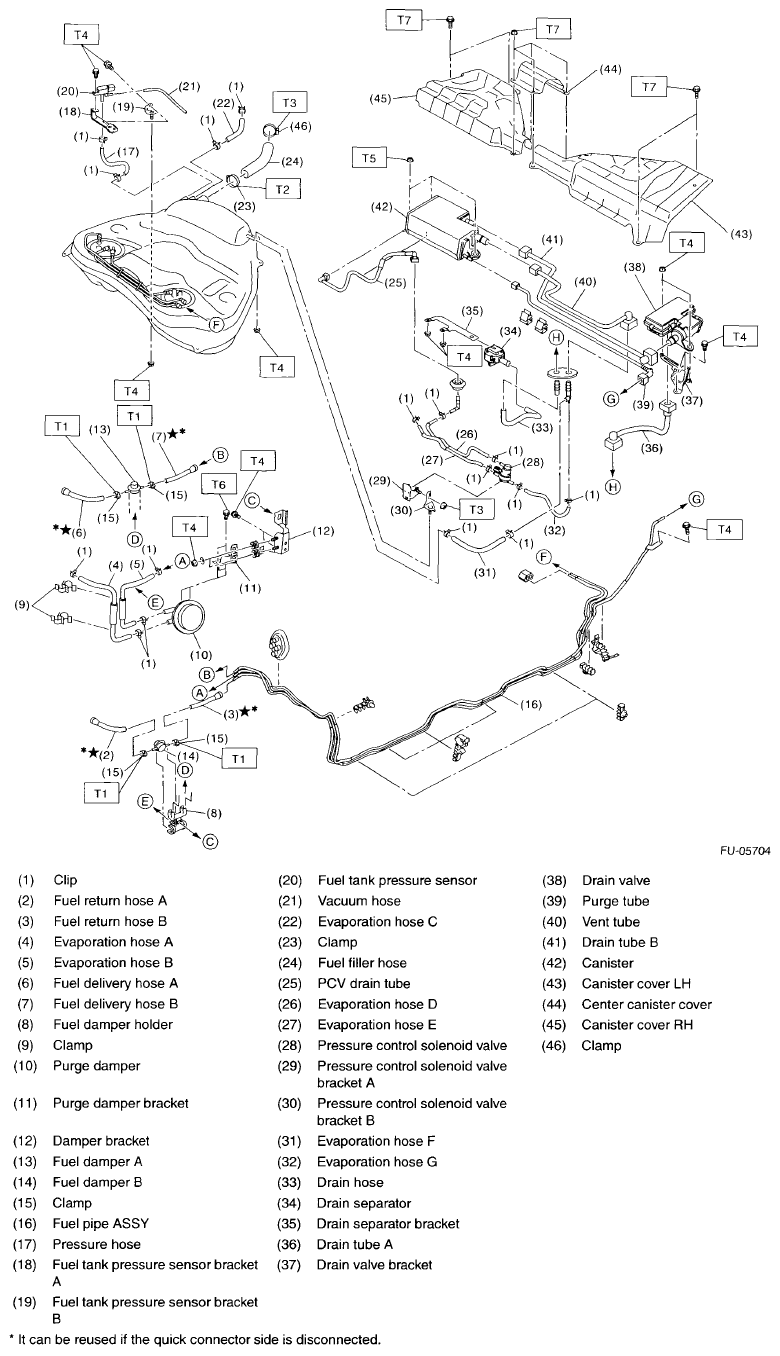

Fig 1: Exploded View Of Fuel Line

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1.25 (0.1, 0.9)

T2: 2 (0.2, 1.5)

T3: 2.5 (0.3, 1.8)

T4: 7.5 (0.8, 5.5)

T5: 8 (0.8, 5.9)

T6: 13 (1.3, 9.6)

T7: 18 (1.8, 13.3)
