Intake Manifold: Disassembly

Remove the fuel pipe protector RH from the intake manifold.

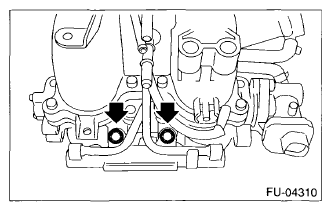

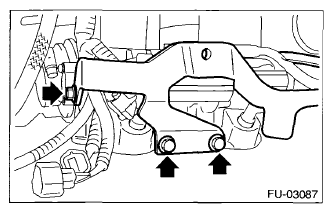

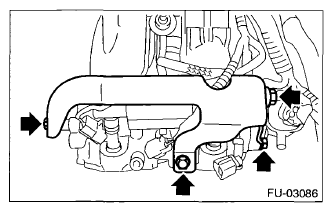

Fig 1: Locating Bolts And Fuel Pipe Protector RH From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Remove the engine ground terminal from the fuel pipe protector LH and remove the fuel pipe protector LH from the intake manifold.

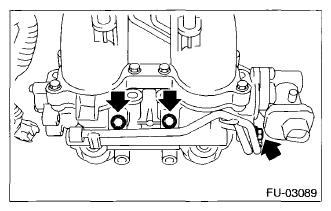

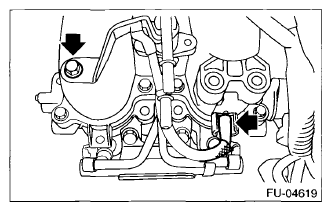

Fig 2: Locating Bolts And Engine Ground Terminal From Fuel Pipe Protector LH
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the vacuum hose (A) from intake manifold.
Disconnect the vacuum hose (B) and the connector (C) from the fuel pipe, and remove the purge control solenoid valve 1 from the intake manifold.

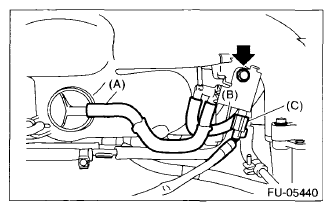

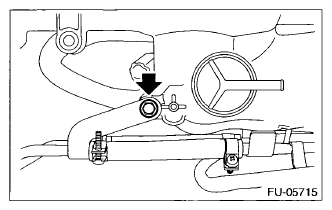

Fig 3: Identifying Vacuum Hose Connector And Fuel Pipe
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the filter assembly.

Fig 4: Identifying Filter Assembly
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the wastegate control solenoid valve and the manifold absolute pressure sensor, and remove the solenoid valve bracket assembly from the intake manifold.

Fig 5: Locating Connector From Wastegate Control Solenoid Valve And Manifold Absolute Pressure Sensor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the purge control solenoid valve 2, and disconnect the vacuum hose from the intake duct and the fuel pipe.
Disconnect the connectors from the throttle position sensor.

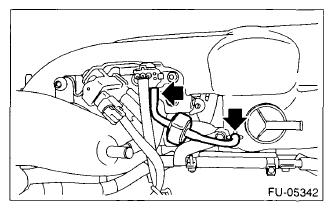

Fig 6: Locating Throttle Position Sensor Connectors
Courtesy of SUBARU OF AMERICA, INC.
Remove the throttle body from the intake manifold.

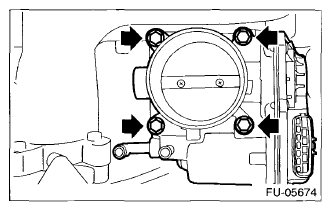

Fig 7: Locating Bolts And Throttle Body From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the fuel injector and tumble generator valve assembly.

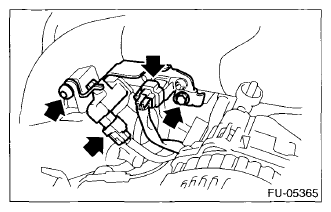

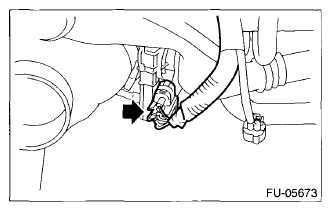

Fig 8: Locating Connector From Fuel Injector And Tumble Generator Valve Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the PCV pipe (A), harness assembly (B), intake duct (C), brake booster vacuum hose (D) and vacuum hose (E) from the intake manifold.

Fig 9: Identifying PCV Pipe, Harness Assembly, Intake Duct, Brake Booster Vacuum Hose, Vacuum Hose And Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which secures the fuel injector pipe LH onto the intake manifold, and disconnect the pressure regulator vacuum hose from the intake manifold.

Fig 10: Locating Bolt And Fuel Injector Pipe LH Onto Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which hold fuel injector pipe onto intake manifold.
- RH side

  Fig 11: Locating Bolts And Fuel Injector Pipe Onto Intake Manifold (RH)
  Courtesy of SUBARU OF AMERICA, INC.
- LH side

  Fig 12: Locating Bolts And Fuel Injector Pipe Onto Intake Manifold (LH)
  Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector.
- RH side

  Fig 13: Removing Fuel Injector RH
  Courtesy of SUBARU OF AMERICA, INC.
- LH side

  Fig 14: Removing Fuel Injector LH
  Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which hold fuel pipe onto intake manifold.

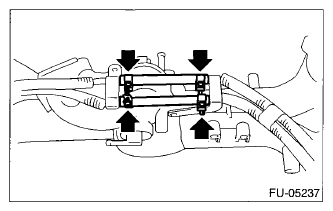

Fig 15: Locating Bolts And Fuel Pipe Onto Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which holds fuel injector pipe RH onto intake manifold.

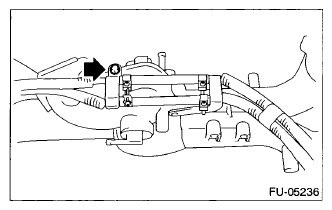

Fig 16: Locating Bolt And Fuel Injector Pipe RH Onto Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Loosen the clamp which holds the fuel hose to the fuel injector pipe RH and the fuel pipe, and then disconnect the pipe from the fuel hose.

Fig 17: Locating Clamp And Fuel Hose To Fuel Injector Pipe And Fuel Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector pipe and the fuel pipe.
Remove the tumble generator valve assembly from the intake manifold.

Fig 18: Locating Bolts And Tumble Generator Valve Assembly From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Remove the nipple from the intake manifold.

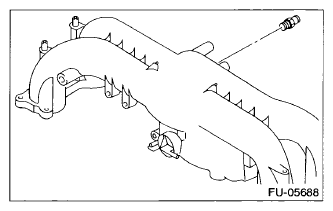

Fig 19: Identifying Nipple And Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
