Oil Flow Control Solenoid Valve: Inspection
- Check that the oil flow control solenoid valve has no deformation, cracks or other damages.

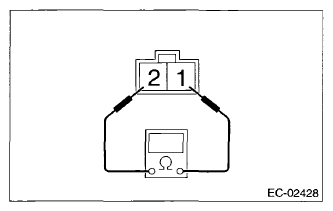

- Measure the resistance between the oil flow control solenoid valve terminals.
Courtesy of SUBARU OF AMERICA, INC.
RESISTANCE REFERENCE CHART
| Terminal No. |
Standard |
| 1 and 2 |
7.4±0.5 Ω (when 20°C (68°F)) |
